Frame channel for BetaFPV Pavo Pico II (black) | O4 Pro

BetaFPV Pavo Pico II Frame Duct (Black) | O4 Unit

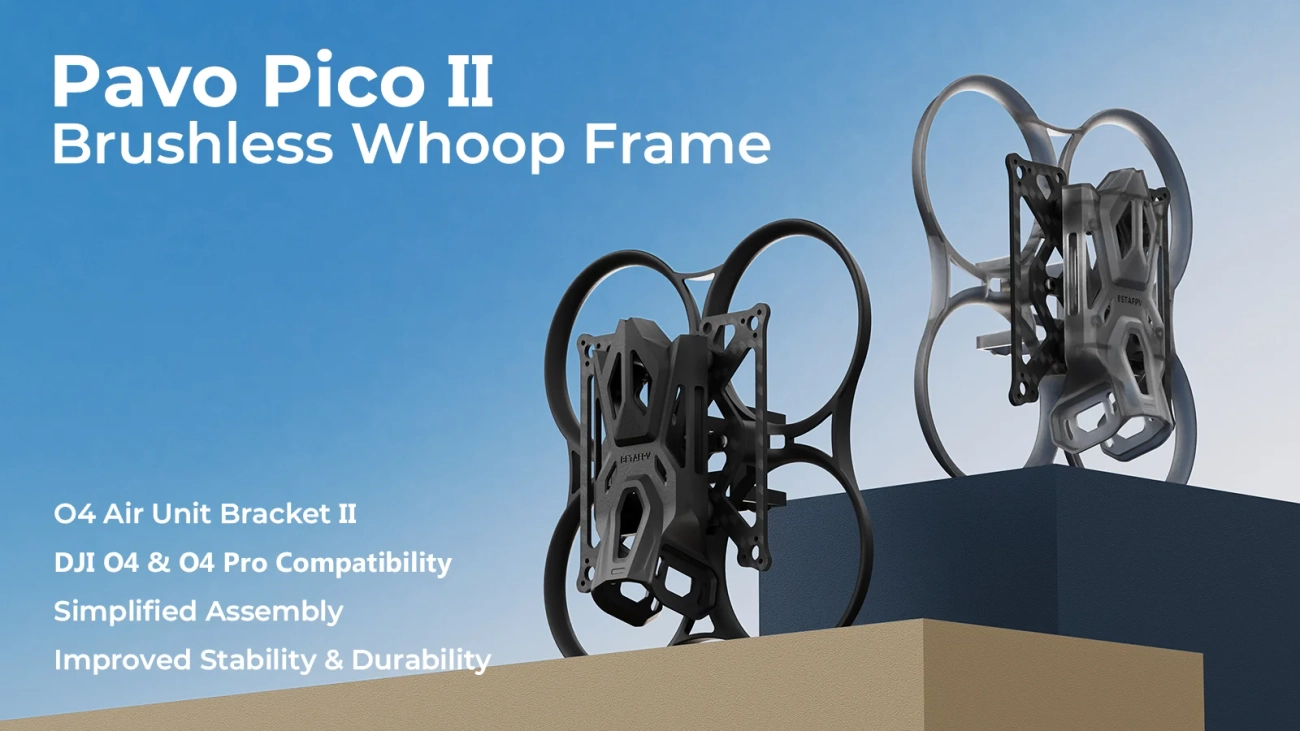

The BetaFPV Pavo Pico II Brushless Whoop Frame Duct is built for pilots who want a lightweight, durable, and easy-to-assemble platform with full DJI O4 integration. Designed for smooth HD flight footage and hassle-free installation, this frame combines a reinforced structure, a newly engineered carbon plate, and effective vibration damping to help you get a clean, reliable build with less effort.

Key Features

• Designed for DJI O4: Fully compatible with DJI O4 and O4 Pro for crisp HD video performance and future-ready flexibility.
• Anti-vibration O4 Air Unit Bracket II: Integrated mount with 4 damping balls helps reduce jello effect for smoother, more professional-looking footage.
• Quick and secure assembly: The guided frame structure and 4-screw mounting design make installation simple while maintaining excellent rigidity.
• Strong and lightweight construction: Injection-molded design combined with reinforced support points delivers outstanding durability without unnecessary weight.
• Stable carbon plate platform: The upgraded carbon plate is engineered to minimize flex and improve structural stiffness during aggressive flying.
• DIY-friendly setup: Supports additional customization with battery straps or 3D-printed parts to better match your preferred build style.

Specifications

• Product: Pavo Pico II Brushless Whoop Frame
• Material: PA12/PP
• Wheelbase: 80 mm
• Color: Black / Transparent Gray
• Carbon Plate Thickness: 1.5 mm
• Camera Mount Spacing: 14 mm
• Flight Controller Mounting: 25.5 × 25.5 mm, compatible with standard whoop FCs
• Motor Mount Pattern: 3-M1.4-φ6.6 mm
• Battery Slot Size: 16 × 12.7 mm

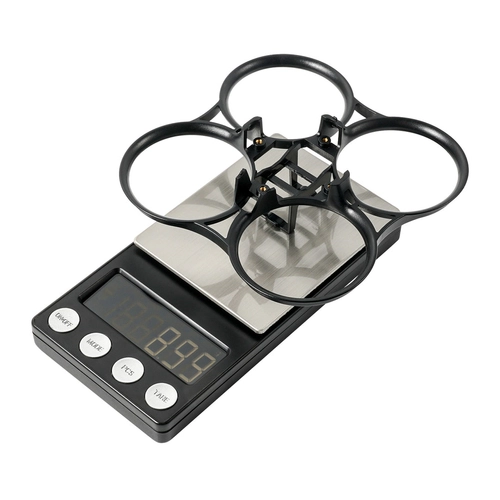

• Weight: 19 g (O4 frame), 9 g (whoop duct)

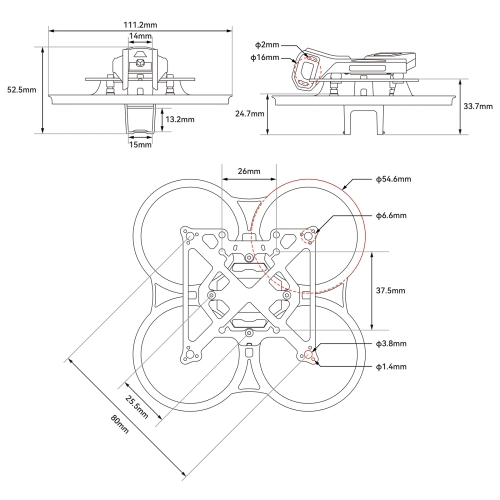

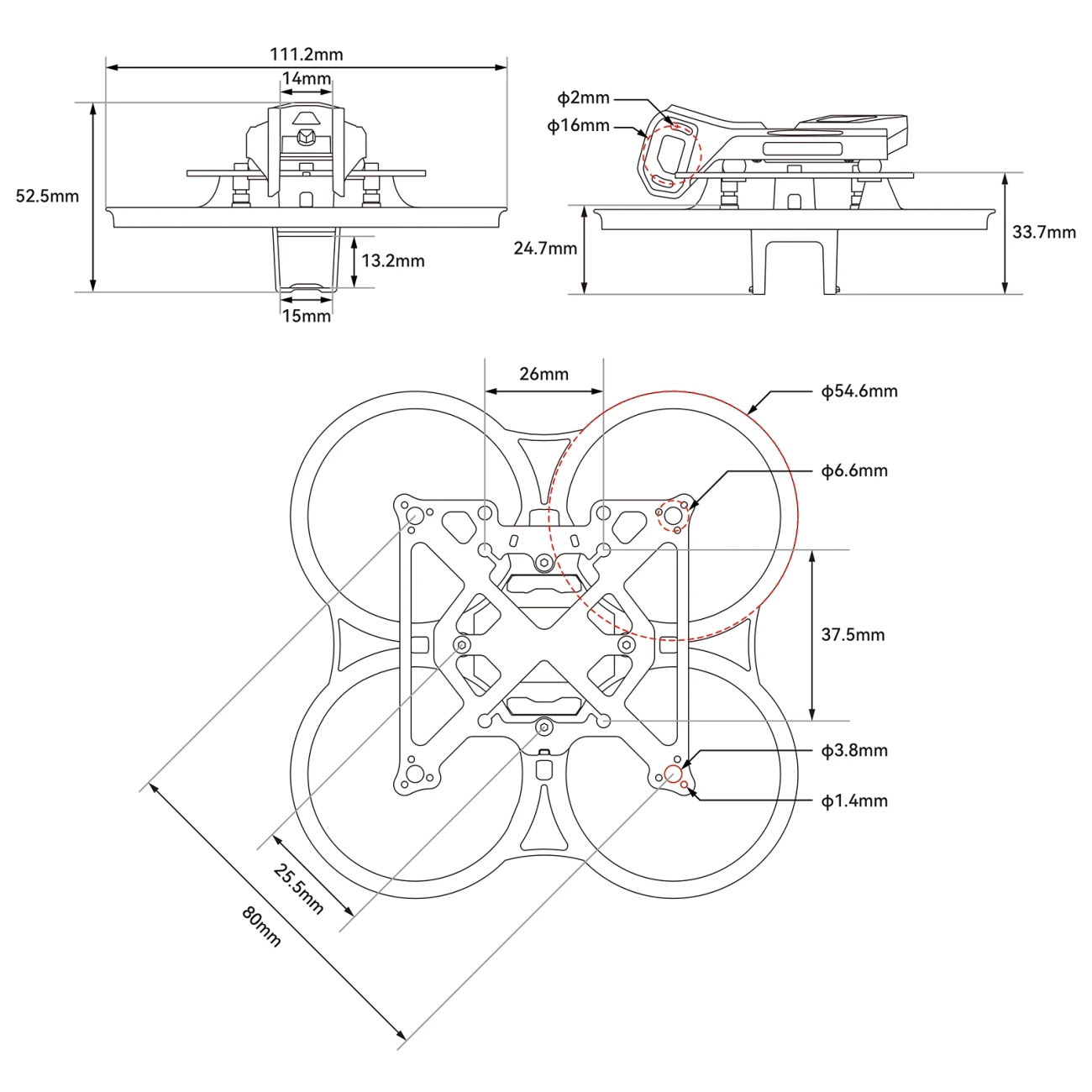

Dimensions

Built for Easy Assembly and Reliable Performance

The Pavo Pico II frame takes the hassle out of building your whoop. Thanks to integrated nuts, only four screws are needed to create a secure, impact-resistant connection. The advanced injection-molded structure works together with three support points to keep the carbon plate properly aligned, reduce flex, and deliver a rigid platform that feels solid in the air and dependable on the bench.

Ready for DJI O4 and O4 Pro

The newly redesigned carbon plate supports both DJI O4 and O4 Pro, giving your FPV setup more upgrade potential without compromising fitment. Paired with the vibration-damping O4 Bracket II, the frame is optimized for clean HD footage and a more refined flying experience.

Flexible DIY Options

For hobbyists who like to fine-tune every detail, the frame also supports wider DIY customization. Add battery straps or 3D-printed accessories to adapt the build for different battery sizes and flying preferences, making it easier to create a setup that matches your style.

Package Includes

Pavo Pico II Brushless Whoop Frame (Whoop Duct version)

• 1 × Pavo Pico II Whoop Duct
