FlyFishRC Volador II VD6 O3 Deadcat FPV T700 Frame Set (Black)

Volador II VD6 O3 Deadcat FPV T700 Frame Kit (Black)

Introducing Volador II – Enhanced 6” Frame

We are pleased to announce the second version of our 6” frame – Volador II. Based on numerous suggestions and feedback from users and testers of the V1 version (special thanks to Ryan Harrell and Kai Lin), we have implemented many optimizations to better meet the needs of FPV pilots.

The Volador II maintains high compatibility and a simple design, and the kit includes all necessary accessories to facilitate assembly and component organization.

Two Variants of the Volador II Frame

• Volador II VX – Squashed X configuration for maximum control.
• Volador II VD – Deadcat configuration, eliminating props from the camera view.

Both models are compatible with a wide range of analog and HD systems available on the market. Thanks to modular design and independently removable arms, the frame minimizes resonance, and high-quality TPU elements ensure a neat and tidy assembly.

The Volador II is the ideal choice for those who value perfect order in drone construction – it is the only frame on the market that allows for maximum aesthetic component assembly.

Improvements in Volador II

We have introduced a silicone vibration damping plate, specifically designed for the DJI O3 Air Unit camera, eliminating the "jello" effect in DVR recordings. It is also compatible with 19 mm/20 mm cameras.

The frame is made of high-strength CNC aluminum and top-quality T700 carbon fiber. All edges are smoothly finished and beveled, which prevents damage to wires and battery straps – and it looks just great!

The new non-slip battery pad features a grid for increased grip and stronger adhesive. The integrated XT60 socket at the rear of the frame protects power wires from propellers in case of a crash and makes it easy to connect the battery with one hand.

The kit includes all accessories needed for assembling analog and HD systems, and the included 12.9-grade screws with factory-applied Loctite increase the reliability of the construction.

Special attention was paid to TPU elements, which fit perfectly with the frame, increase its durability, and look amazing. The Tropical Mix version is simply out of this world!

Key Features of Volador II V2

✅ Top-class T700 carbon fiber
✅ Resonance-minimizing design
✅ New CNC aluminum side plates – better camera protection
✅ Silicone vibration dampers eliminating the "jello" effect in DJI O3 AU camera
✅ Integrated XT60 socket for greater safety and convenience
✅ High-quality TPU elements
✅ New non-slip battery pad
✅ Motor wire guards
✅ Compatibility with 19/20 mm cameras
✅ Mounting kit for analog and HD systems
✅ 12.9-grade screws with factory-applied Loctite
✅ Wide electronics compatibility

Main Changes in V2 Compared to V1

✔ The frame is now significantly lighter
✔ New CNC side plates are lighter and fit perfectly with the DJI O3 AU camera
✔ New non-slip battery pad – better grip and stronger adhesive
✔ Added "keystone" – reduces arm vibrations
✔ New bottom plate screw pad
✔ Motor wire guards – better protection
✔ Screws on the top plate are now recessed – eliminating battery damage on impact
✔ New lighter TPU arm guards – easier disassembly
✔ Two versions of TPU antenna mount included (with and without GPS holder)
✔ Adjusted thickness of the bottom and middle plate to 2.5 mm
✔ Better stress distribution at the arm mounting point
✔ New symmetrical XT60 hole – allows mounting in both orientations

Volador II VD6 Specifications

• Arm thickness: 6 mm
• Top plate thickness: 2.5 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Keystone thickness: 5 mm
• Side plate thickness: 2 mm
• CNC side plate thickness: 5 mm
• Propeller size: 6–6.1 inches
• Material: T700 Carbon Fiber
• FPV camera width: 19 mm / 20 mm

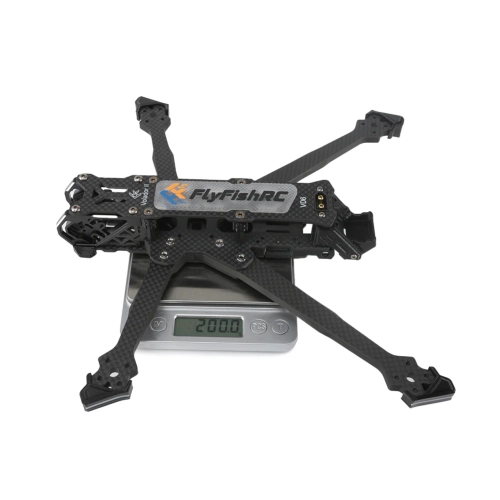

• Weight: 200 g (with TPU elements)
• Color: Black / Tropical Mix (optional)
• Overall dimensions: 259 mm × 109 mm
• Wheelbase: 260 mm
• Stack mounting: 20×20 mm / 30.5×30.5 mm (M3)
• VTX mounting: 20×20 mm / 25.5×25.5 mm (M2)
