The ECLIPSE 002SL thermal imaging camera is a versatile solution for those looking for a balance between compactness, energy efficiency and image quality. Equipped with a vanadium oxide-based sensor, it guarantees stable operation in all conditions.

The camera's resolution is 256×192 px, providing an optimal ratio of detail to compactness. It operates in the infrared range of 8-12 μm, which allows accurate recognition of temperature differences. The frame rate of up to 50 frames per second guarantees smooth video, and the signal delay does not exceed 20 ms, which allows for fast reception of real-time information.

The connection interface is analog CVBS, which allows easy integration with various video surveillance systems. The camera operates over a voltage range of 9-24 V and consumes less than 1.5 W, making it an energy-efficient solution for standalone use.

With its compact size, the ECLIPSE 002SL is ideal for FPV drones, mobile thermal imaging and video surveillance solutions, providing stable image quality and performance.

Features:

• The model has a resolution of 256x192
• Operates in a wide wavelength spectrum - 8~12μm
• Low power consumption, up to 1.5W with 9-24V power supply range
• Compact size and low weight

Specifications:

• Detection type: uncooled vanadium oxide
• Resolution: 002SL - 256x192
• Wavelength range: 002SL - 8~12μm
• Frame rate: 002SL - 50 fps
• Power consumption: <1,5 W
• Field of view: 002SL - 50°(horizontal)*37.2°(vertical)*62.3°(depth)
• Output: PAL
• Power supply voltage: 9V~24V
• Lens: 002SL - F1.0/4mm
• Delay: average delay of 20 ms
• Temperature: -20°C~60°C

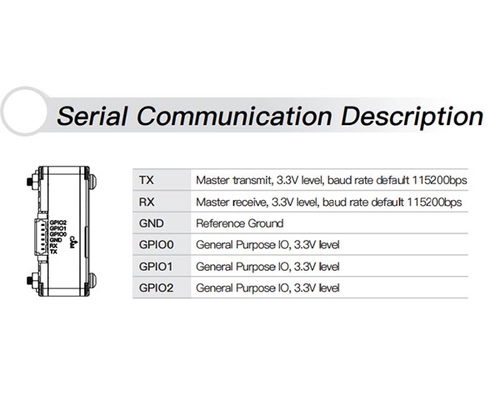

• Interface: Analog interface: CVBS
• Image quality: Allmage Enhancement

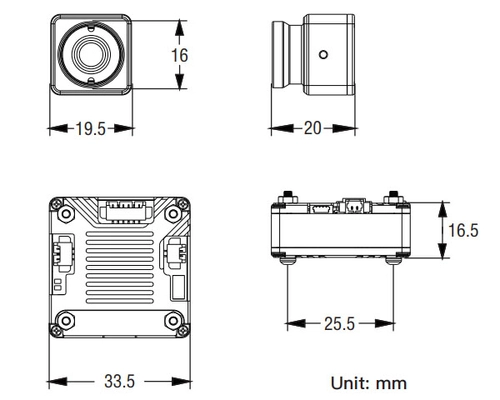

• Size: 002SL - module - 33.5*25.5*16.5mm; camera - 19.5*19.5*20mm
• Weight: 38g

Hardware:

• ECLIPSE 002SL video system (256p)
