Cushioning elements for the O4 camera by BetaFPV

BetaFPV O4 Camera Shock-Absorbing Parts

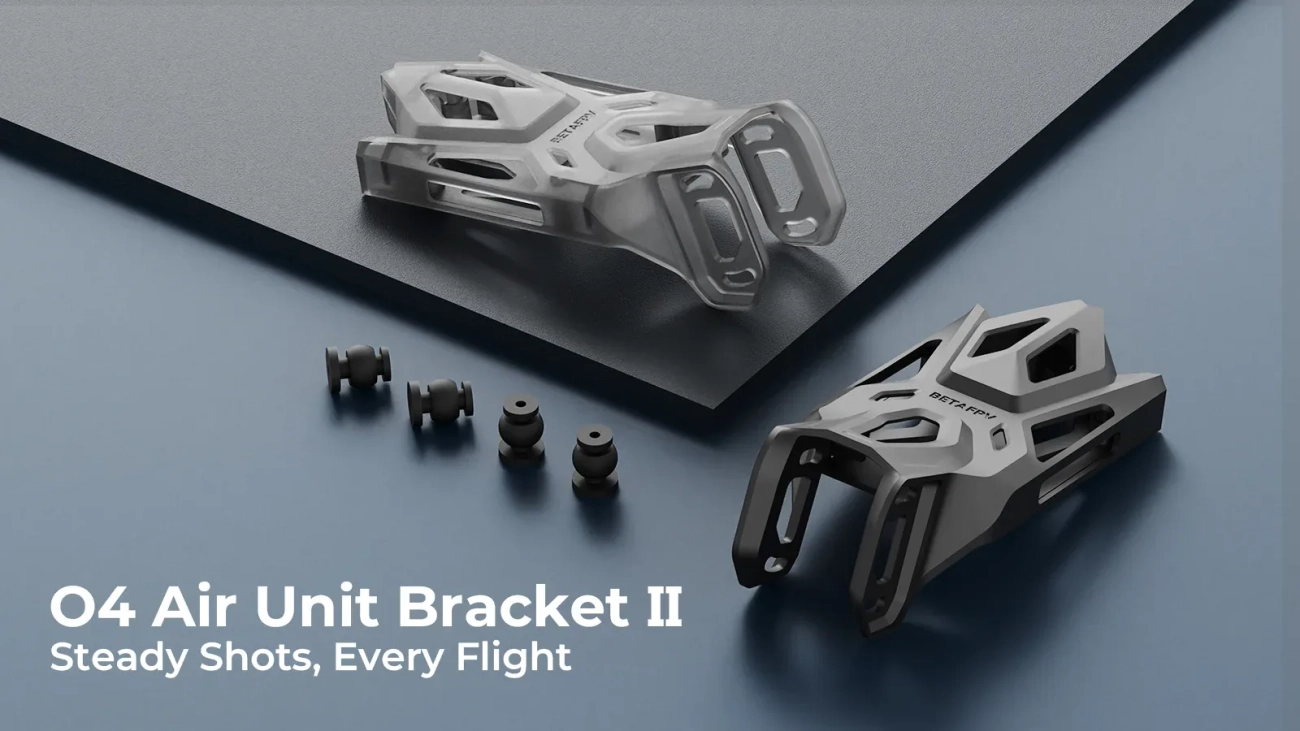

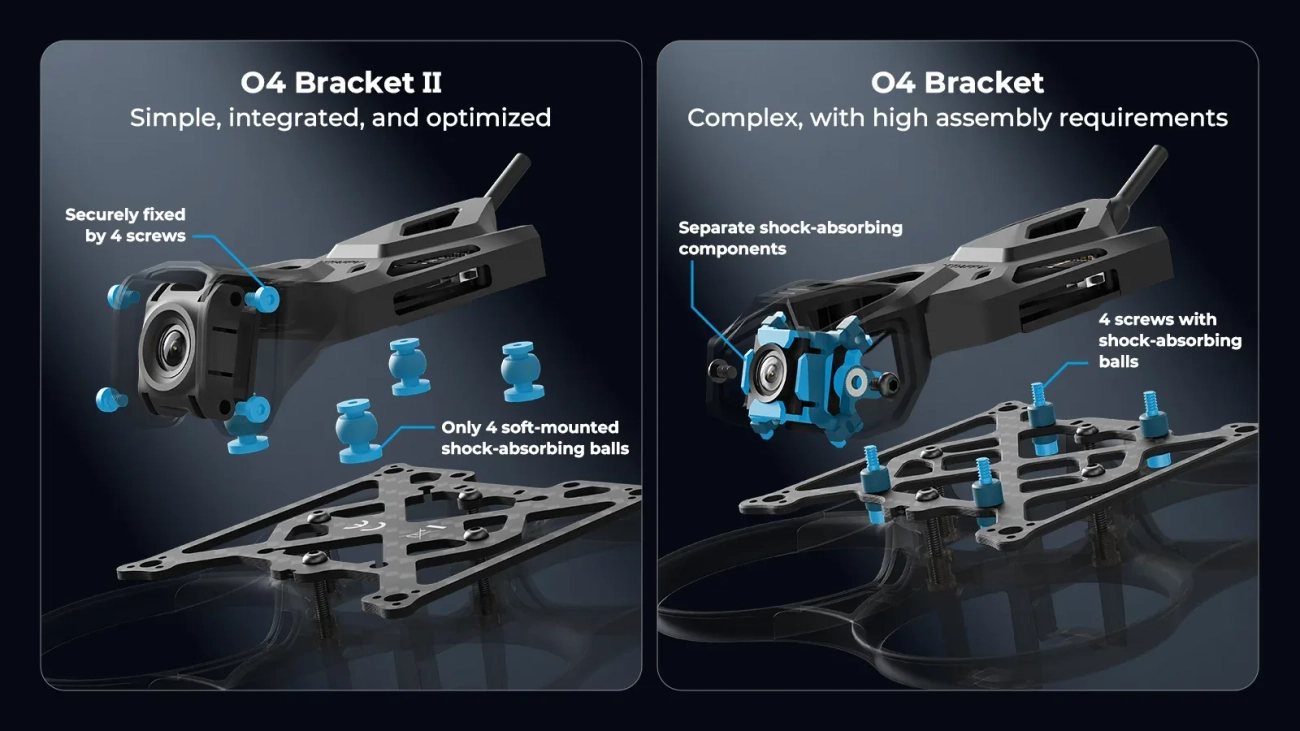

Built on a proven design, the new-generation O4 Bracket II was created with one goal in mind: ultra-smooth footage with no jello effect. While the first-generation mount used separate vibration-damping parts for the O4 camera—keeping weight low but making installation more complex—the updated version introduces a fully integrated shock-absorption system.

The camera is securely mounted with 4 screws for a solid, hassle-free fit, while 4 soft-mounted damping balls replace rigid contact points to effectively isolate vibrations. The result is a cleaner, more refined setup that improves damping performance and long-term stability, so you can focus on capturing crisp, steady FPV footage every flight.

Key Features

• Advanced vibration isolation: A fully integrated damping system with 4 soft-mounted shock-absorbing balls helps isolate the O4 camera from frame vibrations for smooth, jello-free video.
• Simple and secure installation: The camera is fixed with 4 screws, combining easy assembly with a rigid and dependable mount.
• Fine camera angle adjustment: Dual mounting holes optimize the camera’s pivot point and allow smooth, stable tilt adjustment from 5° to 35° for the perfect shot.
• Reliable digital video signal: An extended antenna locking tail with 2 screws keeps the antenna firmly in place for a stable and uninterrupted digital video connection.
• Lightweight FPV upgrade: Designed for hobby-grade FPV builds where low weight, reliable mounting, and cleaner footage all matter.

Specifications

• Product: O4 Air Unit Bracket II
• Material: PP
• Color: Black / Transparent Gray
• Weight: 4.1 g
• Compatible frame: Pavo Pico II Frame

Dimensions

In the Box

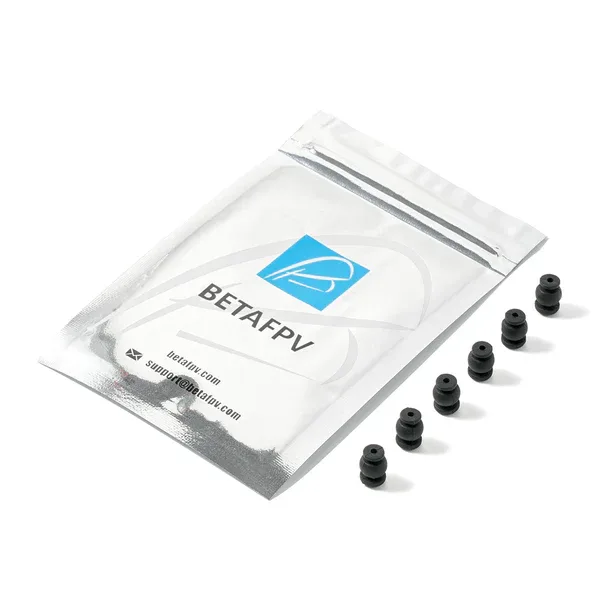

O4 Air Unit Bracket II (shock-absorbing ball version)

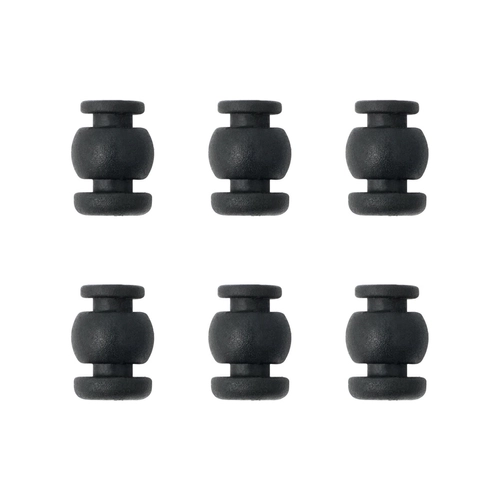

• 6 × Shock-absorbing balls for O4 Air Unit Bracket II (8 mm)
