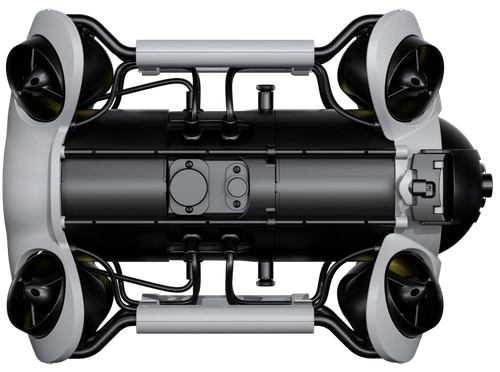

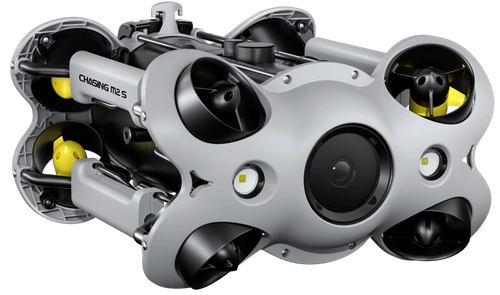

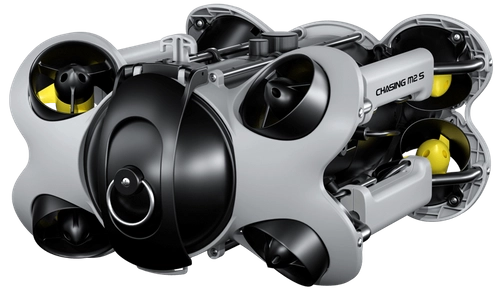

Chasing M2 S Standard Set underwater drone

Chasing M2 S Standard Set underwater drone

Chasing M2 S has 8 vector thrusters that are symmetrical and anti-stall C-Motor 3.0 engine provides stable power while the flagship sealed design guarantees underwater performance. The ROV is compact and lightweight, easy to operate, and effectively performs inspection tasks in a variety of underwater operational scenarios across a variety of industries. ROV is there portable and has compact housing . It is operated by one person, and quick implementation ensures effective operation in various scenarios.

Three mechanisms:

• C-Sense control system, flexible and stable
• A powerful operating system for all scenarios
• HD image transmission system

A symmetrical vector arrangement of eight Chasing jet engines. This adopts a design where translation and rotation are independent of each other and supports 360-degree omnidirectional movement . Intelligent control system NeptuneX is an exclusive Chasing navigation algorithm that enables more precise operation; Chasing M2 S can maintain the direction of movement even in the presence of external disturbances or difficult operating conditions.

Third generation of the engine Apex Anti-stuck C-Motor 3.0 used in Chasing M2 S uses a unique anti-stall solution and magnet protection technology, which ensures power, but also significantly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stick effect is stronger, making the device reliable to use.

Chasing M2 S weighs 4.5 kg , and the fully innovative waterproof design of the main cabin and lighting further increases the stability of underwater operations. The streamlined butterfly wing design at the front and rear increases recognition and protects the propeller. Chasing M2 S can dive to a maximum depth 100 meters , action radius 200 meters . Possibility of extending the range to 400 meters . Battery included 97.68 Wh can power up to 4 hours of work . The battery compartment is ready for use, 200 Wh backup battery is also optional to meet the needs of long-term operation.

The color restoration algorithm is based on underwater lighting, physical light path and environment, as well as visual identification and tracking system, completely improving image clarity, clarity, color layering and noise.

Specification:

Chasing M2 S Drone:

• Size: 380x267x165mm
• Weight: 4.5 kg
• Maximum depth: 100m
• Working time: 4 hours
• Battery: 97.68Wh
• Working temperature: -10℃~45℃

Remote control:

• Size: 160x155x125mm
• Weight: 685g
• Battery: 2500mAh
• Working time: ≥6H (depending on the environment)
• Wireless: Wi-Fi supported
• HDMI: Supported
• Handle Spring: Maximum support 10 inches

Camera:

• CMOS: 1/2.3
• Lens: F2.8
• Sharpness: 3.2 mm
• ISO range: 100-6400
• FOV: 150°
• Maximum resolution: 12 Meg Pixel
• Format: JPEG/DNG
• Video UHD: 3840 2160 (4K) 30fps FHD: 1920 1080 (1080p) 30/60/120fps
• Slow motion: 720p8x (240fps), 1080p4x (120fps)
• Time Lapse: 4K/1080p
• Video stream: 60M
• Video format: MP4
• SD card: 64G

LED:

• Brightness: 2*2000 Lumens
• Color temperature: 5000K~5500K
• CRI: 85
• Dimming: Three gears

Sensors:

• IMU: axial gyroscope/accelerometer/compass
• Depth sensor:＜±0.25m
• Temperature sensor:＜±2℃

Charger:

• Power: 2.9A/25.2V
• ROV charging time: 2.5H
• RC charging time: 2H

Set includes:

• ROV
• Remote control
• 200-meter tether and hand reel
• 2 spare engines
• Floodlight 2 (floodlight)
