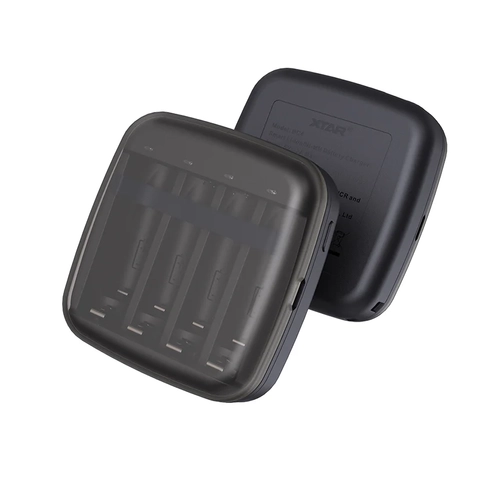

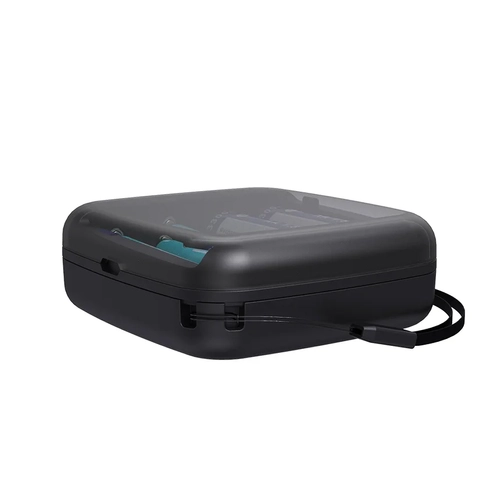

Charger for R03 / AAA and R6 / AA Li-ion 1.5V / NiMH Xtar BC4 batteries
Professional, four-channel, compact Xtar BC4 processor charger for Li-ion 1.5V and NiMH batteries.
The most important features
- processor-controlled Li-ion cell charging process: CC/CV
- NiMH charging method: 0△V and -△V
- four independent charging channels
- powered by any USB charger (recommended 2A)
- small dimensions - easy to carry
- protection: short circuit, thermal, reverse polarity
- built-in LED diode, thanks to which we can turn BC4 into a handy flashlight
- power bank function
Like every Xtara charger, the BC4 model is secured in every possible way. The most important security features it has are:
- short-circuit
- thermal
- against overcharging
- overcurrent
- against reverse polarity
Specification
Manufacturer: Xtar
Manufacturer model/code: BC4
Supported battery types
- Ni-MH batteries
- Li-ion 1.5V batteries protected
Supported battery sizes: R6 / AA , R03 / AAA
Input voltage
- 5V DC ((500 - 2100 mA))
Maximum dimensions of the charged battery (width x height) [mm]: 14 x 500
Charging method
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in the CC (basic) phase [mA]
- 500mA
Charge termination voltage
- 1.5V
Security
- Before the charger overheats
- Against overload/short circuit
- Before reverse polarity of cells
Charger operating modes
- Charging
Dimensions (width x depth x height) [mm]: 80 x 75 x 27
Weight [gram /pcs]: 55.0
Contents of the package
- BC4 charger
- USB type C cable
- bow
Warranty [months]: 24
Markings/certificates: CE marking
Specification Charger for R03 / AAA and R6 / AA Li-ion 1.5V / NiMH Xtar BC4 batteries
Brand
Xtar
Symbol
BC4
Producer code
6952918342977
Warranty
24 months
