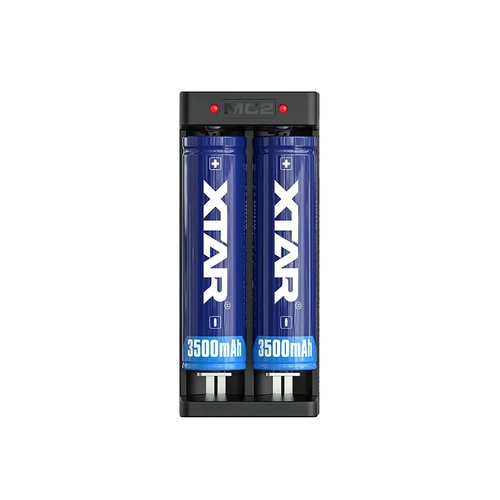

Charger for Li-ion 18650 Xtar MC2 USB-C batteries / cylindrical cells
Professional, compact Xtar MC2 USB-C processor charger for Li-ion batteries in sizes 18650 and others.
The most important features
- CPU-controlled three-stage TC/CC/CV charging process
- two independent charging channels
- powered by any USB-C charger or from a computer's USB port (min. 0.5A)
- small dimensions - easy to carry
- reactivation function for deeply discharged cells
- protection: short circuit, thermal, reverse polarity
Specification
Manufacturer: Xtar
Manufacturer model/code: MC2
Supported battery types
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
Supported battery sizes: 10440 , 14500 , 14650 , 16340 , 17500 , 17670 , 18350 , 18500 , 18700 (unprotected only) , 20700 (unprotected only) , 21700 (unprotected only) , 25500 , 26500 1 - 2 batteries, depending on size
Input voltage
- 5V (500 - 1000mA)
Maximum dimensions of the charged battery (width x height) [mm]: 26 x 70
Charging method
- Processor controlled TC/CC/CV for Li-ion
Charging current in the CC (basic) phase [mA]
- 250 or 500mA ±50mA (depending on the power source used)
Charge termination voltage
- 4.2V ±0.05V
Termination current for lithium cells [mA]: <40
Other important product features
- Reactivation of deeply discharged cells and 0V cells
Security
- Before the charger overheats
- Against overload/short circuit
- Before reverse polarity of cells
Charger operating modes
- Charging
Dimensions (width x depth x height) [mm]: 40 x 92 x 32
Weight [gram /pcs]: 42.0
Contents of the package
- MC2 charger, USB-C cable
Warranty [months]: 24
Markings/certificates: CE marking
