BetaFPV Pavo20 Pro Frame with HD VTX Mount (Black)

BetaFPV Pavo20 Pro Frame with HD VTX Mount (Black)

The BetaFPV Pavo20 Pro Brushless Whoop Frame is built for pilots who want a durable, lightweight, and camera-ready platform for cinematic FPV flying. Designed for a 2.2-inch DJI O3 cinewhoop, it also offers full compatibility with Caddx Vista and RunCam Link, making it a versatile choice for hobbyists building or upgrading an HD FPV setup.

With a 93.7 mm wheelbase and a reinforced PA12/PP construction, this frame is made to handle demanding flights and hard knocks. The thickened whoop duct design improves impact resistance, while its aerodynamic layout helps boost thrust by 8–11%. Paired with a powerful 3S setup, the Pavo20 Pro delivers confident punch, smooth handling, and excellent overall flight performance.

Built with HD footage in mind, the frame features fixed camera mounting holes, including two new positions optimized for wide-angle recording with the DJI O3. This helps reduce side plate shadows in the frame and gives you cleaner, more immersive footage. The side camera panels also help protect the lens and support vertical ND filter installation, which is especially useful in changing light conditions.

The classic Pavo Series rubber damping system helps minimize unwanted vibrations and reduces the “jello” effect in recorded video. As a result, you get smoother HD footage and a more stable image, whether you're cruising cinematic lines or practicing freestyle around tight gaps and obstacles.

Key Features

• Designed for 2.2-inch cinewhoops with support for DJI O3-based builds
• Compatible with popular HD VTX systems, including DJI O3 Air Unit, Caddx Vista, and RunCam Link
• 93.7 mm wheelbase for a compact and agile FPV platform
• Durable PA12/PP material with reinforced whoop ducts for improved crash resistance
• Aerodynamic frame design that increases thrust by 8–11%
• Wide-angle camera mounting options for cleaner DJI O3 footage
• Rubber damping structure to reduce vibrations and video jello
• Integrated HD VTX mounting solution for fast, secure installation
• Supports vertical ND filter mounting for more flexible shooting setups

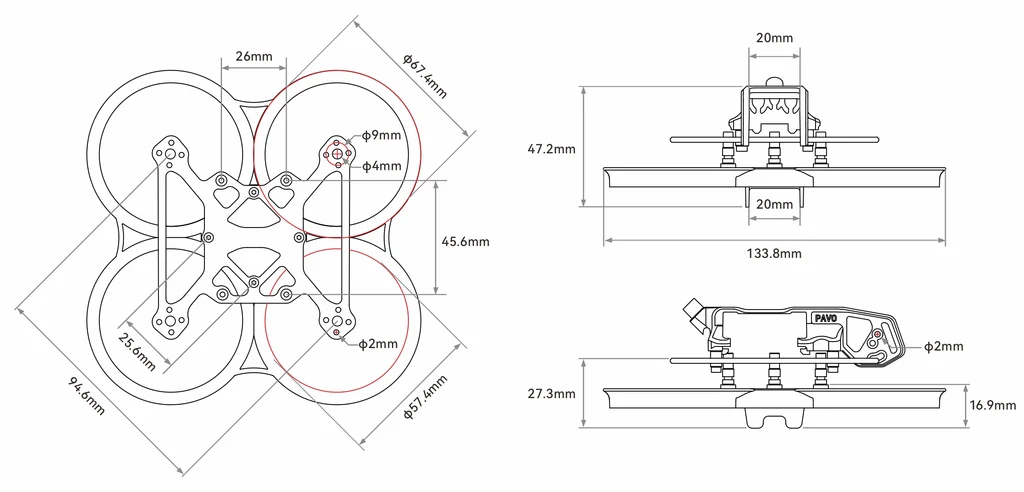

Specifications

• Product: Pavo20 Pro Brushless Whoop Frame
• Wheelbase: 93.7 mm
• Material: PA12/PP
• Top Plate Thickness: 2 mm
• Weight: 33.3 g (with HD VTX mount), 17.8 g (whoop duct), 4.6 g (HD VTX mount only)
• Color: Black / Transparent Gray / Blue
• Camera Size: 19 mm / 20 mm
• FC Mounting: 26 × 26 mm, compatible with conventional whoop flight controllers
• Motor Mounting: 4-M2-φ9 mm
• Battery Slot Width: 20 mm
• Camera Filter Support: Yes

Compatible with Popular HD VTX Systems

The Pavo20 Pro is designed to work with today’s most popular HD VTX systems, giving FPV pilots more flexibility when choosing their gear. It supports the DJI O3 Air Unit for crisp HD transmission up to 1080P, while Caddx Vista delivers 720P low-latency video that works great for more aggressive flying styles. RunCam Link compatibility adds even more build options for pilots who want a reliable and adaptable HD FPV frame.

The custom split-style HD VTX mount makes installation easier, especially for DIY builders who want a cleaner assembly process without sacrificing stability. It’s a practical solution for anyone looking to create a compact HD whoop with dependable image quality and a tidy internal layout.

Purpose-Built for HD VTX Performance

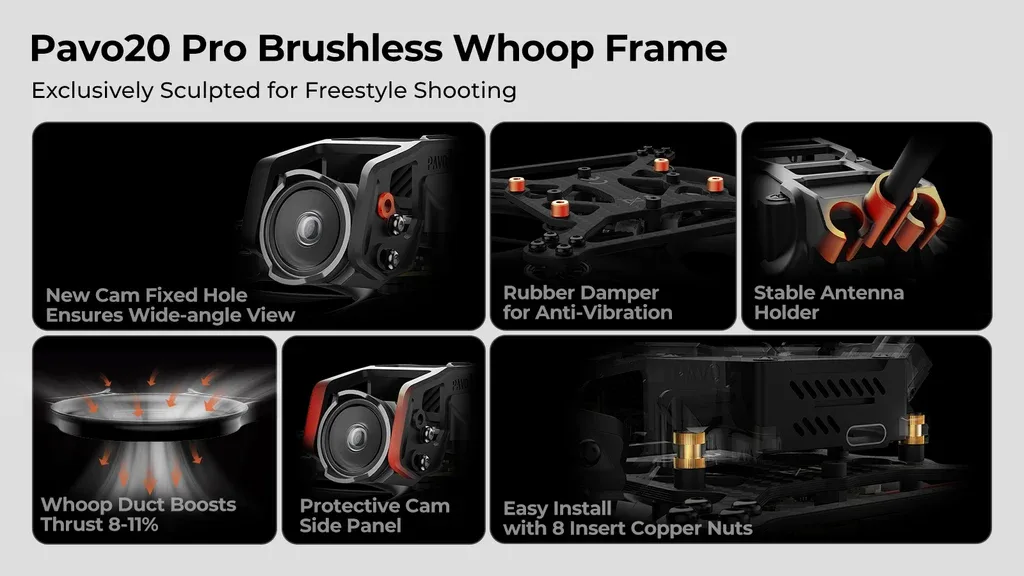

The Pavo20 Pro frame has been carefully shaped to support HD VTX systems and improve recording performance. It features 6 fixed camera mounting holes, including 2 newly added positions for wide-angle footage, helping reduce side plate visibility in the shot and deliver a cleaner field of view. This makes it a great pick for pilots focused on cinematic flying and sharp onboard video.

The side camera plates not only help shield the lens from damage, but also allow for easy vertical ND filter installation. The frame also helps prevent unwanted camera angle shifts after more dynamic flights, keeping your footage consistent and your setup more secure. A custom antenna mount makes antenna installation easier and helps hold it firmly in place.

To improve image stability even further, the frame uses the classic Pavo Series rubber shock-absorbing design, which helps reduce vibrations and smooth out HD footage. The anti-vibration tips are also compatible with Pavo Pico, adding extra versatility for experienced builders and FPV enthusiasts.

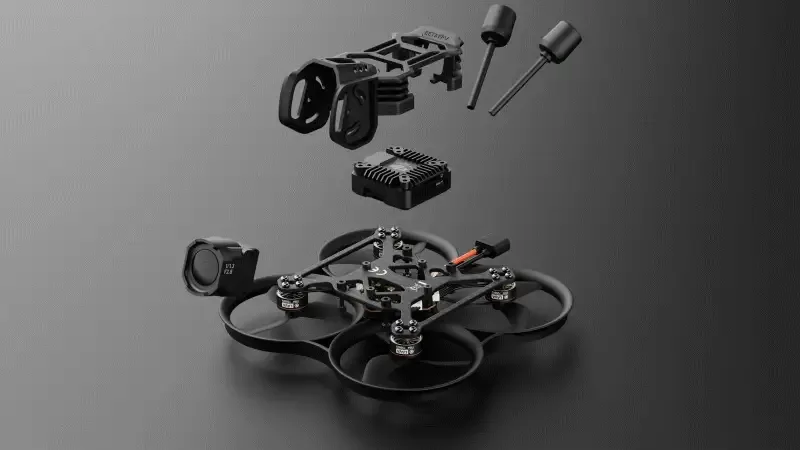

The frame includes an integrated HD VTX mounting bracket with a copper nut design for quick and secure attachment using just 8 screws. Thanks to the use of partially threaded screws, there is no need for constant tightening adjustments during assembly. This speeds up the build process, improves vibration resistance, and enhances the overall stability of the HD system in flight.

What’s Included

• 1 × Pavo20 Pro top plate
• 1 × 20 × 20 mm VTX mounting plate
• 1 × Pavo20 whoop duct
• 1 × Pavo20 VTX mount
• 1 × 130 mm battery strap
• 2 × battery anti-slip pads
• 2 × 5.8G antennas
• 8 × M2 nuts
• 10 × rubber dampers
• 6 × M2 × 10 screws
• 6 × M2 × 4 screws
• 4 × M2 × 14 screws
• 4 × M2 × 15 screws
