BetaFPV Pavo Femto Drone Frame Channel (DJI O4) - Transparent Gray

Frame Channel for BetaFPV Pavo Femto Drone (DJI O4) - Transparent Gray

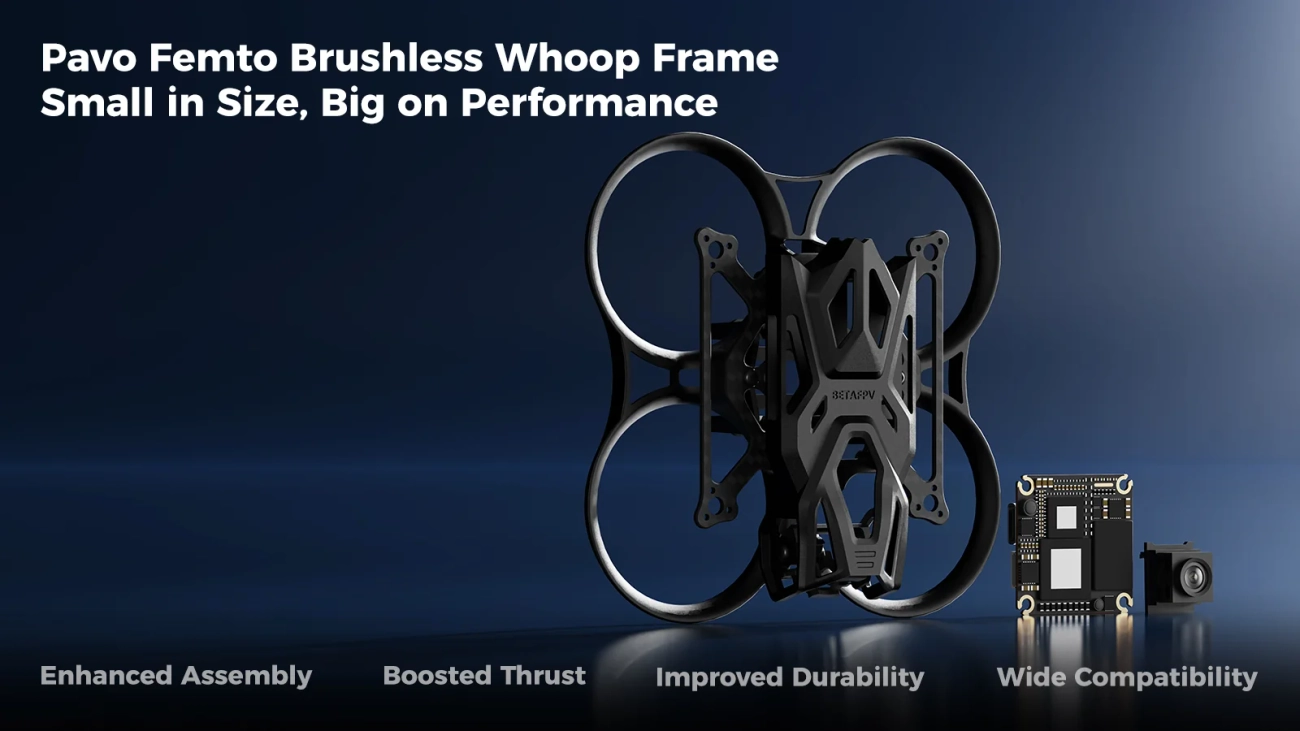

The Pavo Femto Brushless Whoop Frame is engineered for performance and durability, offering a 4% thrust increase in a compact design. It features enhanced connections between the whoop channel and the carbon fiber plate with additional brackets and constraints for secure assembly. Optimized for the DJI O4 Air Unit, it includes a reinforced protective structure for the circuit board.

Key Features

• Enhanced Assembly: Improved connection between the whoop channel and the carbon fiber plate with additional brackets for easy and secure mounting.
• Increased Thrust: Smaller whoop channel boosts thrust by approximately 4%.
• Increased Durability: Reinforced protection for the DJI O4 Air Unit circuit board.
• Wide Compatibility: O4 Air Unit mount fits Pavo Femto, Pavo Pico, and Pavo20 models.

Specifications

• Model: Pavo Femto Brushless Whoop Frame
• Wheelbase: 75mm
• Carbon Fiber Plate Thickness: 2mm
• Whoop Channel Material: PA12
• Whoop Channel Weight: 8.64g
• Frame Weight: 22.16g
• Flight Controller Mounting Hole Distance: 25.5mm x 25.5mm
• Motor Mounting Hole Distance: 3*M1.4 EQS ø6.6
• O4 Air Unit Mount Material: PA
• O4 Air Unit Mount Weight: 6.05g
• Camera Mounting Distance: 20mm

Pavo Femto Brushless Whoop Frame Diagram:

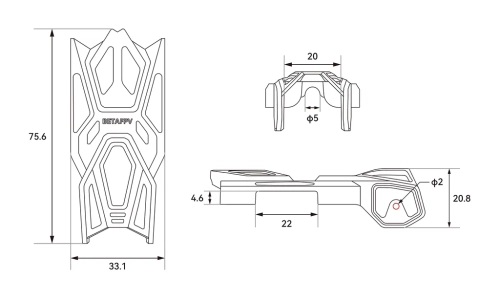

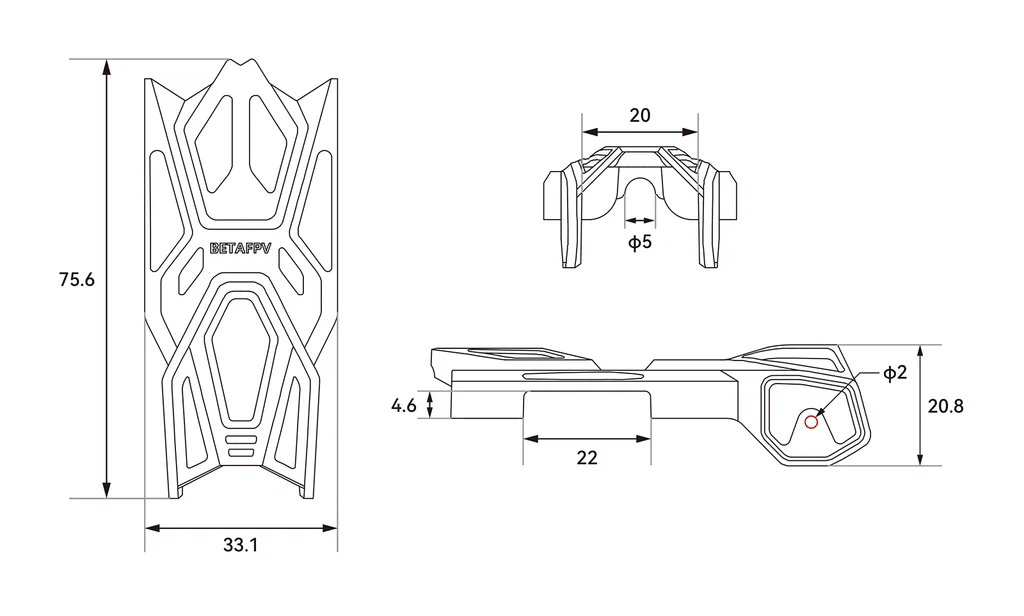

O4 Air Unit Mount Diagram:

4% Thrust Increase

Inspired by rocket engine nozzles, the Pavo Femto frame optimizes whoop channel aerodynamics with precise height and thickness adjustments. Despite its smaller size, it achieves around a 4% thrust increase, ensuring better power and stability.

Enhanced Assembly

Improved connection between the whoop channel and the carbon fiber plate ensures secure mounting, eliminating loose screws and complicated installations.

Increased Protection

The DJI O4 Air Unit mount is equipped with a reinforced protective structure, enhancing its durability and reliability.

Included:

• 1 * Whoop Frame Channel
