Apparatus Radiomaster TX16S MKIII ELRS

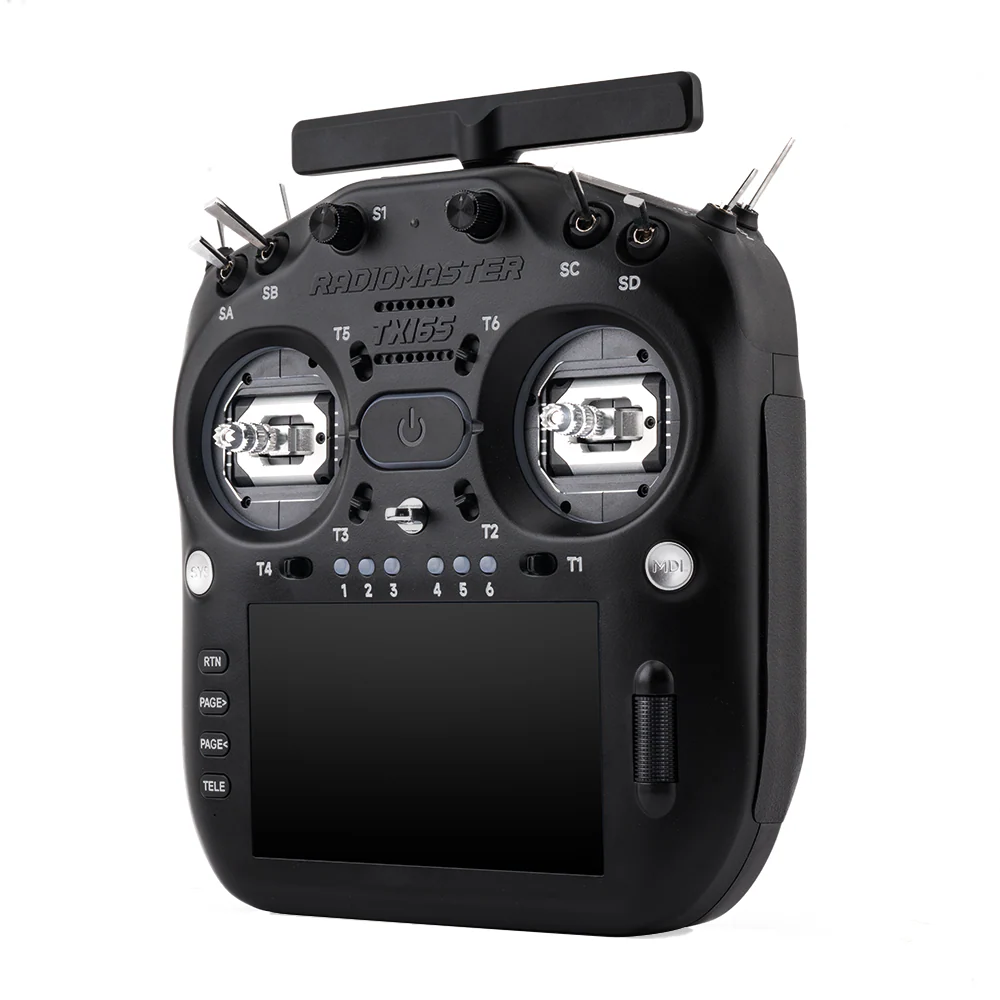

RadioMaster TX16S MKIII ELRS Radio Controller

Meet the RadioMaster TX16S MKIII ELRS — the next evolution of one of the most trusted open-source RC transmitters in the hobby. Built on the legendary TX16S platform, the MKIII takes performance, precision, connectivity, and everyday comfort to a whole new level. Whether you fly FPV drones, fixed-wing models, helicopters, or RC cars, this radio is designed for pilots who want advanced features without compromise.

TX16S MKIII — the evolution of a legend.

Launch Video

Key Features

• Powerful STM32 H7 MCU for fast response, smooth operation, and serious processing performance.
• 5-inch IPS touchscreen with 800 × 480 resolution for a bright, sharp, and easy-to-read interface.
• Built-in ExpressLRS RF system with dual LR1121 transceivers supporting 2.4 GHz and Sub-G 900 MHz operation.
• Gemini-X dual-band capability for ultra-reliable, low-latency control and outstanding link stability.
• V6 Hall sensor gimbals with four bearings for precise stick control and a premium feel.
• Programmable RGB LED gimbal rings with LUA control for status indication, warnings, or custom styling.
• External gimbal adjustments for travel, centering, and tension tuning without hassle.
• Efficient cooling system with quiet fans and an aluminum heatsink to keep temperatures under control.
• Digital audio system for improved sound quality and reduced interference.
• Dual folding antennas for easier transport and storage without sacrificing signal performance.
• Built-in microphone ready for future feature expansion.
• Automatic backlight adjustment for better screen visibility in changing light conditions.
• Integrated motion sensor for tilt-based control of switches, pan/tilt cameras, and telemetry functions.

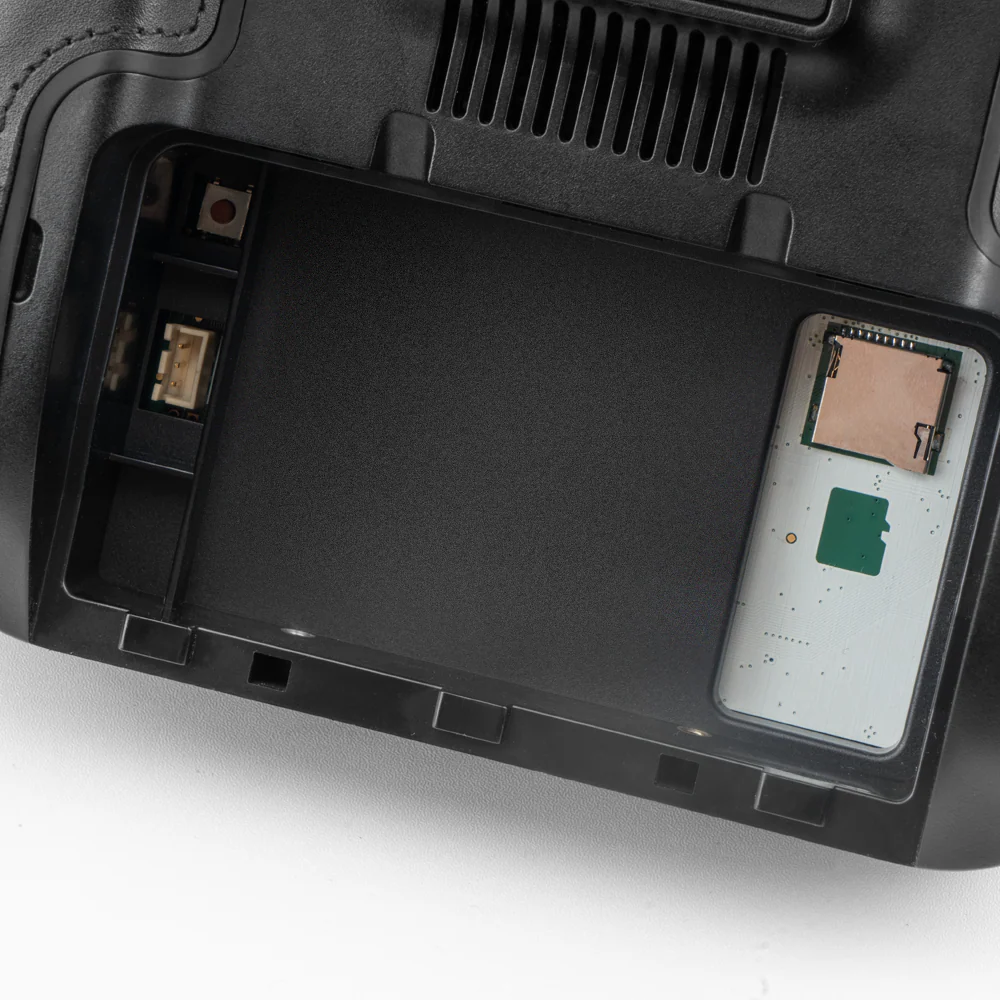

• Internal flash memory and MicroSD card support for model storage, sounds, and system files.
• Modular side switch panels for customizing the transmitter layout to your flying style.
• JR-compatible external module bay for expanded RF flexibility.

Why Pilots Choose the TX16S MKIII ELRS

Powered by an advanced STM32H7 processor, the TX16S MKIII delivers quick input handling, responsive menus, and dependable performance for demanding RC users. The bright 5-inch IPS display stays clear and readable even outdoors, making setup and field adjustments easy.

With its Gemini-X ExpressLRS system using dual LR1121 transceivers, the TX16S MKIII offers exceptionally reliable, low-latency control across both 2.4 GHz and 900 MHz bands. For hobbyists who value confidence, range, and connection stability, this is a major advantage.

The standard V6 Hall sensor gimbals feature a four-bearing design and use the same chipset as the AG02, helping deliver impressive precision and smooth stick feel. External adjustment points for throw, centering, and spring tension make fine-tuning easy. On top of that, the programmable RGB LED rings let you assign flight modes, alerts, or status indicators while adding a custom look to your radio.

The full-size chassis keeps the classic TX16S layout loved by pilots around the world. Every switch, slider, and potentiometer is positioned for confident operation and full control. Thanks to the modular switch side panels, you can adapt the setup to match your preferred flying style.

Every detail of the TX16S MKIII reflects thoughtful refinement — more power, better ergonomics, and a design built for RC pilots who expect premium performance from their gear.

Technical Specifications

• Product: TX16S MKIII Radio Controller
• Color: Black / Transparent Graphite
• Input Voltage: 6.6–8.4V DC
• Current Draw: 1.10A (at maximum RF power)
• Firmware: EdgeTX (requires version 3.0.0 or newer)
• Internal RF Module: ExpressLRS 2 × LR1121
• Frequency Bands: ISM 2.4 GHz and Sub-G 900 MHz
• Channels: Up to 16
• Gimbals: V6 Hall sensor gimbals (standard)
• MicroSD Slot: Yes (card not included)
• Flash Memory: Yes
• Display: 5-inch IPS touchscreen, 800 × 480
• Battery Options: 2 × 18650 / 21700 5000mAh / LiPo 2S 6200mAh (battery not included)
• Update Method: USB / EdgeTX Companion PC
• External Module Bay: JR compatible
• Dimensions: 200 × 178 × 88 mm
• Weight: 813 g (without battery)

Dimensions

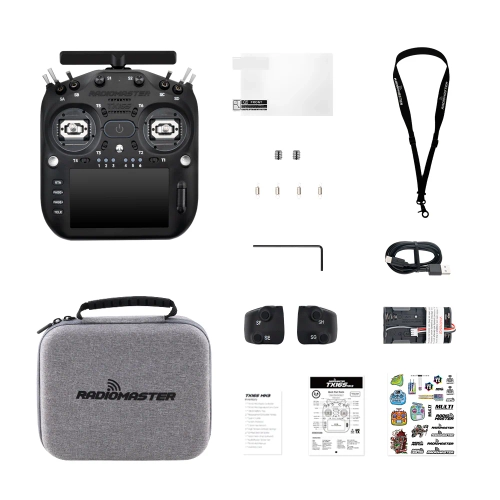

What’s Included

• 1 × TX16S MKIII Radio Controller

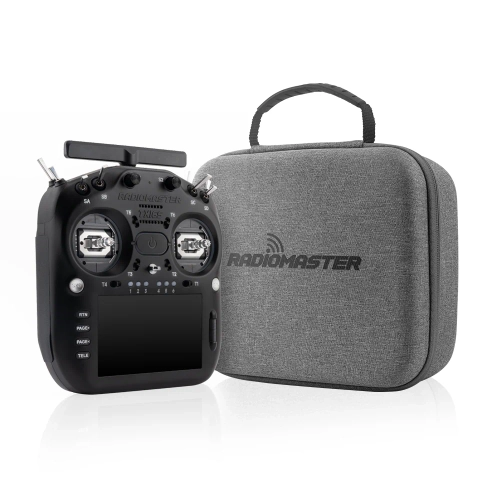

• 1 × Carrying case
• 1 × 18650 battery tray
• 2 × Side panels
• 1 × USB-C cable
• 1 × Screen protector
• 1 × 1.5 mm hex key
• 4 × Gimbal springs
• 2 × Stick-end screws
• 1 × Neck strap
• 1 × RadioMaster sticker set
• 1 × User manual
• 1 × Quality control card
