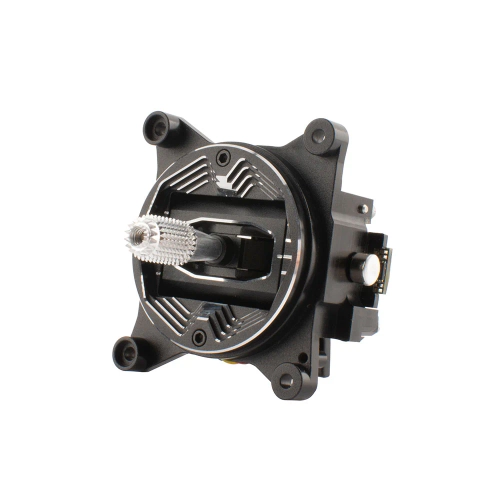

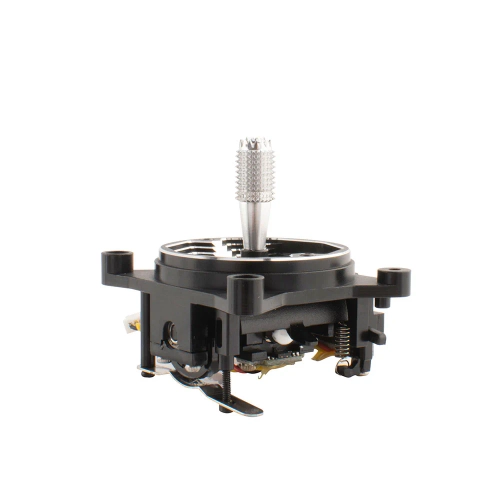

AG01 MINI CNC indoor gimbals for RadioMaster TX12 and Zorro

AG01 MINI CNC indoor gimbals for RadioMaster TX12 and Zorro

Key features

• Made of CNC machined aircraft aluminum.
• Sticky360 Mini as standard.
• Non-contact Hall effect sensors for accurate control signals and precise centering.
• Quad precision bearings provide unrivaled stick feel.
• Adjustable vertical movement angle (Min. 38°, Max. 54°).
• Designed specifically for RadioMaster Zorro & TX12.

Technical data

• Name: AG01 CNC mini indoor gimbal
• Sensor type: Hall sensor
• Working voltage: DC 3.3V
• Linearity: real-time (no delays)
• Adjustable vertical range of motion: 38°–54°
• Self-centering adjustment: Yes
• Easy mode adjustment
• Adjustable Voltage: Yes
• Quadruple bearing: yes
• Temperature range: -20°C-85°C
• Size: 49*42*48mm
• Weight: 42 gram (±0.3 gram)

Installation for Zorro and TX12

AG01 Mini gimbals ship self-centering by default and are compatible with both Zorro and TX12 radios.

FOR ZORRO

The Zorro radio is configured as Mode 1 or Mode 2 using screws mounted on the back of the radio. Both gimbals must be mounted in a self-centering configuration (out of the box by default) on the Zorro radio. Once the radio is reassembled, the screws on the back of the Zorro will position the throttle gimbal.

FOR TX12

Before mounting on the radio, one gimbal should be set as gas-powered and the other as self-centering.
1. Use the included screw (see parts bag) to hold the centering lever and position the gimbal as a throttle gimbal.
2. Adjust the throttle tension stick until the desired tension is achieved.
