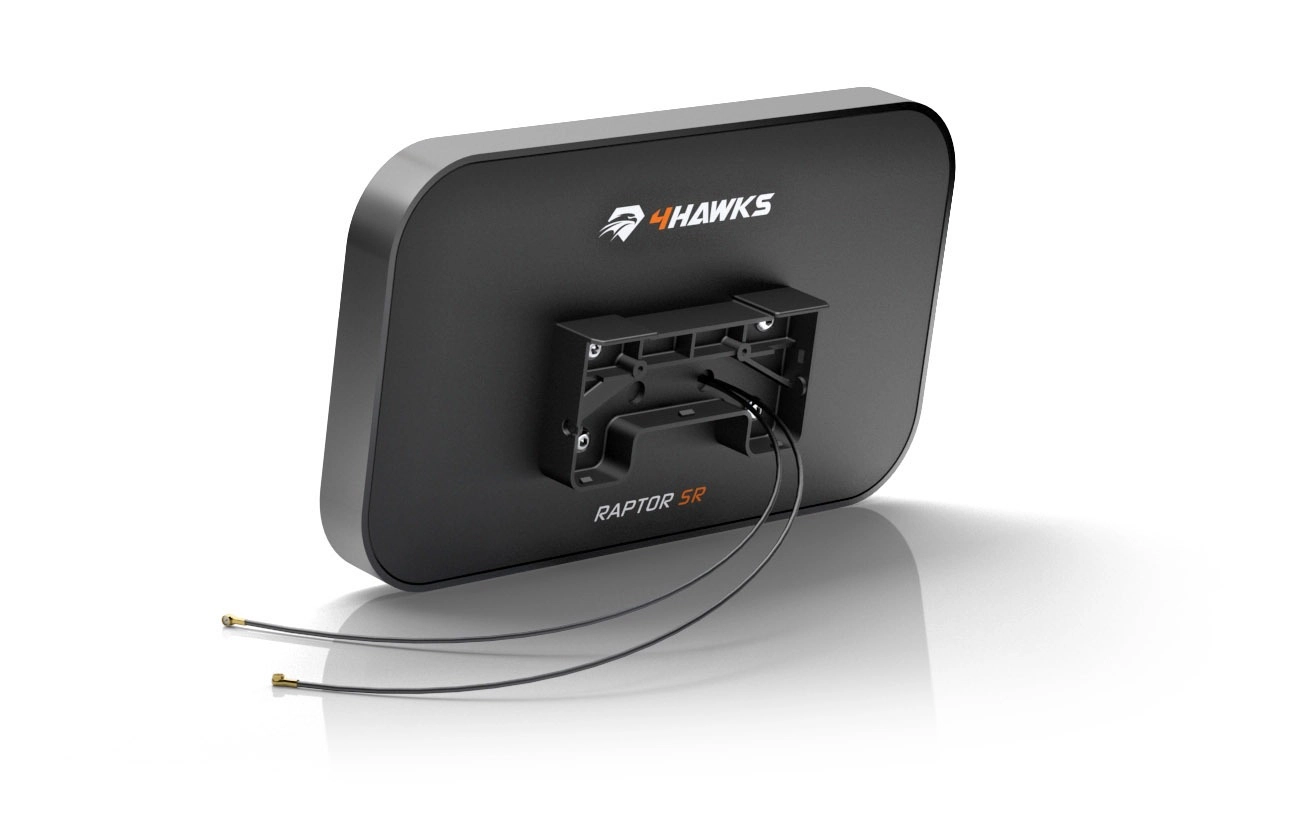

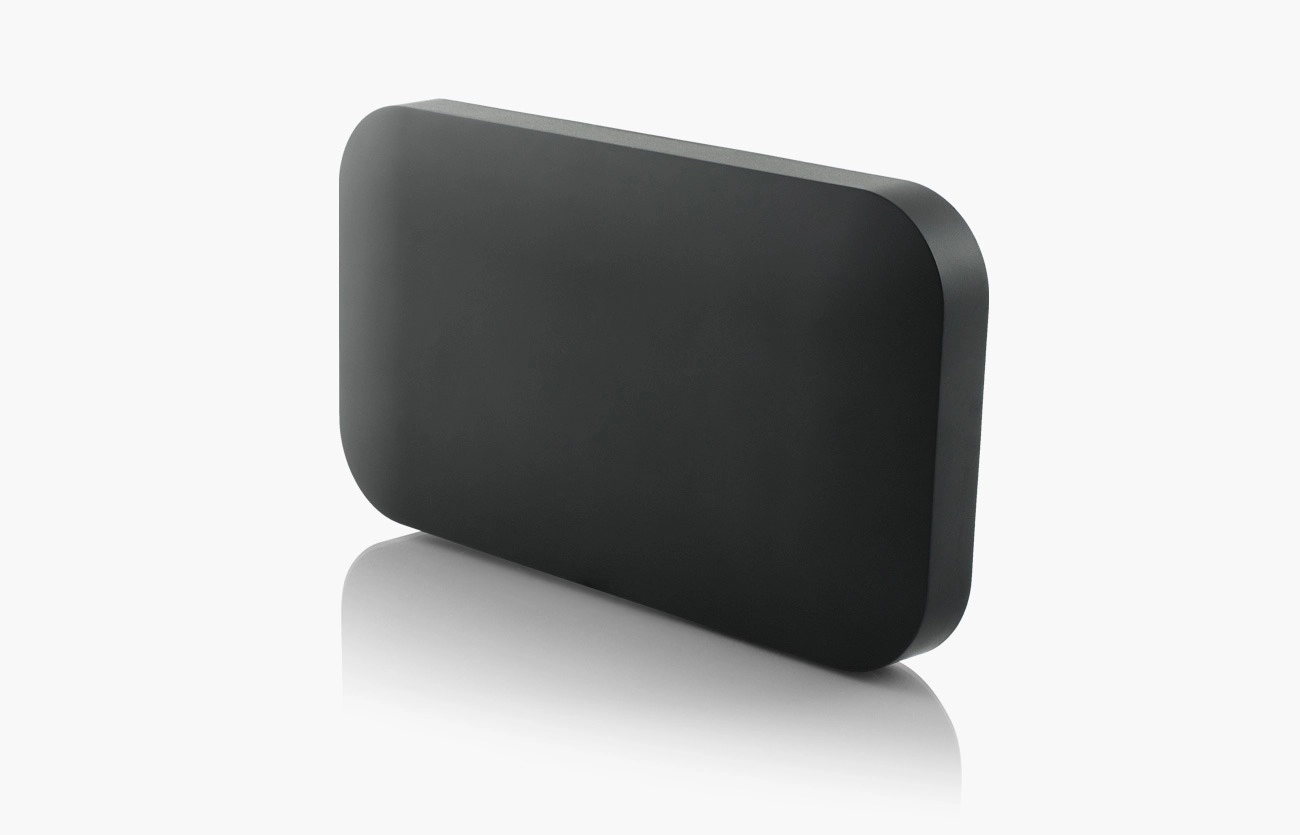

4Hawks Raptor SR DJI Mavic Air 2S panel antenna

The Raptor antenna will significantly increase the flight range of your drone. From now on, you can reach up to three times further than with standard antennas. All materials have been precisely selected, and all elements have been designed with due care. The transparent radio shield is manufactured by an advanced injection molding process. The mounting system is made of stainless steel and does not contain any replaceable parts that can be easily lost. Thanks to a dedicated mechanism, the operator can easily and smoothly adjust the tilt of the antenna. Designed for drone enthusiasts, the DJI Mavic Air 2S is perfect for vacation trips. Its long range allows you to reach places that were completely inaccessible before, such as deep forests, canyons, lakes, etc. With a flight time of 31 minutes, the Air 2S is perfect for any situation. The built-in camera allows you to record videos in 4k. The 4Hawks antenna for the DJI Mavic model is highly advanced, working in both the 2.4 GHz and 5 GHz bands. The main visual concept for the antenna was to make it look like part of the drone by default. The entire structure is 100% UV protected to ensure the longevity of the equipment. In addition, part of the structure is made of aluminum to make the whole thing as light as possible. The whole is light and uniform (without loose fittings). Changing the direction of the antenna should not be difficult, as the system has been designed in a way that allows you to quickly change the position with one "click". Thanks to this, you can be sure that you will not lose connection with the drone.

Technical parameters: frequencies
Port 1: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Port 2: 2.40 - 2.50 GHz & 5.00 - 5.80 GHz
Increase
Port 1: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
Port 2: 8 dBi (+/- 1 dBi) & 10 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.50 (max. < 2.15)
Port 2: < 1.50 (max. < 2.15)
Beam width
Port 1: 90/65 & 55/55
Port 2: 90/65 & 55/55
Polarization
Port 1: Vertical
Port 2: Vertical
Resistance
port 1:50 ?
Port 2: 50 ?

Mechanical parameters: Material
Antenna: Samsung ABS, polyurethane, aluminum, stainless steel, nylon, PTFE PCB
Fixing: Stainless steel + paint
Libra
~180g (110g Antenna + 70g Mount)
Dimensions
16.1 x 9.1 x 1.7cm
6.34 x 3.60 x 0.67 inch
Connectors
Port 1: RP-SMA female
Port 2: RP-SMA female
Tilt adjustment
3 tilt positions, OnClick system
Mount type
On SMA connectors (fixed)
VSWR (Voltage Standing Wave Ratio ) Graphs, Connector Separation and Raptor Antenna Characteristics

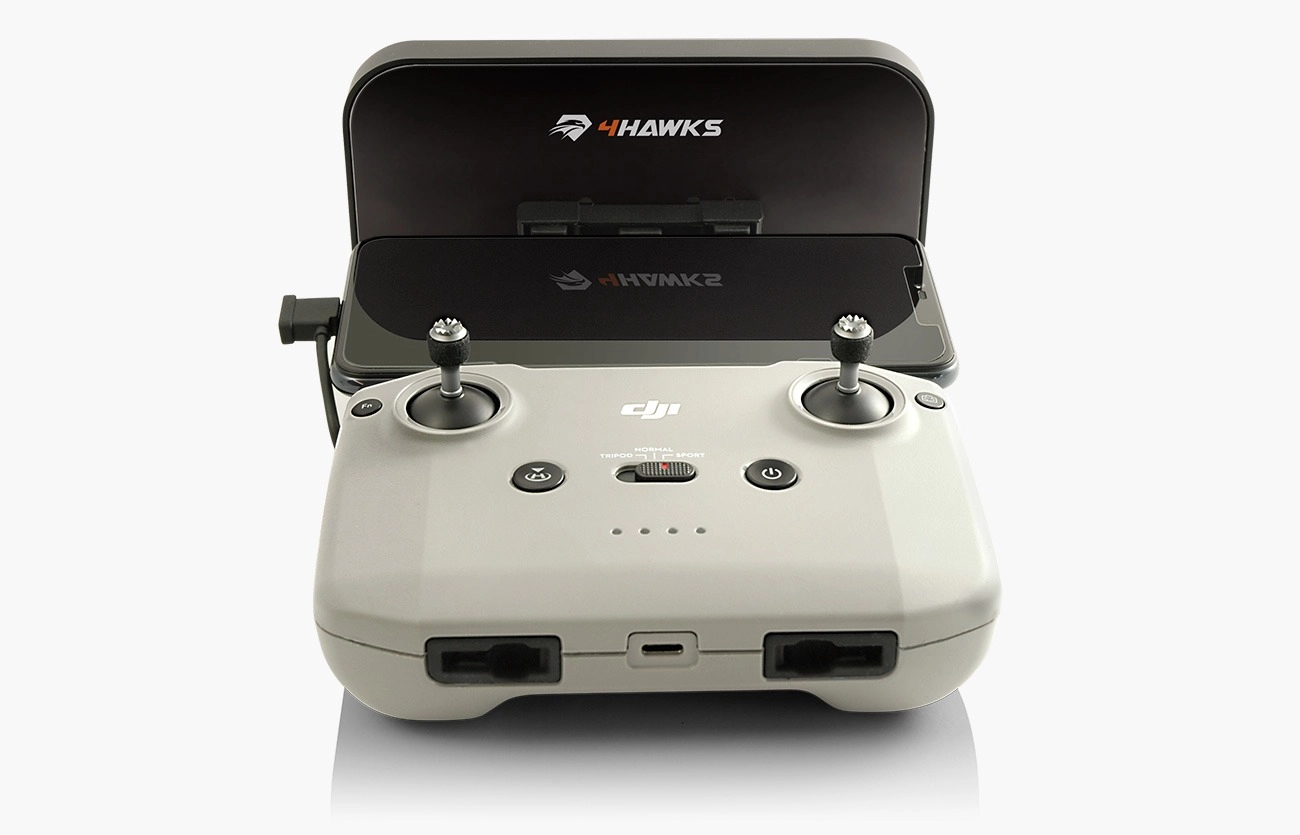

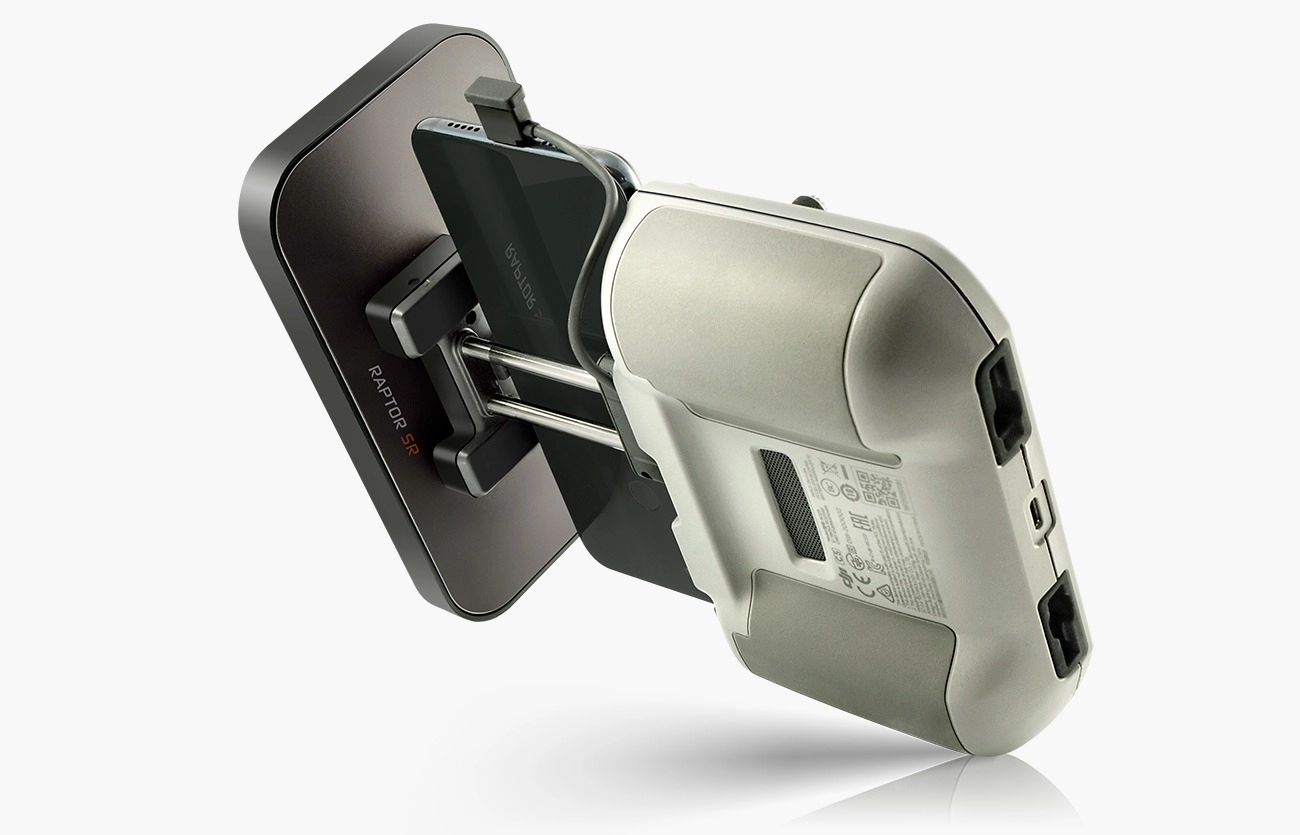

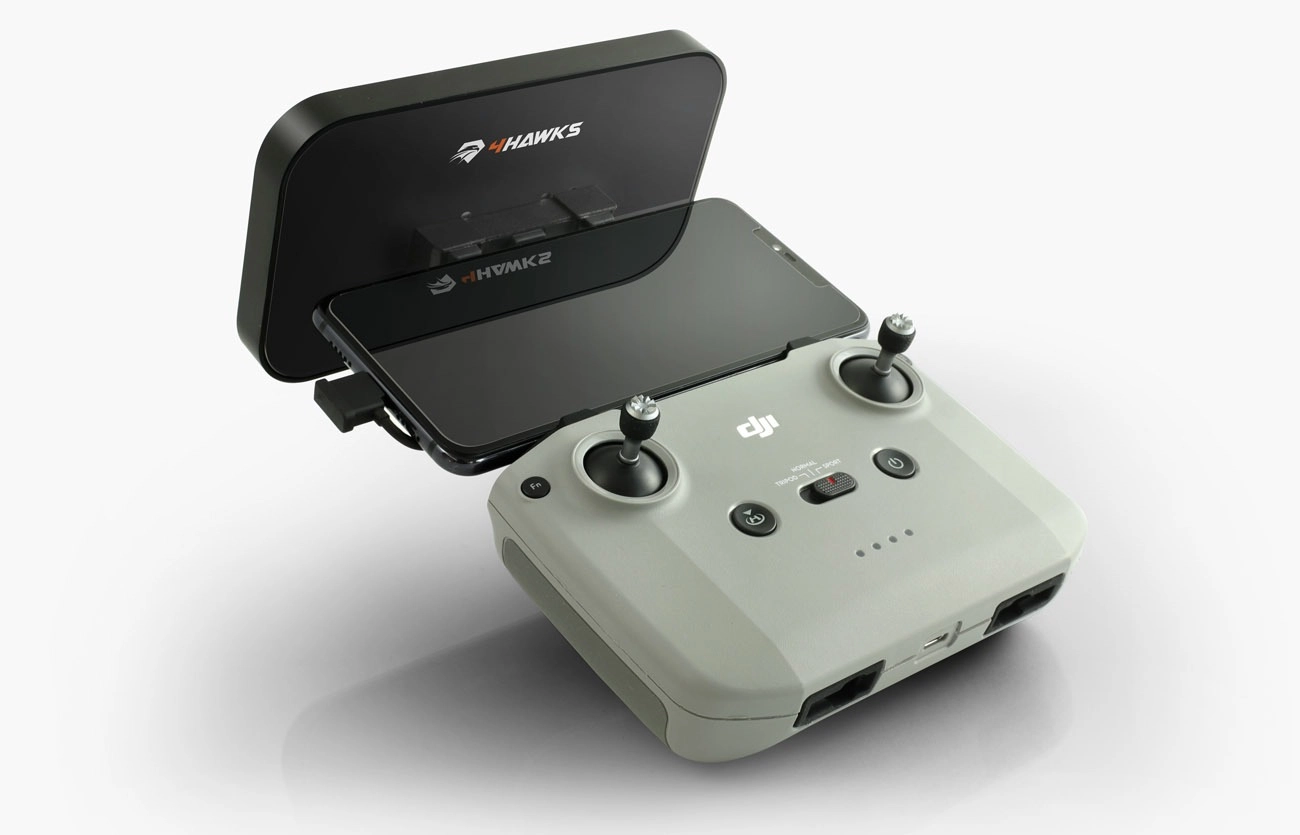

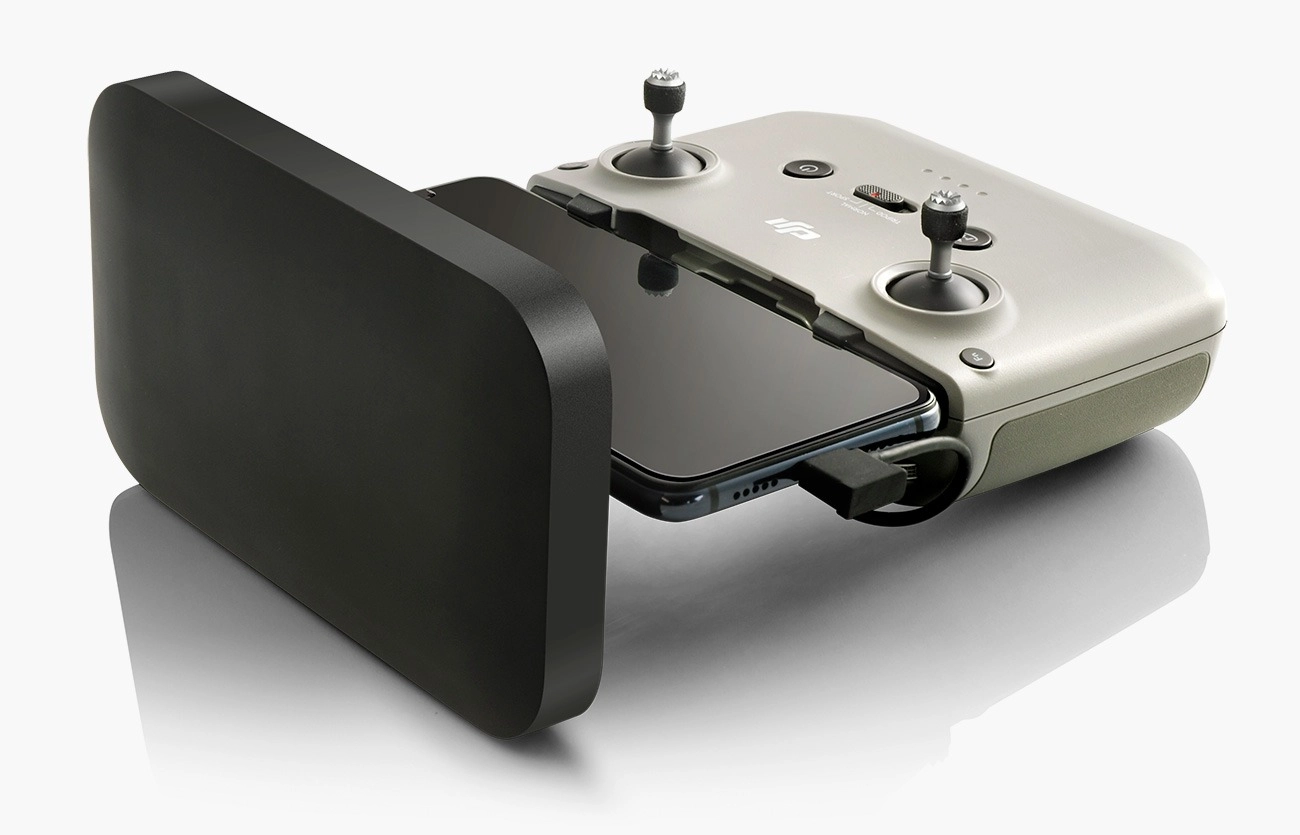

ATTENTION! The apparatus shown in the photo is not included in the purchase. It has been included for preview purposes only.

Important information:

1. Mounting the antenna voids the controller warranty.

2. No assembly instructions in the delivery. This is specialized equipment, a person with basic technical and electrical skills will easily install the antenna.

3. We offer professional installation of antennas 4hawks , which can be ordered on our website:

Regular controller - PLN 250/gross
smart controller - PLN 400/gross

To report such a service, go to our service page
