YoloBox Mini portable live broadcast studio
821,72 €

YoloBox Mini portable live broadcast studio

Introducing the most intuitive, multi-functional, all-in-one live broadcast transmitter: YoloBox Mini is a multi-destination transmitter, monitor, recorder and streamer in one. It is the industry's first REALLY all-in-one live production system that requires nothing external.

With built-in restreaming service, native support for integration directly with YouTube/Facebook/Twitch, adding graphic overlays (logo, lower thirds, picture-in-picture, scoreboard, rolling captions) and stream comments, Side-By-Side, Split-View and much more. YoloBox Mini offers professional features and processing power required for the most demanding live broadcasts.

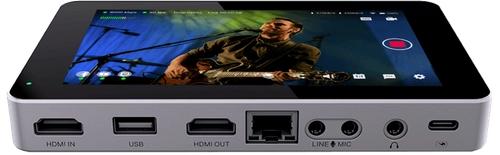

YoloBox Mini weighs 320g, has a 5.5" touchscreen, 1 HDMI input, 1 HDMI output, 1 USB-A input. Mini supports 720p and 1080i/p input resolutions, as well as 540p, 720p and 1080p60 streams at the user-selected resolution , using the H.264 codec. Thanks to the HDMI output, you can locally display the stream on an HDMI device. The device is also equipped with an audio line input and a separate headphone output. The stream can be recorded directly in .mp4 format on an optional SD card with a capacity of up to 128 GB, using the built-in SD card slot. The line-in input allows you to connect to a synthesizer, and the mic-in input can be connected to a microphone for recording.

Control via touch screen

YoloBox Mini has a touchscreen interface that makes streaming and control easy.

Functions

The device works as a switcher, with multiple picture-in-picture templates and graphic layers. It has a built-in encoder that enables live streaming as well as recording to optional SD cards.

Overlays

  • Ability to brand your live stream by adding logos/watermarks/scrolling captions
  • Customized PiP options, including interview mode, let you give your stream a unique look and feel
  • Connect with viewers in real time with comment overlays
  • The customizable scoreboard feature displays a real-time scoreboard for a professional look.
  • You can edit the built-in bottom triplets templates or add your own

Internet

You can connect to the Internet via the integrated RJ45 (Ethernet) port, Wi-Fi and cellular services using an optional SIM card.

Simultaneous streaming

YoloBox Mini Mini Pro first uploads your material to the YoloLIV platform, from where it automatically forwards it to up to 3 places at the same time.

Use only as monitor and recorder

Use your device even when you're not broadcasting live. Record, switch, add overlays and transitions to increase your video production efficiency.

Streaming platforms

Major streaming platforms such as Facebook live, YouTube and Twitch are directly integrated, just log in to your social media account and start streaming.

SD card slot

You can load previously recorded videos from an SD card for intros, countdowns, B-rolls or special episodes.

PDF

You can upload a PDF file as a local source to YoloBox Mini.

Battery life

The internal battery can power the YoloBox Mini Mini for approximately 2 hours. YoloBox Mini Mini charges via the USB-C connector, which is used only for power.

Technical Specifications:

  • Interfaces: HDMI IN 1, USB-A3.0, HDMI OUT, Ethernet; LINE IN (3.5 mm), MIC IN (3.5 mm), AUDIO OUT (3.5 mm), Nano-SIM card holder, 1/4'' screw hole, SD card holder, USB Type -C (for charging only)
  • Input power supply: DC5V/2.5A, DC9V/2A, DC12V/1.5A
  • Power Consumption: < 18W
  • Power supply: USB Type-C
  • USB Rated Output: USB-A: DC5V/1A
  • Battery capacity: 4700mAh
  • Dimensions (LxWxH): 155x92.6x20mm
  • Net Weight : 320g
  • Monitor screen size: 5.5" LCD Resolution: 720*1280
  • Local video inputs: HDMI, USB3.0
  • Video Over Ethernet: RTMP/RTMPS
  • Video input connectors: HDMI, USB-A, RJ-45
  • Video input aspect ratios: 4:3,16:9
  • Video input deinterlacing: Yes
  • Live video input resolution: 480p/720p/1080p (up to 60 frames per second)
  • Video encoding format: H.264
  • Video processing bitrate control: CQ, VBR, CBR
  • Video encoding hardware acceleration: Optional
  • Video output signal types: FLV-RTMP, HDMI, UVC
  • Video output connectors: HDMI, USB-A
  • Streaming video output protocols: RTMP, RTMPS, MJPEG
  • Video output resolution for live broadcast: 480p/720p/1080p (up to 60 frames per second)
  • Analog audio input connectors: Line in, 3.5mm microphone in
  • Digital audio inputs: USB, HDMI, RTMP (from Internet), local video (from SD card)
  • Digital audio input connectors: USB-A, HDMI
  • Audio Input Mute: Yes
  • Audio input format: 32KHZ / 44.1KHZ / 48KHZ: 16bit
  • Audio coding format: (AAC)1K 2Ch 16bit
  • Analog audio output: 3.5mm headphone jack
  • Digital audio outputs: HDMI audio (built-in), USB audio (built-in)
  • Recording formats: MP4
  • Wi-Fi: GRAM/5G
  • 4G Network: 4G Network Countries and Frequency Band for
  • Users: [NA: North American variant (USA/Canada/Mexico)].
  • B2/B4/B5/B7/B12/B13/B14/B17/B25/B26
  • Notes: Mexico B4 For countries outside the US/Canada/Mexico
  • Users: (EM: Variant for EMEA / India / Korea / Taiwan / South Asia / Latin America / Australia / New Zealand)
  • Users: B1/B3/B7 Notes: Thailand B1, B3
  • Please note that the certification of Yolobox Mini is in line with the main requirements of operators in that country or region for the open 4G band. Please refer to the approval report for that country or region for details.
  • USB communication standard: USB 2.0, and USB 3.0
  • Ethernet data rate: 10/100M, half/full duplex with auto detection
  • SIM card size: Nano-SIM card
  • SDCard format: FAT32 (below 128G), NTFS, EXFAT
  • Working temperature: 0℃-40℃
  • Operating humidity: 15%-85%, non-condensing

Specification YoloBox Mini portable live broadcast studio

Brand
YoloLiv
Symbol
YB-MINI
Producer code
664918139094
Warranty
24 months
