VTX Mount for BetaFPV Pavo Femto Drone (DJI O4) - Transparent Gray

8,90 €
BETAFPV Pavo Femto DJI O4 VTX bracket – transparent gray
DJI O4 Air Unit mounting set
This VTX bracket for BETAFPV Pavo Femto holds the DJI O4 Air Unit and camera on compatible FPV frames. Made from PA, the bracket weighs 6.05 g and provides a reinforced protective structure for the video module.


Dampers and compatibility
Included damping balls, pads and a damped camera mount help isolate vibrations. Camera mounting spacing is 20 mm. The supplied information lists Pavo Femto, Pavo Pico and Pavo20 as compatible bracket frames; this does not mean their entire frames are interchangeable. The O4 transmitter and camera are not included.


Technical specifications
| Manufacturer | BETAFPV |
| Series | Pavo Femto |
| Product type | HD VTX mounting bracket |
| Color | Transparent gray |
| Intended use | Mounting DJI O4 Air Unit and DJI O4 camera |
| Bracket material | PA |
| Bracket weight | 6,05 g |

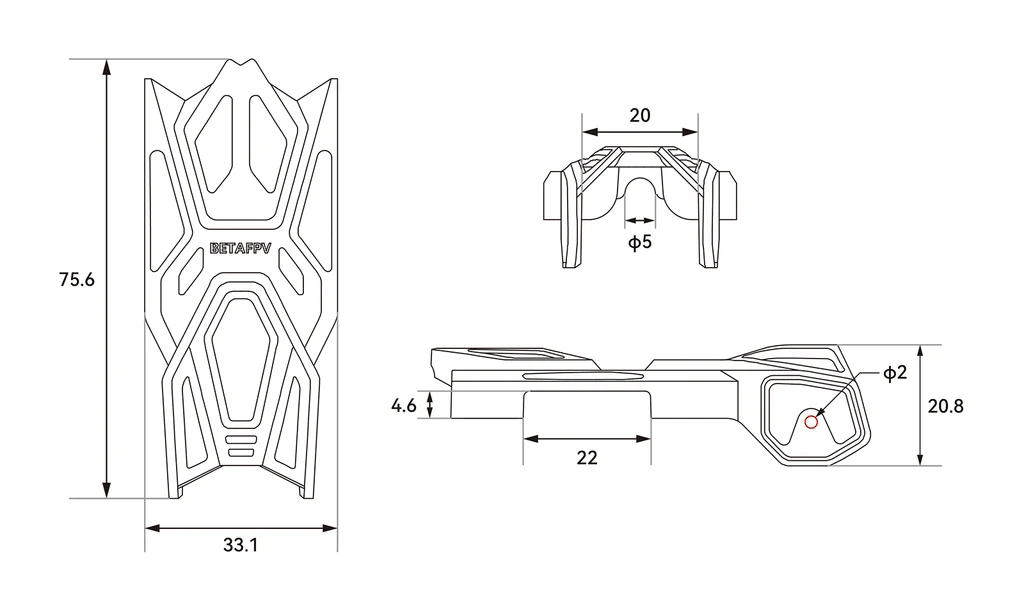

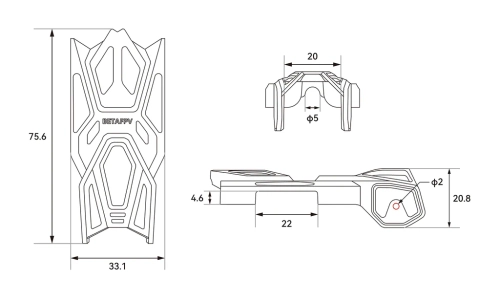

| Camera mounting spacing | 20 mm |
| Vibration-damping components | Rubber dampers, pads and damped camera mount |
| VTX bracket damper size | 6,6 mm |
| Compatible frames | BETAFPV Pavo Femto, Pavo Pico, Pavo20 |
Package contents
- DJI O4 Air Unit bracket cover – 1 pc.
- DJI O4 Air Unit bracket bottom plate – 1 pc.
- DJI O4 camera mount – 1 pc.
- Damped DJI O4 camera mount – 1 pc.
- 5.8 GHz VTX antenna – 1 pc.
- O4 Air Unit bracket rubber dampers, 6.6 mm – 6 pcs.
- O4 Air Unit damping pads – 6 pcs.
- Rubber O4 camera dampers – 6 pcs.
- M2 × 10 mm socket-head cap screws – 6 pcs.
- M2 × 4 mm countersunk socket screws – 4 pcs.
- M1.4 × 5 mm self-tapping screws – 6 pcs.
