VTX Mount for BetaFPV Pavo Femto Drone (DJI O4) - Black

VTX Mount for BetaFPV Pavo Femto Drone (DJI O4) - Black

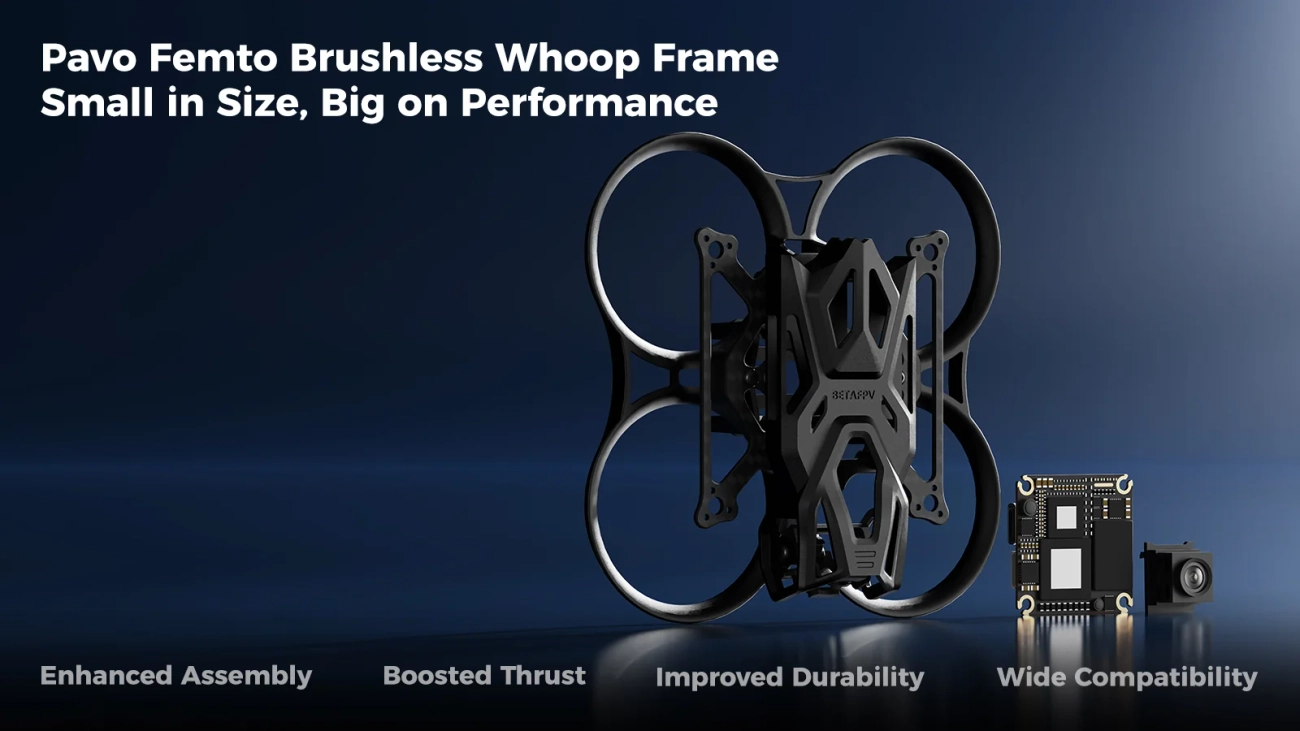

The Pavo Femto Brushless Whoop Frame is designed for performance and durability, offering a 4% thrust increase in a compact design. It features improved connections between the whoop duct and the carbon fiber plate with additional brackets and restraints for secure mounting. Optimized for the DJI O4 Air Unit, it includes a reinforced protective structure for the circuit board.

Key Features

• Enhanced Mounting: Improved connection between the whoop duct and carbon fiber plate with additional brackets for easy and secure installation.
• Increased Thrust: Smaller whoop duct increases thrust by about 4%.
• Enhanced Durability: Reinforced protection for the DJI O4 Air Unit circuit board.
• Wide Compatibility: The O4 Air Unit mount fits Pavo Femto, Pavo Pico, and Pavo20 models.

Specifications

• Model: Pavo Femto Brushless Whoop Frame
• Wheelbase: 75mm
• Carbon Fiber Plate Thickness: 2mm
• Whoop Duct Material: PA12
• Whoop Duct Weight: 8.64g
• Frame Weight: 22.16g
• Flight Controller Mounting Holes: 25.5mm x 25.5mm
• Motor Mounting Holes: 3*M1.4 EQS ø6.6
• O4 Air Unit Mount Material: PA

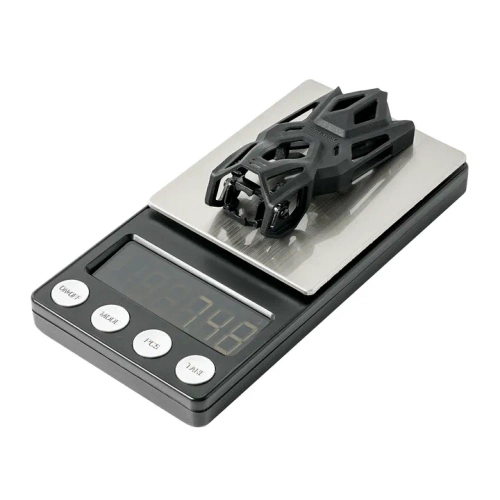

• O4 Air Unit Mount Weight: 6.05g
• Camera Mounting Distance: 20mm

Pavo Femto Brushless Whoop Frame Diagram:

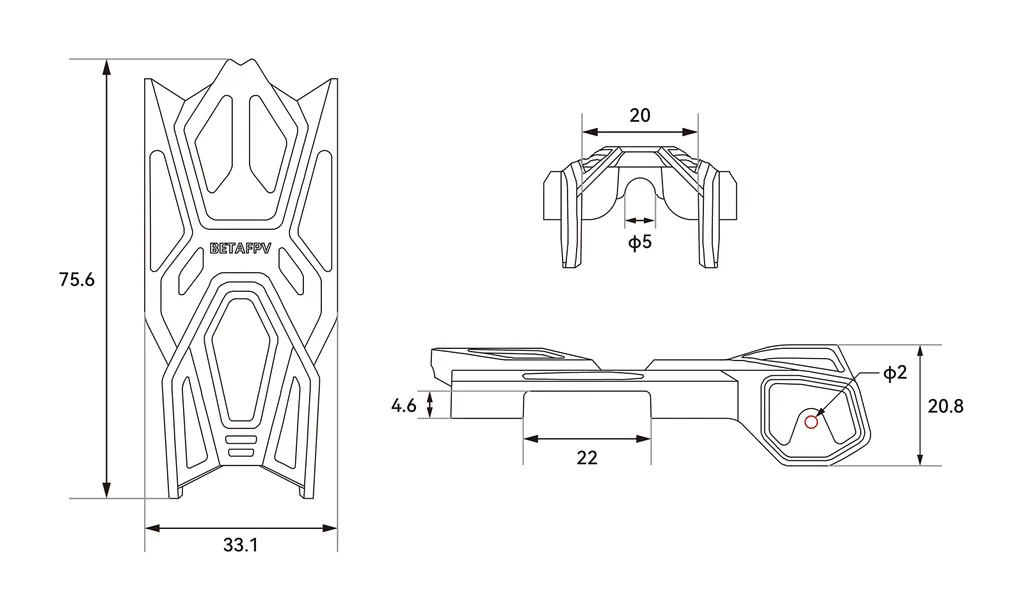

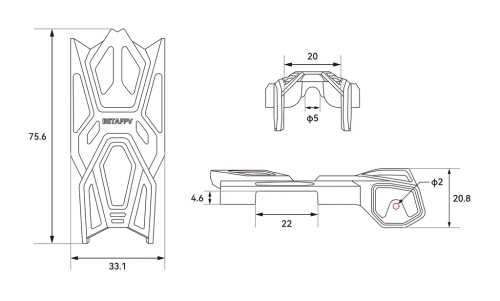

O4 Air Unit Mount Diagram:

4% Thrust Increase

Inspired by rocket engine nozzles, the Pavo Femto frame optimizes the aerodynamics of the whoop duct with precise adjustments in height and thickness. Despite its smaller size, it achieves about a 4% thrust increase, providing better power and stability.

Enhanced Mounting

Improved connection between the whoop duct and carbon fiber plate ensures secure mounting, eliminating loose screws and complicated installations.

Increased Protection

The DJI O4 Air Unit mount features a reinforced protective structure, enhancing its durability and reliability.

Included in the Package:

• 1 * Cover for O4 Air Unit Mount
• 1 * Bottom Plate for O4 Air Unit Mount
• 1 * DJI O4 Camera Mount
• 1 * Shock-absorbing Mount for DJI O4 Camera
• 1 * 5.8G VTX Antenna
• 6 * Shock-absorbing Balls for O4 Air Unit Mount (6.6mm)
• 6 * Shock-absorbing Pads for O4 Air Unit
• 6 * Shock-absorbing Balls for O4 Camera
• 6 * M2*10 Socket Head Cap Screws
• 4 * M2*4 Countersunk Socket Head Screws
• 6 * M1.4*5 Self-tapping Screws with Washer Head
