Transport system (Dual Battery) for drone DJI Agras T100

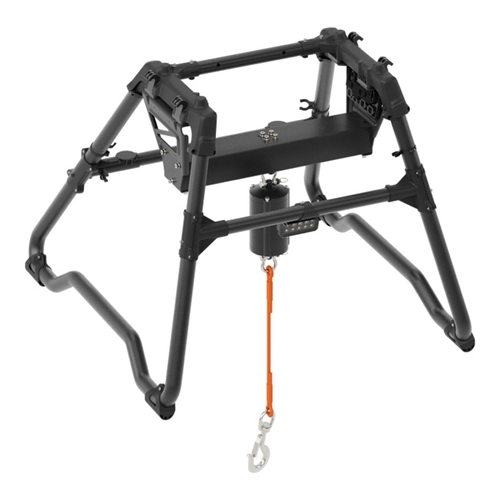

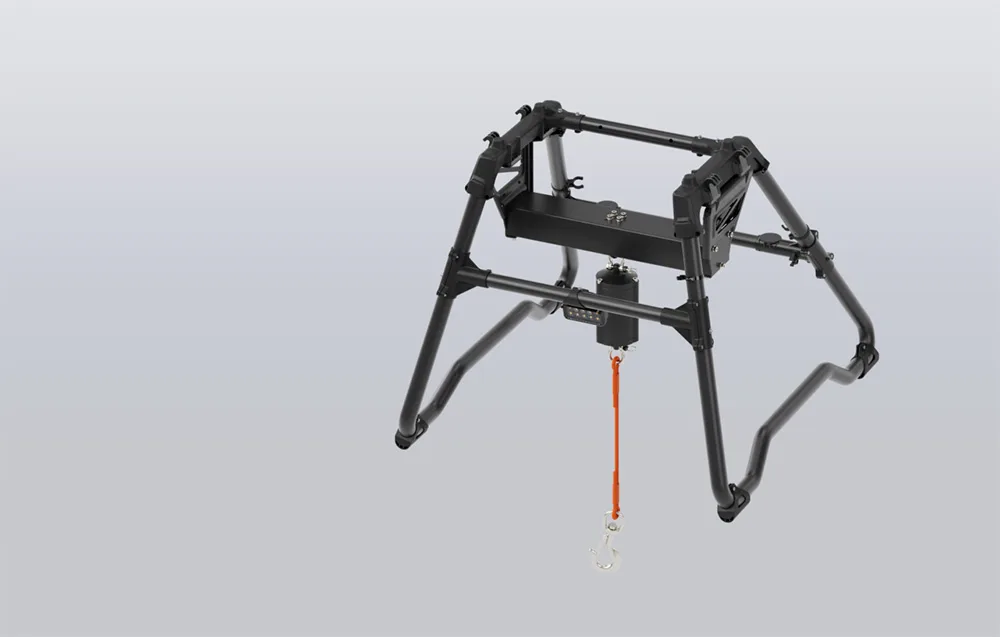

Dual Battery Transport System for DJI Agras T100 Drone

Turn your DJI Agras T100 into a versatile transport platform with the Dual Battery Transport System. Designed for demanding fieldwork and beyond, this accessory lets you carry a wide range of loads, including photovoltaic panels, fruit, construction materials, and seedlings. The system is engineered for stable, safe transport and offers an impressive payload capacity of up to 80 kg, making it a practical solution for users who need more than standard drone functionality.

Reliable Load Transport and Enhanced Stability

The system features a 3-axis force sensor that monitors the load in real time and automatically adjusts the drone’s attitude during flight. This helps reduce swinging, improves balance, and increases overall operational safety. Continuous weight monitoring also helps prevent overload, giving you more confidence during every transport mission.

• Up to 80 kg maximum payload capacity
• Real-time load monitoring with a 3-axis force sensor
• Automatic in-flight attitude adjustment for improved stability
• Reduced load sway for safer and smoother transport

Smarter Route Planning and Easier Operation

Operators can define loading and unloading points using a smartphone connected to an RTK module, then sync them with the remote controller. The system supports quick destination targeting with AR projection on the controller and allows flights between designated points with a single command. This makes mission planning faster, simpler, and more efficient in the field.

• Loading and unloading point setup via smartphone and RTK module
• Synchronization with the remote controller
• AR-assisted destination visualization
• One-command flights between selected points

Emergency Protection When It Matters Most

In extreme situations, such as when the load becomes tangled or jammed, the system can heat and cut the transport rope in emergency mode. This function allows the drone to be freed quickly and helps minimize the risk of damage during unexpected incidents.

• Emergency rope cut-off function
• Helps release the drone in critical situations
• Designed to reduce the risk of equipment damage

Key Features

• Compatible with DJI Agras T100
• Dual Battery version
• Designed for agricultural and utility transport tasks
• Standard transport rope length: 10 m
• Recommended rope length: 10–15 m
• Operating temperature range: 0°C to 40°C
