ToolkitRC ST8 servo tester
ST8 Servo Tester visually displays servo performance data. It is a true all-in-one device with up to 28V output, 8-channel signal output, integrated current measurement, graph data display and much more.
Characteristics:
- 4 channels for programmable independent signals
- 8 channels as signal outputs
- Various measurement modes (speed, count, steps, linear)
- Support external input for PWM, PPM and SBUS signals
- Measuring accuracy to the millisecond.
Technical Specifications:
| Input voltage: | 7.0-28.0V, max 10A |
| Main Output Port: | 5.0-28.0V, max 10A |
| Signal port: | 5.0V-8.4V, max 4A/S1-S4 |
| Output voltage: | 5.0V-8.4V, Max 4A/S4 Ext. |
| Output signal: | 100us-2900us, 33-1000Hz, S1-S4 PWM 500us-2500us, S5 PPM 8 channels, S5 SBUS 16 channels, S5 |
| Rotation range P1: | 1000us-2000us, P1 |
| Micro USB: | Upgrade, USB3.0 |
| Display: | LCD, 2.4'' TFT RGB 320x240px |
| Dimensions: | 99x68x26mm |
| Libra: | 120g |

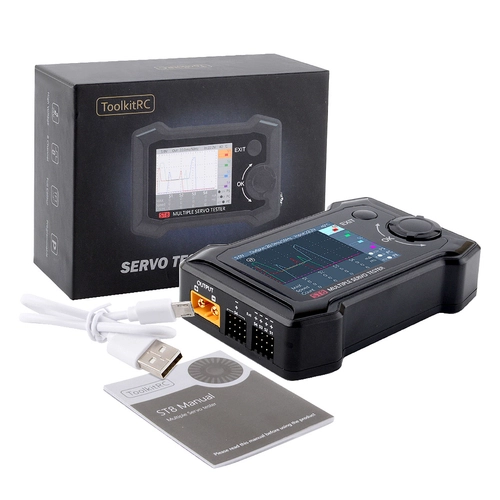

Included:
- 1x ST8 servo tester
- 1x micro-USB cable
- 1x User Manual
Specification ToolkitRC ST8 servo tester
Brand
ToolkitRC
Symbol
TK30500
Producer code
6972969830094
