ToolkitRC M8DAC Battery Charger

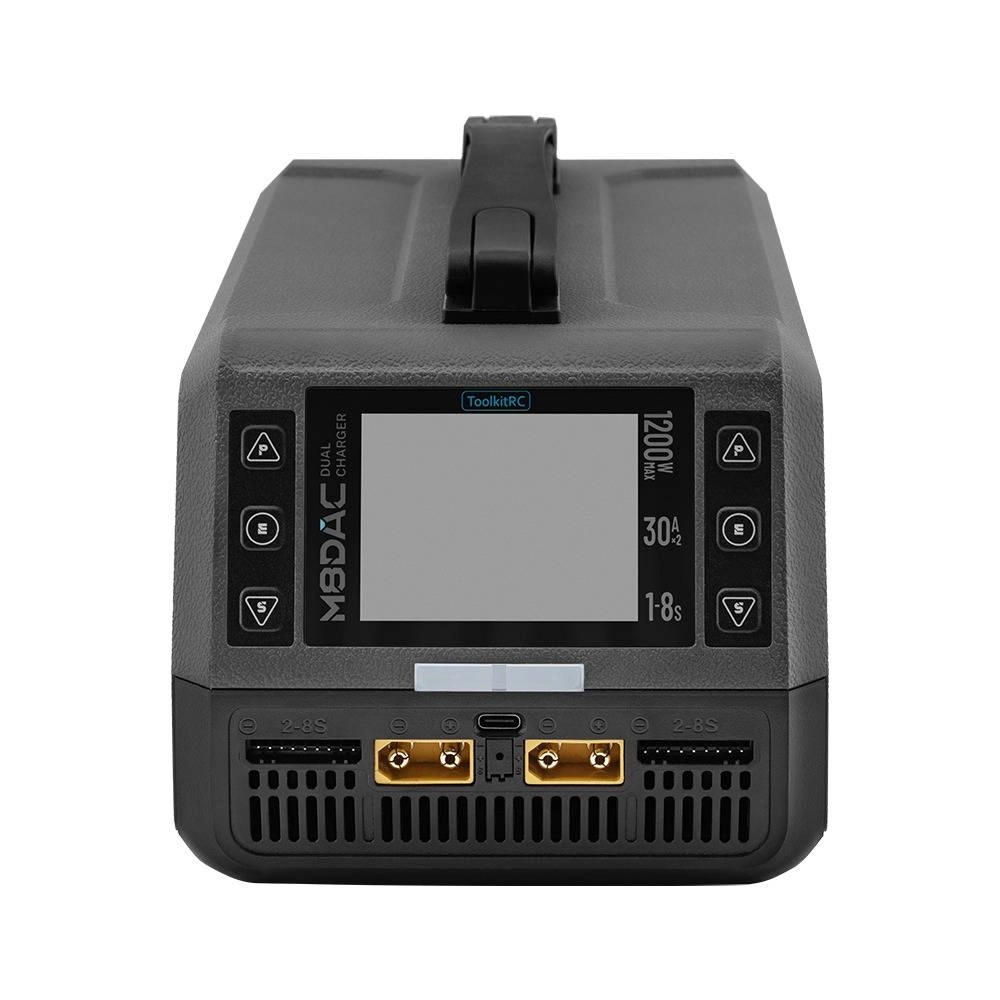

ToolkitRC M8DAC 1200W 50A Dual Output Charger

ToolkitRC M8DAC is a powerful, smart dual-channel charger built for hobbyists who need serious performance for high-capacity LiPo and LiHV batteries. With up to 1200W total charging power, intelligent power distribution between two channels, and support for 1–8S packs, it is a great choice for RC pilots, drivers, and builders who want fast, precise, and reliable battery care. The bright 2.8-inch IPS display, real-time status lighting, and advanced safety features make everyday charging easier, safer, and more efficient.

Key Features

• Dual output design with smart power allocation between channels
• Up to 1200W total charging power for demanding battery setups
• Supports LiPo / LiHV 1–8S batteries
• Advanced battery management with balancing, storage, and discharge functions
• Large 2.8-inch IPS screen with a clear, user-friendly interface
• 65W USB-C fast charging output with PD / QC / PPS / AFC / SCP support
• Dynamic light bar for real-time charging status indication
• Built-in carrying handle for easy transport
• Automatic fan speed adjustment for efficient cooling
• Wide AC input range 100–240V for convenient use worldwide

Advanced Safety Features

• Short-circuit protection
• Voltage protection
• Reverse polarity protection
• Current protection
• Capacity protection
• Temperature protection
• Time-out protection
• Power-loss protection
• V0 flame-retardant housing

Specifications

• Input voltage: AC 100–240V, up to 1300W max
• Battery types: LiPo / LiHV 1–8S
• Charging power:
  • 1.0–30.0A @ 600W ×2 (ASYC)
  • 1.0–50.0A @ 1200W (SYNC)
• Discharge power:
  • 1.0–5.0A @ 50W ×2 (ASYC)
  • 1.0–10.0A @ 100W (SYNC)
• Balance current: 2000mA @ 4.2V
• USB-C output: 5–20V @ 65W PD / QC / PPS / AFC / SCP
• Internal resistance measurement: 1mΩ–9.9Ω @ 1–8S
• Output connectors: 2× XT90 male, 1× USB Type-C
• Dimensions: 280 × 138 × 142 mm
• Weight: 2350 g

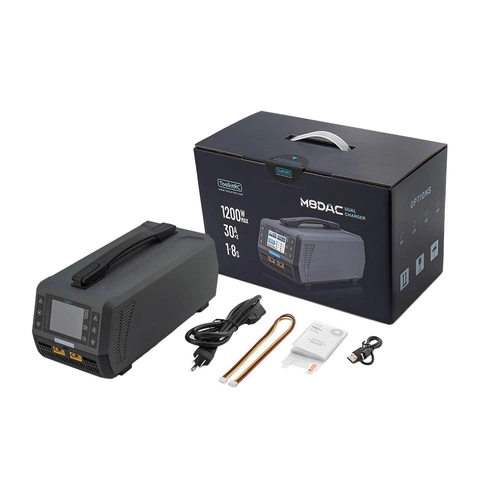

What’s in the Box

• 1× ToolkitRC M8DAC 1200W 50A Dual Output Charger
• 1× AC power cable
• 1× USB cable
• 1× signal cable
• 1× quick start guide
• 1× screen protector
