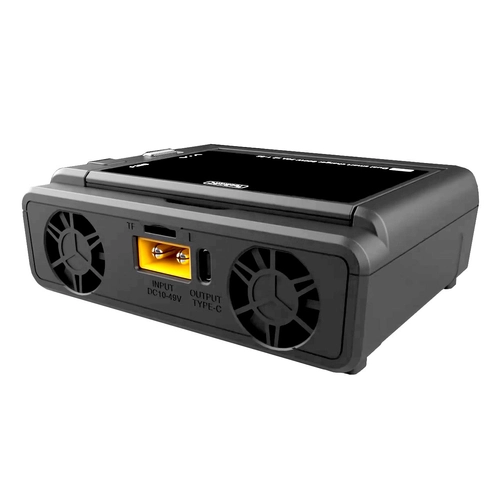

ToolkitRC M8D LiPo 2-Channel Charger 1-8S 30A DC 10-49V
ToolkitRC M8D LiPo 2-Channel Charger 1-8S 30A DC 10-49V
The M8D charger with a tilting touch screen is an efficient and compact 2-channel charger, including for 8S lithium batteries. With a total power of 1,600 W and a charging current of 50 A in synchronized mode, it ensures that batteries are reliably supplied with the energy they need. Moreover, it has a 65W fast charging function that allows you to get useful results even in a short time.
New UI design first seen on the M8D. Makes touchscreen operation as simple and intuitive as possible. For example, the settings menu mainly features sliders and on/off switches, while charging can be controlled via buttons on the home screen. The display itself is optimized to clearly display the most important information from both channels. In addition to the attractive user interface design, the battery destruction feature is also new. This feature ensures that used batteries can be disposed of safely and legally at the end of the process.
Characteristics:
- Charging power up to 1600 W and maximum charging current 50 A
- Maximum discharge power 800W
- 2 channels and fast charging function
- Tiltable 3.5-inch touch screen with a resolution of 480x320px
- Easy-to-use user interface
- Includes a USB-C port
- Various security features
Technical Specifications:
Input voltage: | DC 10-49V, max. 60A |
Charging power: | max. 30 A, 800 W x2 (asynchronous mode) max. 50 A, 1600 W x2 (synchronous mode) |
Discharge power: | max. 30 A, 800 W (recycling mode) max. 10 A, 40 W (normal mode) |
Charging Accuracy: | - |
USB-C: | 5-20V at 65W or upgrade PD QC PPS AFC FCP SCP PE SFCP |
Current balance: | 2000mA, 4.2V |
Cells: LiPo/LiFe/LiIon/LiHV/LTO | 1-8S |
Cells: NiMH | 1-20 seconds |
Battery voltage Pb: | 1-15 seconds |
Tension: | - |
Display: | IPS 3.5'', 480x320px touch LCD |
Dimensions: | 140x110x50mm |
Weight: | 450g |
Included:
- 1x M8D charger
- 1x USB-C cable
- 1x XT90 input cable
- 1x Screen Protector
- 1x Manual
