ToolkitRC M8AC Charger

ToolkitRC M8AC Charger

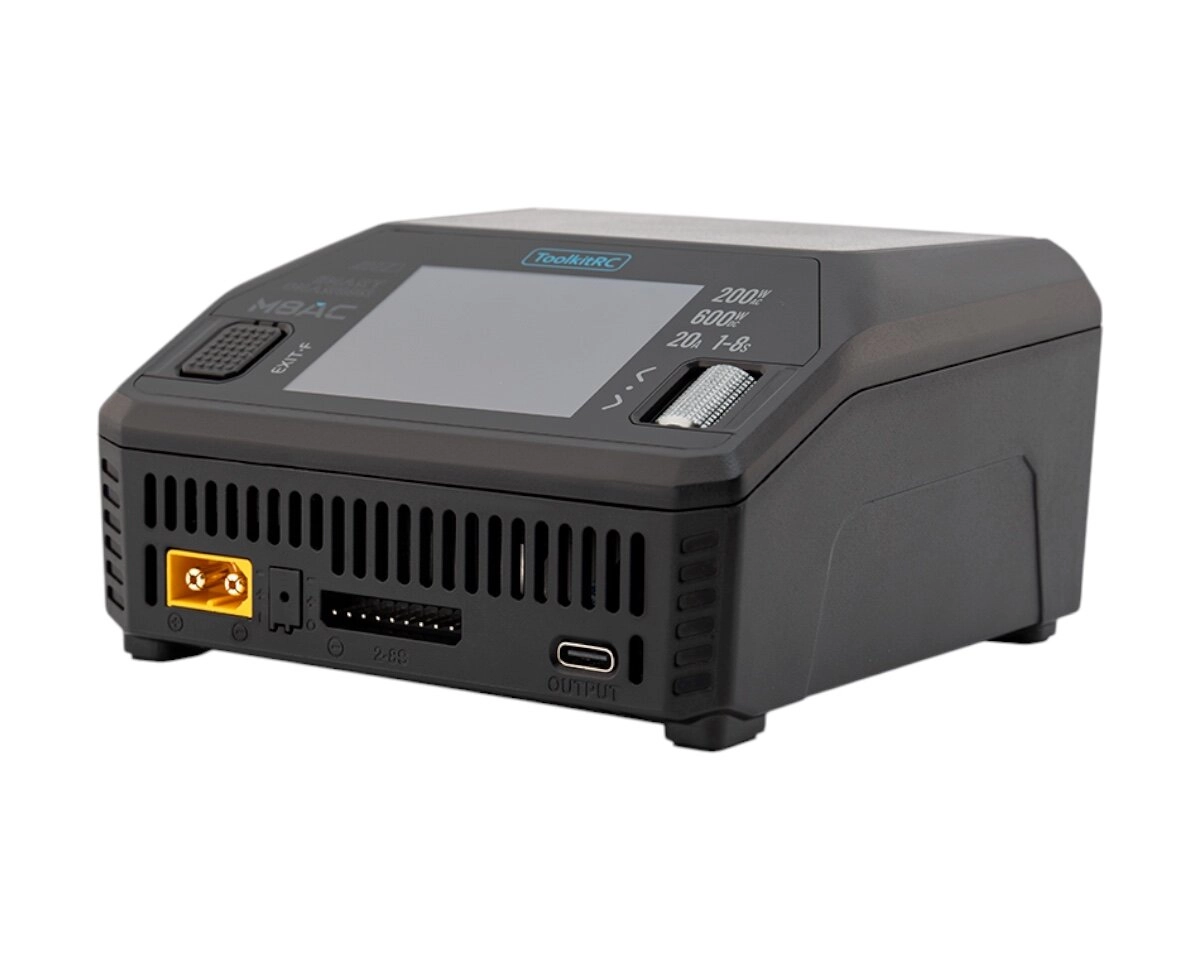

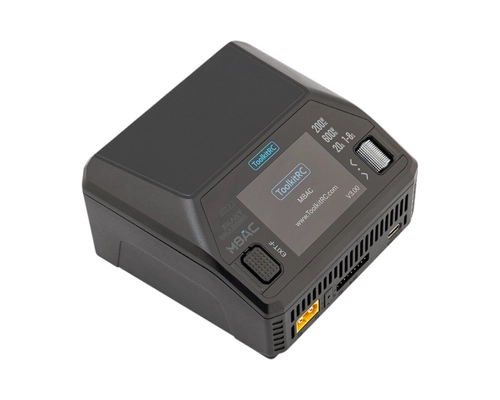

Meet the ToolkitRC M8AC LiPo 1–8S 20A AC/DC — a compact, high-performance charger built for RC hobbyists who want fast charging, broad battery support, and useful workshop functions in one device. With up to 600W on DC, 200W on AC, and a maximum charging current of 20A, the M8AC is ready for everything from everyday packs to more demanding charging setups.

This versatile charger supports a wide range of battery chemistries, making it a practical all-in-one solution for model aircraft, drones, cars, boats, and other RC gear. The clear 2.4-inch IPS color display keeps everything easy to read, while the intuitive menu helps you quickly access charging, discharging, testing, and power supply functions.

On top of that, you also get 65W USB-C fast charging, advanced battery tools, and extra RC-focused features like a servo and signal tester. If you want a charger that does more than just charge, the ToolkitRC M8AC is a seriously capable bench companion.

Key Features

• High charging power: up to 600W (DC) and 200W (AC)
• Fast charging current: up to 20A
• Wide battery compatibility: LiPo, LiHV, LiFe, Li-Ion, LTO (1–8S), NiMH (1–20S), Pb/Lead-acid (1–12S)
• Strong balancing performance: balance current up to 1000mA
• Excellent balancing accuracy: < 0.005V
• Battery discharge and recycle modes
• Built-in power supply function
• Servo and signal tester: PWM / PPM / SBUS
• USB-C fast charging: up to 65W
• Advanced safety protections
• Temperature-controlled cooling fan
• Bright 2.4-inch IPS display for comfortable operation

Supported Battery Types

• Lithium batteries: LiPo, LiHV, LiFe, Li-Ion, LTO (1–8S)
• NiMH batteries: 1–20S
• Lead-acid batteries: 1–12S

Technical Specifications

• Input voltage:
  • AC 100–240V / max. 2.5A
  • DC 7–35V / max. 25A
• Charging power:
  • AC: up to 200W
  • DC: up to 600W
  • Charge current range: 0.1–20A
• Internal discharge:
  • 0.1–3A @ 20W
• External discharge (Recycle):
  • 0.1–20A @ up to 600W
• USB ports:
  • USB-C up to 20V / 65W (PD/QC and more)
  • USB-A
• Display: 2.4" IPS LCD, 320 × 240 px
• Dimensions: 108 × 113 × 62 mm
• Weight: approx. 500 g

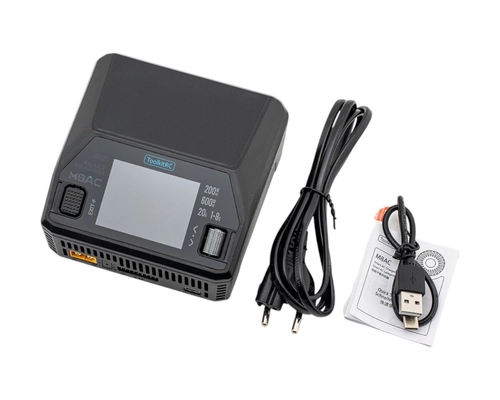

What’s in the Box

• 1 × M8AC charger
• 1 × AC power cable
• 1 × USB cable
• 1 × quick start guide
• 1 × screen protector
