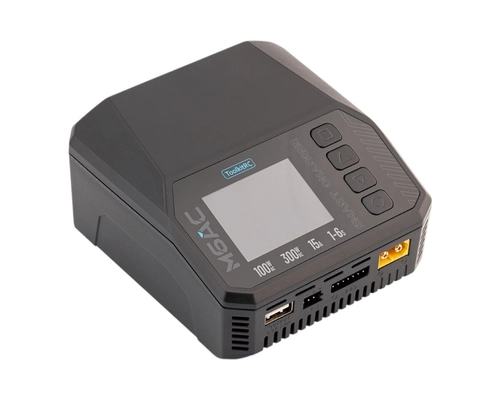

ToolkitRC M6AC Charger

ToolkitRC M6AC Charger

Meet the ToolkitRC M6AC — a compact, versatile AC/DC charger built for RC hobbyists who want solid performance, broad battery compatibility, and handy workshop functions in one device. It supports lithium batteries up to 6S, delivers up to 100 W on AC power and up to 300 W on DC power, and offers a maximum charge/discharge current of 15 A for fast, dependable battery management.

The ToolkitRC M6AC is more than just a charger. It is also a practical all-in-one tool for checking, measuring, and managing batteries with precision — ideal for RC cars, planes, drones, and other hobby setups.

Key Features

• High charging power:
  • Up to 300 W (DC)
  • Up to 100 W (AC)
• Maximum charge / discharge current: 15 A
• Wide battery compatibility:
  • LiPo / LiHV / LiFe / Li-Ion / LTO: 1–6S
  • NiMH: 1–16S
  • Pb / Lead-acid: 1–10S
• Internal discharge: up to 15 W
• External discharge (Recycle mode): up to 300 W
• Multi-function capabilities:
  • PWM / PPM / SBUS signal tester
  • Watt meter
  • Adjustable CC/CV power supply (1–28 V, 0.5–15 A)
• Advanced battery diagnostics:
  • Battery voltage measurement
  • Internal resistance measurement
  • Configurable cut-off voltage (TVC)
• Advanced protection features for safer operation
• Multi-language user interface

Technical Specifications

• Input voltage:
  • AC 100–240 V, max. 120 W
  • DC 7–35 V, max. 30 A
• Charging power / current:
  • AC: up to 100 W
  • DC: up to 300 W
  • Current range: 0.1–15 A
• Internal discharge:
  • 0.1–3 A @ 15 W
• External discharge (Recycle):
  • 0.1–15 A @ 300 W
• Balancer:
  • 1000 mA @ 4.2 V
  • Accuracy: < 0.005 V
• USB:
  • USB-A 5 V / 1 A (10 W)
  • Firmware update support
• Display: 2.0" IPS LCD, 320 × 240 px
• Dimensions: 108 × 106 × 60 mm
• Weight: approx. 350 g

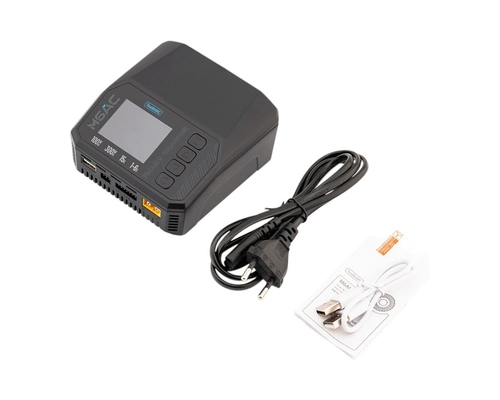

What’s in the Box

• 1× M6AC charger
• 1× AC power cable
• 1× USB-A cable
• 1× quick start guide
• 1× screen protector
