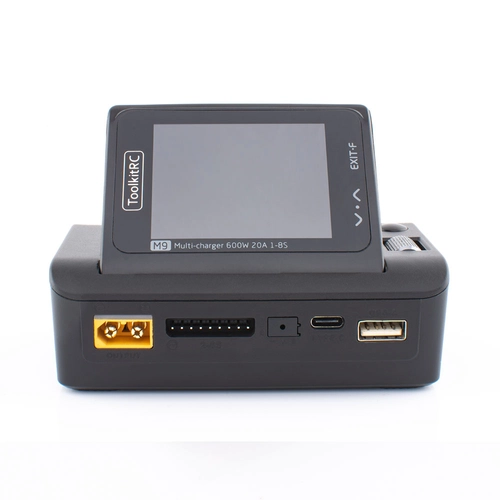

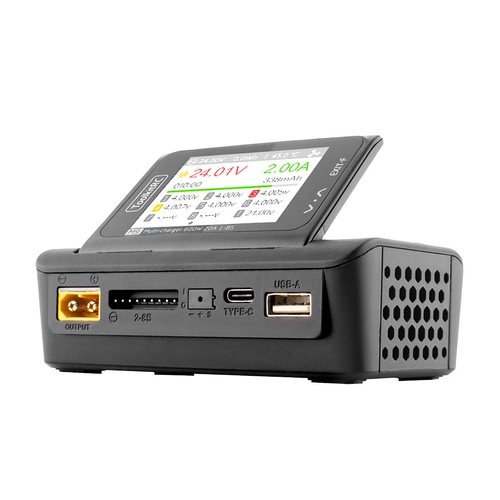

ToolkitRC Charger DC 7-35V RC M9 LiPo 1-8S 20A
With its powerful performance, unmatched design and numerous customization options, the M9 charger is recommended by many. The foldable color display provides the necessary comfort and a clear image even in full sun. Charging 2-8S LiPo batteries and up to 20S NiMH batteries will be easy. Even mobile devices such as smartphones, MP3 players, etc. can be connected via the USB Type-A and Type-C outputs to recharge the batteries with 65W of power. The M9 is not only rechargeable, it also has several additional programs to make everyday RC life easier. Balancer charger, watt meter, signal source and DC output are all combined in one handy device.
Characteristics:
- DC charging power 600W and maximum charging current 25A
- Compact design - perfect for travel
- High-contrast color LCD display that can be tilted up to 80°
- Freely customizable start screen and voice messages
- Serves as a signal source and tester (PWM, PPM, SBUS)
Technical Specifications:
Input voltage: | DC 7.0-35.0V, Max 25A |
Charging current: | 0.5-2.5A, 25W |
discharge current: | 600W, max. 20A (recycling mode) 20W, 3A (normal mode) |
Balance current: | 1000mA, 4.2V |
USB: | 65W, 5.0-20.0V or update via USB-A |
Cells: LiPo/LiHV/LiFe/Lion/LTO: | 1-8S |
Cells: NiMH: | 1-20S |
Pb battery voltage: | 1-10S |
Display: | LCD, IPS 2.4'' 320x240px |
Dimensions: | 108x71x36mm |
Libra: | 235g |
Measurement and output:
Measurement | PWM | 880us-2200us, 20-400hz |
PPM | 880us-2200us x8 channels, 20-50Hz | |
SBUS | 880us-2200us x16 channels, 20-100hz | |
Exit | PWM | 500us-2500us, 20-1000hz |
PPM | 880us-2200us x8 channels, 20-50Hz | |
SBUS | 880us-2200us x16 channels, 20-100Hz | |
steep | 1.0-35A, 1-20A, mode: CC+CV |
Included:
- 1x M9 charger
- 1x USB cable
- 1x User Manual
