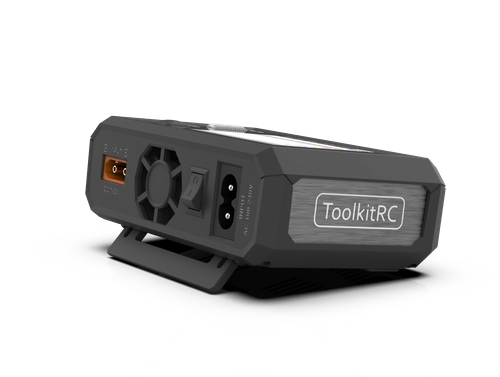

ToolkitRC AC/DC RC M7AC LiPo 1-6S 15A charger
The M7AC is a charger with many different functions, such as charging and discharging. However, it can be used as a signal measuring device or directly as a signal source for PWM, PPM and SBUS signals.
Characteristics:
- Charging power up to 300W and a maximum charging current of 15A
- Max discharge power 300W
- All-in-one
- Charger
- Voltage, resistance, PWM/PPM/SBUS signal meter
- Reproducing PWM/PPM/SBUS signals
- Multilingual user interface including voice output
- Upgradable via USB
- Various security checks
Technical Specifications:
| Input voltage: | AC 100-240V, Max 100W DC 7-35V, Max 20A |
| Charging power: | 0.1-15A, 300W |
| discharge power: | 0.1-15A, 300W (Recording Mode/External) 0.1-3A, 15W (internal mode) |
| Charging Accuracy: | <0.005V |
| USB A: | 5.0V, 10W (or upgrade) |
| Balance current: | 800mA, 4.2V |
| LiPo/LiFe/LiIon/LiHV cells | 1-6S |
| Cells: NiMH/NiCd | 1-16S |
| Pb battery voltage: | 1-10S |
| Tension: | 1.0V-5.0V, 1-6S |
| Display: | LCD, IPS 2.4'' 320x240px |
| TF card: | It supports from 128MB to 16GB |
| Dimensions: | 112x73x38mm |
| Libra: | 245g |
Measurement and output :
| Measurement | PWM | 880us-2200us, 20-400hz |
| PPM | 880us-2200us x8 channels, 20-50Hz | |
| SBUS | 880us-2200us x16 channels, 20-100hz | |
| Exit | PWM | 500us-2500us, 20-1000hz |
| PPM | 880us-2200us x8 channels, 50Hz | |
| SBUS | 880us-2200us x16CH, 74hz | |
| Power | 0.5-15A, 1-28V, mode: CC+CV |
Included:
- 1x M7AC charger
- 1x power cable
- 1x USB cable
- 1x Display Protection
- 1x User Manual
Specification ToolkitRC AC/DC RC M7AC LiPo 1-6S 15A charger
Brand
ToolkitRC
Symbol
TK12200
Producer code
6972969830186
Status
New
