Spraying system for drone DJI Agras T100
2 582,90 €

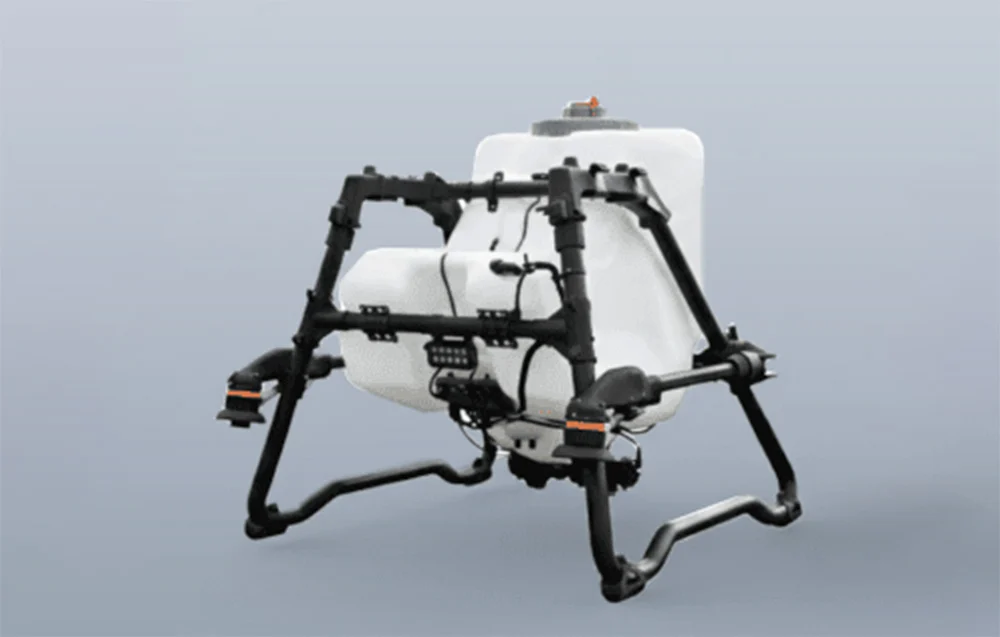

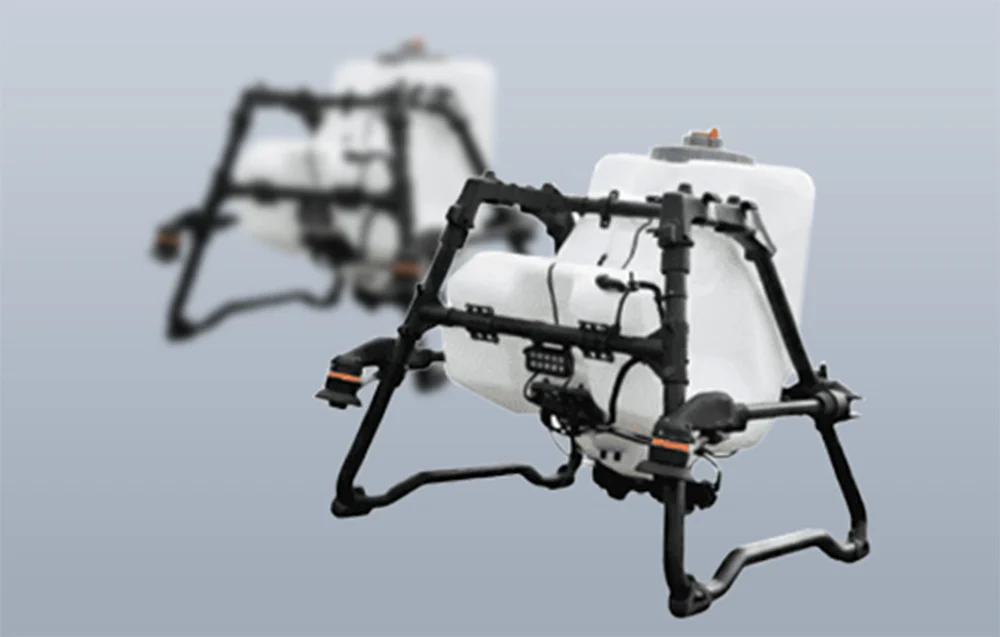

Spraying System for the DJI Agras T100 Drone
The spraying system for the DJI Agras T100 is built for demanding large-area agricultural operations, delivering the performance, precision, and repeatability needed for efficient fieldwork. With an integrated 100 L tank, accurate liquid atomization, flight speeds of up to 20 m/s, an effective spraying width of 5-13 m, and a maximum flow rate of up to 30 L/min in the standard configuration, this setup is designed to help cover more ground in less time. An operating payload capacity of up to 100 kg makes it an excellent choice for users who need serious capability from their agricultural drone setup.
Why choose this spraying system?
- Designed for the DJI Agras T100 agricultural drone
- Large 100 L tank for extended spraying sessions
- Up to 100 kg operating payload capacity
- Effective spraying width from 5 to 13 m
- Droplet size range from 50 to 500 μm for versatile applications
- Maximum flow rate up to 30 L/min as standard, or 40 L/min with the optional 4-sprinkler setup
- Stable liquid delivery thanks to dual magnetically driven impeller pumps
- Real-time flow monitoring with a dual-channel electromagnetic flow meter
Flexible application and efficient atomization
The system is designed to perform well in a wide range of working conditions. Its adjustable droplet size range of 50 to 500 μm makes it easier to match spray characteristics to specific tasks. An optional liquid-cooled mist sprinkler is also available, producing ultra-fine 50 μm droplets that are especially useful for penetrating dense tree canopies. Proper atomization helps ensure even plant coverage, which directly improves treatment quality and overall spraying efficiency.
Reliable liquid delivery and precise flow control
The system uses magnetically driven impeller pumps that offer strong corrosion resistance and stable performance even at high flow rates. Their optimized design and increased chamber capacity support smooth spraying in more demanding operating scenarios. In addition, the dual-channel electromagnetic flow meter provides precise real-time flow measurement and dynamic dosage control. Because the process takes place without direct contact with the working liquid, component durability is improved while maintaining a high level of dosing accuracy.
Technical specifications
| Manufacturer code | CP.AG.00001002.01 |
|---|---|
| Model | LS100 |
| Dimensions | 880 × 870 × 810 mm (folded) / 1020 × 1930 × 810 mm (unfolded) |
| Tank material | HDPE |
| Tank capacity | 100 L |
| Maximum operating payload | 100 kg |
| Sprinkler model | LX07550SX (standard sprinkler) / LX09550SX (optional mist sprinkler) |
| Number of sprinklers | 2 (standard) / 4 (optional) |
| Sprinkler spacing | 1834 mm (outermost sprinklers in 2- or 4-sprinkler configuration) |
| Droplet size | 50-500 μm |
| Effective spraying width | 5-13 m |
| Pump type | Magnetically driven impeller pumps |
| Number of pumps | 2 |
| Maximum flow rate | 30 L/min (standard, with 2 sprinklers) / 40 L/min (optional, with 4 sprinklers) |
| Compatibility | DJI Agras T100 |
Specification Spraying system for drone DJI Agras T100
Brand
DJI
Symbol
CP.AG.00001002.01
Producer code
6937224112148
Warranty
24 months
Entity responsible for this product in the EU
DJI Europe B.V.More
ProducerDJI Europe B.V.Address:
Bijdorp-Oost 6Postal code: 2992City: BarendrechtCountry: NetherlandsE-mail: dealer.nl@dji.com
Responsible entityDJI Europe B.V.Address:
Bijdorp-Oost 6Postal code: 2992City: BarendrechtCountry: NetherlandsPhone number: 180745733E-mail: dealer.nl@dji.com
