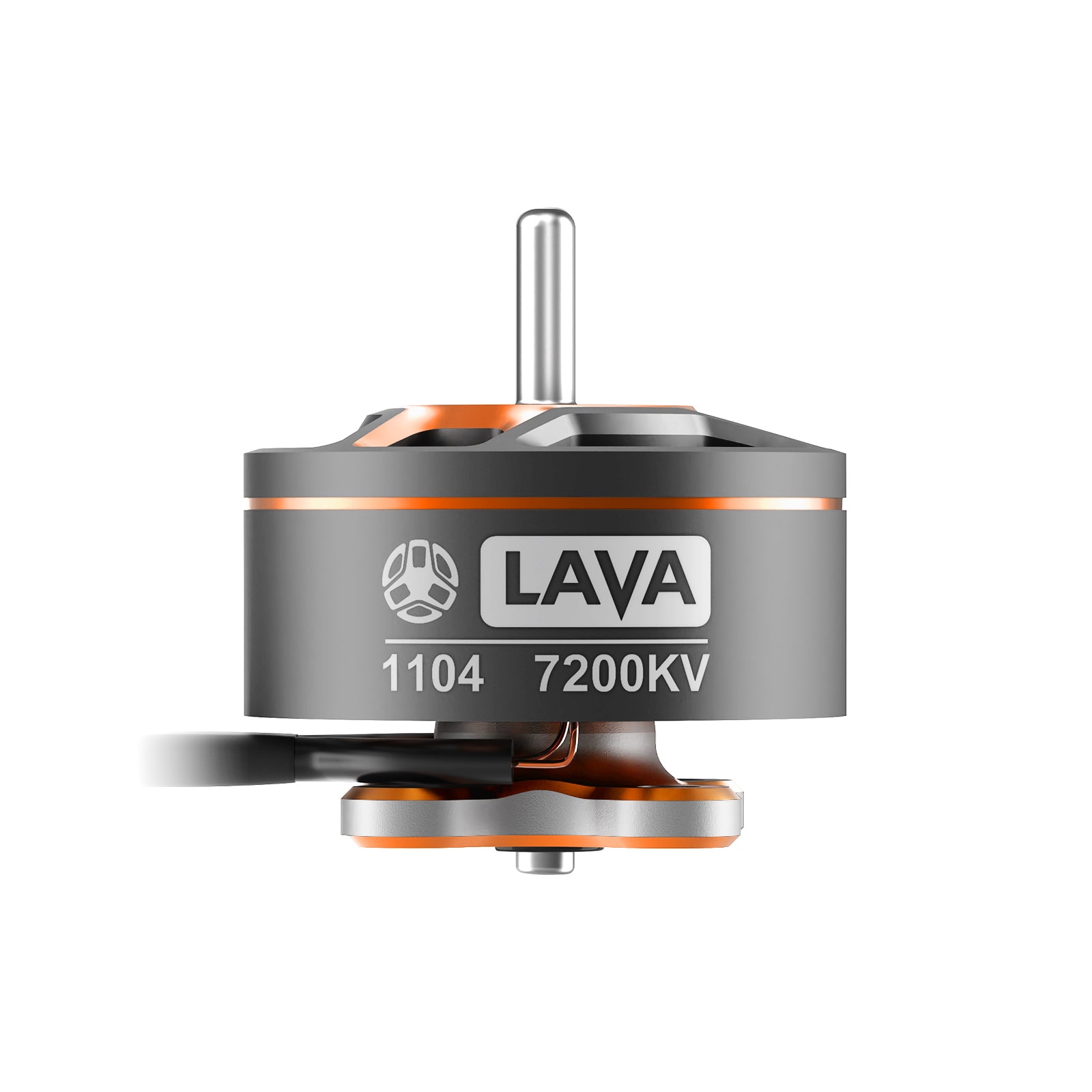

BETAFPV LAVA 1104 7200KV brushless motor – 80 mm wires (1 pc.)
Responsive 3S power for 2.2-inch FPV drones
BETAFPV LAVA 1104 7200KV is a compact brushless motor for 3S-powered 2.2-inch FPV and Cinewhoop drones. It weighs 5.3 g and has a rated maximum power of 122.5 W and current of 10.2 A. Gemfan 2218 three-blade propellers with a 1.5 mm hub are among the recommended accessories.
Shaft and frame mounting
The motor has a 1.5 mm diameter, 5 mm long shaft and mounting holes for compatible micro frames. The supplied package includes one motor and M2 mounting screws. Select the correct wire length and connector for your flight controller.
80 mm version without connector
This variant has 80 mm 28 AWG wires without a pre-installed connector, suitable for configurations that require direct wiring.
Technical specifications
| Manufacturer | BETAFPV |
| Series | LAVA |
| Model | 1104 Brushless Motor |
| Motor type | Brushless (BLDC) |
| KV rating | 7200KV |
| Recommended power supply | 3S LiPo |
| Maximum power | 122,5 W |
| Maximum current | 10,2 A |
| Weight | 5,3 g |
| Shaft diameter | 1,5 mm |
| Shaft length | 5 mm |
| Motor body diameter | 15,2 mm |
| Motor body height | 16 mm |
| Wires | 28 AWG |
| Wire length | 80 mm |
| Pre-installed wire connector | None |
| Motor mounting pattern | 4 × M2, Ø9 mm mounting pattern |
| Propeller mounting | Ø1.5 mm shaft; additional holes 4 × M2, Ø5 mm |
| BETAFPV product code (SKU) | 01050017_1 |
| UPC | 725764954245 |
Package contents
- BETAFPV LAVA 1104 7200KV brushless motor with 80 mm wires – 1 pc.
- M2 × 4 mm mounting screws – 4 pcs.
- M2 × 5 mm mounting screws – 4 pcs.
