BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)
BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)
BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)
BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)
BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)
BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)
Add to shopping listAdd to compare

BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)

Producer:BetaFPV
EAN:725764954252
SKU:31568
Długość przewodu
24mm80mm

Gross price:15,70 €

You can buy for 690 pts.
Net price:
12,77 €
Size
universal
Express checkout 1-Click(without registration)
In the supplier's warehouse
In the supplier's warehouse
Fast delivery
30 days for free returns
This product is not available in a stationary store
Sprawdź ofertę wynajmu
Wynajmij od 353 zł netto / mc

• Oferta dla klienta biznesowego

• Płacisz tylko za korzystanie

• Umowa na 12 miesięcy

• Faktura VAT

wynajmij
After purchase you will receive 6.90 pts.
BetaFPV Brushless Motor 7200KV LAVA Series 1104 - 24mm (1pc)
15,70 €

BETAFPV LAVA 1104 7200KV brushless motor – 24 mm wires (1 pc.)

Responsive 3S power for 2.2-inch FPV drones

BETAFPV LAVA 1104 7200KV is a compact brushless motor for 3S-powered 2.2-inch FPV and Cinewhoop drones. It weighs 5.3 g and has a rated maximum power of 122.5 W and current of 10.2 A. Gemfan 2218 three-blade propellers with a 1.5 mm hub are among the recommended accessories.

Product image: BETAFPV LAVA 1104 7200KV brushless motor – 24 mm wires (1 pc.)
Product image: BETAFPV LAVA 1104 7200KV brushless motor – 24 mm wires (1 pc.)

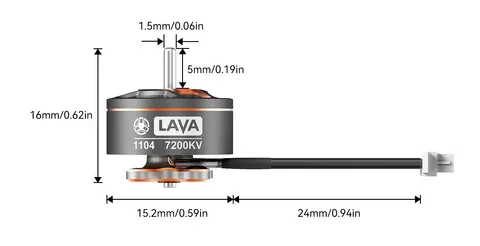

Shaft and frame mounting

The motor has a 1.5 mm diameter, 5 mm long shaft and mounting holes for compatible micro frames. The supplied package includes one motor and M2 mounting screws. Select the correct wire length and connector for your flight controller.

24 mm version with connector

This Pavo20 Pro-compatible variant uses 24 mm 28 AWG wires fitted with a factory connector. It is distinct from the 80 mm version without a connector.

Technical specifications

ManufacturerBETAFPV
SeriesLAVA
Model1104 Brushless Motor
Motor typeBrushless
KV rating7200KV
Recommended power supply3S LiPo
Maximum power122,5 W
Maximum current10,2 A
Weight5,3 g
Shaft diameter1,5 mm
Shaft length5 mm
Wire gauge28 AWG
Wire length24 mm
Pre-installed wire connectorYes
Motor mounting pattern4 × M2, Ø9 mm
Propeller mounting hole spacing4 × M2, Ø5 mm
Compatible droneBETAFPV Pavo20 Pro

Package contents

  • BETAFPV LAVA 1104 7200KV brushless motor with 24 mm wires – 1 pc.
  • M2 × 4 mm mounting screws – 4 pcs.
  • M2 × 5 mm mounting screws – 4 pcs.
