SEQURE SQESC WP14200 IP68 ESC 5-14S Lipo 200A (WP14200 C)

Waterproof Brushless ESC 5–14S LiPo 200A SEQURE SQESC WP14200 IP68

The SEQURE SQESC WP14200 is a high-power, waterproof brushless ESC built for demanding hobby applications on land and in water. With an IP68-rated sealed design, it can operate fully underwater, making it a great choice for RC boats, underwater thrusters, jetboards, electric surfboards, off-road vehicles, agricultural drones, multirotors, helicopters, and fixed-wing models.

Powered by a 32-bit STM32G071 processor, high-current MOSFETs, and a metal aluminum heatsink, this ESC is designed to deliver strong, stable performance even in high-load setups. Its built-in 5.2V 3A continuous BEC can directly power receivers, servos, and other external devices, giving you more flexibility when building your system.

With support for 5–14S LiPo input, 200A continuous current, and up to 350A peak current under good heat dissipation conditions, the WP14200 is ready for serious power-hungry projects. It also supports multiple operating modes including forward-only, bidirectional, and brake mode, so it can adapt to a wide variety of RC and DIY builds.

• IP68 waterproof ESC with deep sealing structure for full underwater operation
• Supports 5–14S LiPo input voltage range: DC 18V–59V
• 200A continuous current and 350A peak current with proper cooling
• 32-bit STM32G071 processor for fast, reliable control
• High-power MOSFET design with aluminum heatsink for improved efficiency and thermal stability
• Built-in 5.2V 3A continuous BEC to power receivers, servos, and accessories
• Supports BLHeli_32, AM32, and ESCape32 firmware
• Compatible with all DShot signals, plus PWM, Oneshot, and Multishot protocols
• Real-time feedback for voltage, current, RPM, temperature, and other operating data
• Visual parameter tuning tool for motor timing, throttle calibration, current sensing, motor direction, telemetry, and more
• Automatic throttle signal detection at power-on
• Multiple protection functions: low-voltage protection, over-temperature protection, locked-rotor protection, and over-current protection
• Dual mounting options: cable ties or screws for easier installation
• Heavy-duty wiring with 8AWG power cable and 10AWG motor cable for stable high-current transmission

Specifications

• Model: SQESC WP14200
• Processor: STM32G071
• Input Voltage: DC 18V–59V (5–14S LiPo)
• Continuous Current: 200A
• Peak Current: 350A
• Supported Firmware: BLHeli_32, AM32, ESCape32
• Signal Protocols: All DShot versions, PWM, Oneshot, Multishot, etc.
• RPM Signal Line: BLHeli_32 (No), AM32 (Yes), ESCape32 (Yes)
• Waterproof Rating: IP68
• Programming Parameter Adjustment: Supported
• Throttle Calibration: Supported
• Motor Timing Adjustment: Supported
• Current Sensing: Supported
• Telemetry Signal: Supported
• Motor Rotation Direction Setting: Supported
• BEC: 5.2V 3A continuous (other voltages can be customized on request)

Cable Specifications

• WP14200 A: Power cable: 8AWG silicone wire 350 mm, motor cable: 10AWG silicone wire 160 mm, signal cable: 5-core 450 mm
• WP14200 B: Power cable: 8AWG silicone wire 350 mm, motor cable: 10AWG silicone wire 2000 mm, signal cable: 5-core 450 mm

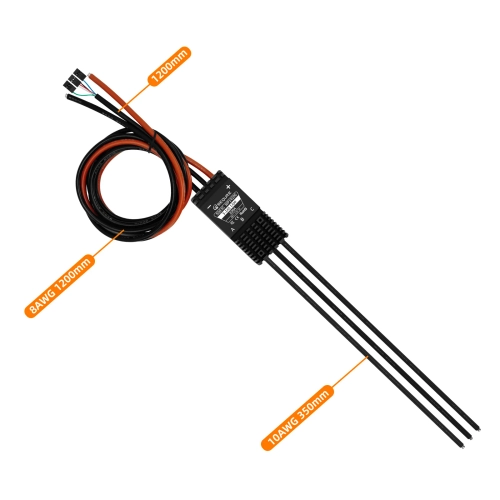

• WP14200 C: Power cable: 8AWG silicone wire 1200 mm, motor cable: 10AWG silicone wire 350 mm, signal cable: 5-core 12000 mm

Dimensions & Packaging

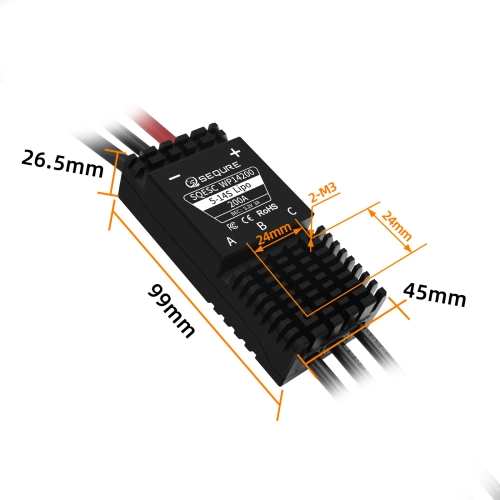

• Product Size: 99 × 45 × 26.5 mm (L × W × H, without wires)

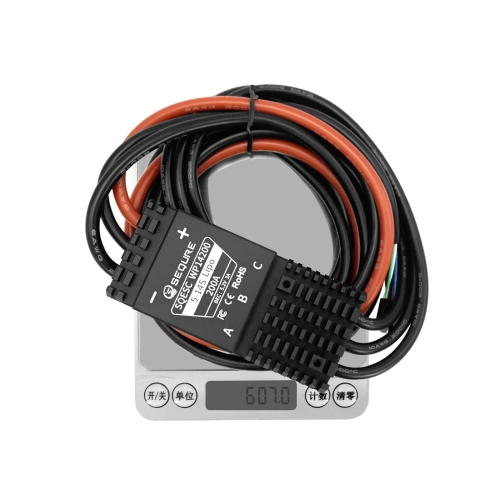

• Product Weight: WP14200 A: 365 g, WP14200 B: 740 g, WP14200 C: 607 g
• Package Size: 230 × 160 × 45 mm
• Package Weight: 620 g
• Outer Carton Package Size: 235 × 165 × 50 mm
• Outer Carton Package Weight: 700 g

Typical Applications

• Multirotor drones
• Fixed-wing aircraft models
• Agricultural drones
• Helicopters
• RC crawlers and off-road vehicles
• RC boats
• Electric surfboards and jetboards
• Underwater thrusters
• Kayaks and SUP boards
• Water sports products and custom hobby builds

What’s in the Box

• ESC WP14200 ×1
• Black cable ties 250 mm ×2
