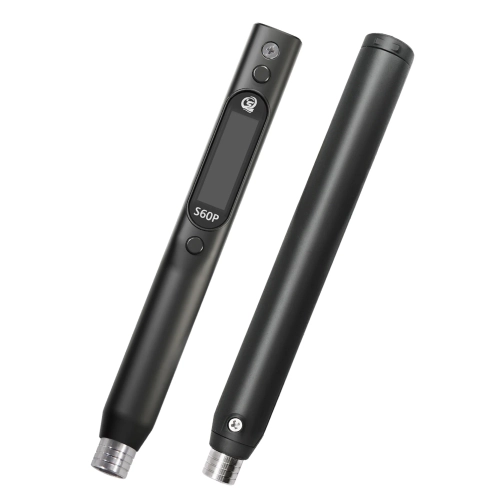

SEQURE S60P soldering iron with 1 tip (tip I)

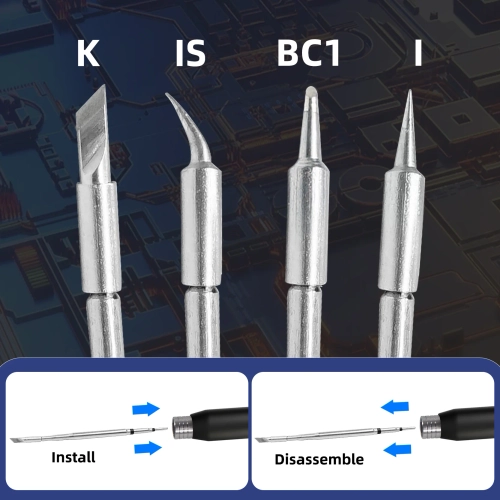

- Compatible with C210 series soldering tip, temperature control range 50℃-500℃/122℉-932℉.
- Operating power supply: supports PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.
- S60P supports PD plug ≥60W, so that the output power is 60W.
- Intelligent temperature control algorithm, supports temperature compensation and self-calibration of temperature.
- The housing is made of industrial special materials, which are highly resistant to high temperature and have effective anti-static treatment.
- OLED display 128*32, built-in buzzer for work reminder.
- Sensitivity can be set to reject interference from environmental factors.
- Supports ℃/℉ switching, left and right screen rotation, software update.
- Available in three languages: Chinese, English.
Product parameters
| Model | S60 | S60P |
|---|---|---|
| Maximum voltage | 12V | 21V |
| Maximum power | 60W | 60W |
| Fastest melting of tin | 2s | 2s |
| Operating temperature range | 50-500℃ | 50-500℃ |
| Screen size | 128*32 OLED | 128*32 OLED |
| Interface type | Type-C | Type-C |
| Power supply method | PD, QC, DC | PD, QC, DC, PPS |
| Protocol selection | Does not support | Supports |
| PD power supply ≥60W | Does not support 60W output power | Supports 60W output power |
Overall Dimensions
| Product Dimensions and Weight | |
|---|---|
| Product Size | 120*15*15mm |
| Product Weight (Net) | 22g |
| Package Size and Weight | |
| Package Size | 125*35*25mm |
| Package Weight | 39g |
| Size and Weight of Outer Packaging | |
| Size of Outer Package | 205*115*40mm |
| Weight of Outer Box | 80g |
Package Contents:
- Host × 1
- Soldering tip × 1
Specification SEQURE S60P soldering iron with 1 tip (tip I)
