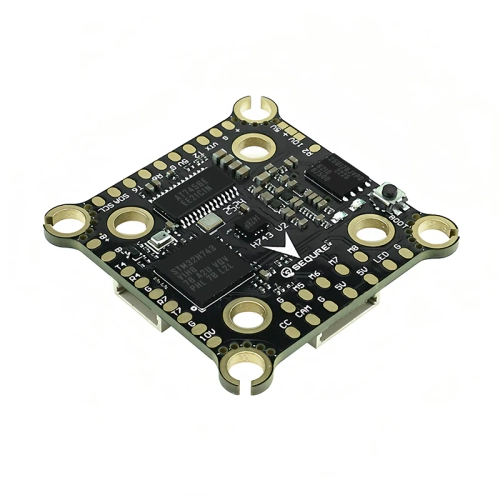

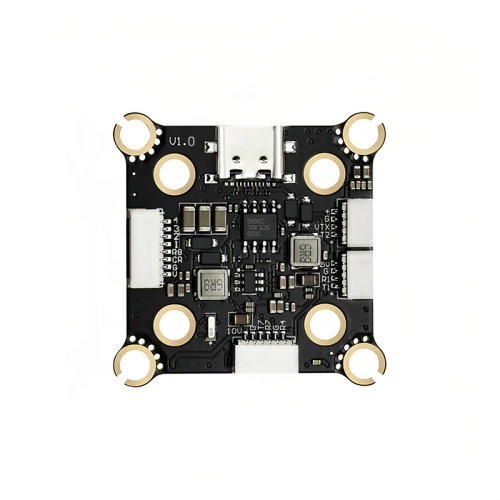

SEQURE H743 V2 ICM42688P Flight Controller FC 4-8S Dual BEC

SEQURE H743 V2 ICM42688P Flight Controller FC 4-8S Dual BEC

(1) Equipped with a high-performance STM32H743 processor, operating at a frequency of up to 480 MHz, ensuring rapid control response times.

(2) Utilizing the ICM42688P gyroscope, this flight controller delivers precise gesture detection and stable control, enhancing system reliability.

(3) The SEQURE H743 features a built-in barometer, OSD, and a large 16 MB blackbox memory for effective flight data recording.

(4) Includes 6 reserved UART ports to meet the needs of most devices.

(5) Capable of controlling up to 8 motors, making it easy to construct an X8 setup.

(6) Equipped with a plug connector and dual BEC outputs, the flight controller provides independent 10V voltage, allowing direct connection to DJI O3 and analog VTX.

(7) Supports a wide input voltage range of 4-8S Lipo, with mounting hole dimensions of 20 mm and 30.5 mm. Its compact design is suitable for various frame types, such as racing, aerial photography, freestyle, etc.

Product Specifications:

Package Contents:

• SEQURE H743 V2 FC x 1
• 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable x 1
• 30AWG 100mm Single-head SH1.0-4P Flat Cable x 2
• 60mm Length 12095 5V Buzzer x 1
• M3*8mm Shock-absorbing Ball (Black) x 5
• M3*6.6mm Shock-absorbing Ball (Black) x 5

Overall Dimensions:
