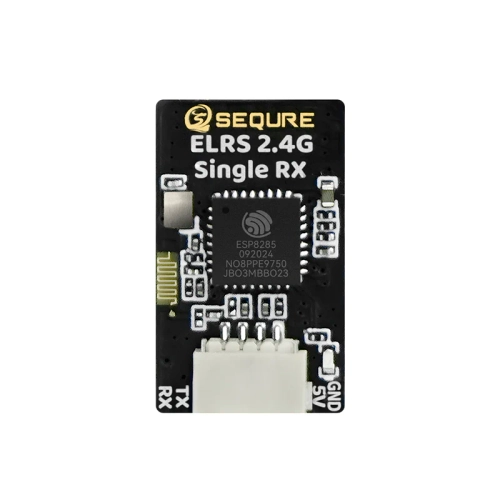

SEQURE ELRS 2.4GHz Single RX Single Antenna Receiver

SEQURE ELRS 2.4GHz Single RX Receiver with Single Antenna (80mm)

The SEQURE ELRS 2.4GHz Single RX is a compact, lightweight receiver designed for RC pilots who want reliable ExpressLRS performance, fast response, and stable telemetry in a tiny form factor. Built for hobby-grade FPV and racing setups, it combines strong interference resistance, low latency, and flexible installation options.

Key features:

• Operates on the 2.4GHz band for strong anti-interference performance and solid signal penetration.
• Supports ultra-fast F1000Hz and F500Hz refresh rates for low-latency control, ideal for racing and demanding FPV flying.
• Built-in TCXO (temperature-compensated crystal oscillator) helps maintain stable operation across changing temperatures.
• Integrated high-power PA + low-noise LNA with 100mW (20dBm) telemetry for more stable in-flight data transmission.
• Supports both SH1.0-4P connector and 2.54-4P pads for flexible wiring and easy integration into different builds.
• Single antenna design with IPEX1 antenna interface.
• Compact and ultra-lightweight construction, perfect for space-sensitive RC and FPV projects.

Specifications:

• Model: SEQURE ELRS 2.4GHz Single RX
• Factory firmware: SEQURE 2.4GHz Single RX_3.4.0
• MCU: ESP8285
• RF chip: SX1281
• Oscillator type: TCXO (temperature-compensated crystal oscillator)
• PA / telemetry power: 100mW (20dBm)
• LNA: Yes
• Indicator: LED
• Frequency band: 2.4GHz ISM
• Protocol: CRSF
• RF mode: Single antenna
• Antenna interface: IPEX1
• Receiver interface: SH1.0-4P connector, 2.54-4P pads
• Operating voltage: 5V

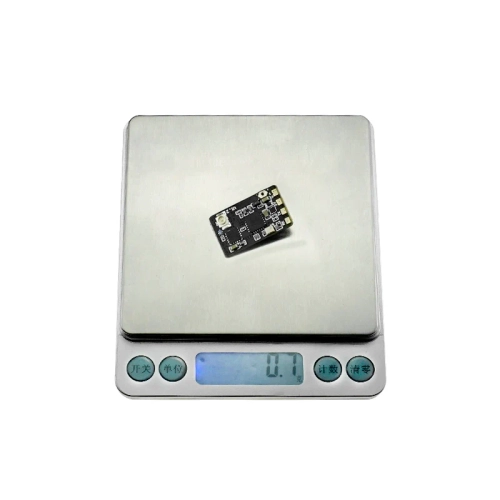

• Weight: 0.7g
• Dimensions: 18 × 10.8 × 5mm

Package contents:

• SEQURE ELRS 2.4GHz Single RX ×1
• 2.4GHz 80mm antenna ×1
• 30AWG 100mm single-ended SH1.0-4P cable ×1
• 12 × 30mm heat shrink tube ×2

Packaging information:

• Product size: 18 × 10.8 × 5mm
• Product net weight: 0.7g
• Package size: 150 × 100 × 15mm
• Weight with packaging: 8g
• Outer carton size: 200 × 110 × 40mm
• Weight with outer carton: 52.5g
