SEQURE Blueson A2 30*30 2-8S 70A ESC with AM32 Firmware

SEQURE Blueson A2 AM32 ESC 30×30 2–8S 70A

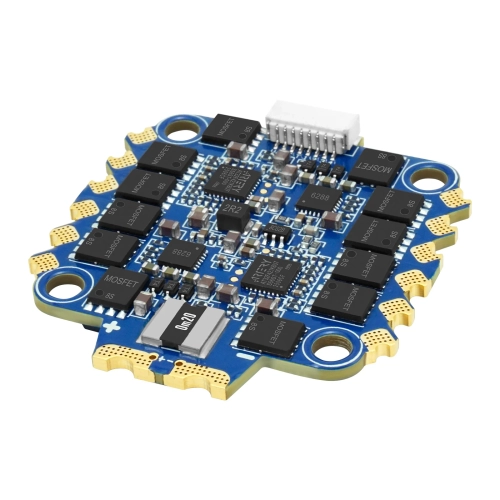

The SEQURE Blueson A2 4-in-1 ESC is a high-performance choice for FPV pilots and RC hobbyists looking for reliable power delivery, smooth throttle response, and broad battery compatibility. Built around a fast 32-bit processor and running AM32 firmware, this ESC is designed to keep up with demanding builds, from powerful freestyle setups to larger heavy-lift platforms.

Its high-quality PCB with a thick copper layer improves current handling and heat dissipation, while premium MOSFETs help boost efficiency and overall flight performance. The result is cleaner power, responsive motor control, and a more confident flying experience.

With support for a dynamic PWM frequency range from 8 kHz to 128 kHz, the Blueson A2 delivers precise speed control and smoother throttle feel. It also supports 2–8S LiPo input, giving you the flexibility to use it across a wide range of aircraft configurations.

The 30.5 × 30.5 mm mounting pattern makes it a great fit for larger frames and higher-payload builds. Enlarged angled solder pads help keep motor wires neatly arranged and make soldering easier during installation.

Key Features

• AM32 firmware for fast, modern ESC performance
• 32-bit AT32F421 processor for precise motor control
• 2–8S LiPo support for versatile build compatibility
• 70A continuous current on 8S
• 150A peak current on 8S
• Dynamic PWM frequency: 8 kHz–128 kHz
• High-quality thick-copper PCB for improved conductivity and cooling
• Premium MOSFETs for efficient power delivery
• 30.5 × 30.5 mm mounting pattern for easy integration into larger frames
• Enlarged angled solder pads for cleaner wiring and easier soldering
• Telemetry support
• Built-in current sensor

Specifications

• Model: Blueson A2
• Processor: AT32F421
• Firmware: AM32
• PWM Frequency: 8 kHz–128 kHz
• Input Voltage: 2–8S LiPo
• Continuous Current: 70A (8S)
• Peak Current: 150A (8S)
• Supported Protocols: DShot600 / DShot300 / DShot150, Oneshot, Multishot, PWM
• Telemetry: Yes
• Current Sensor: Yes
• BEC: No
• Mounting Hole Spacing: 30.5 × 30.5 mm, Φ4 mm / M3

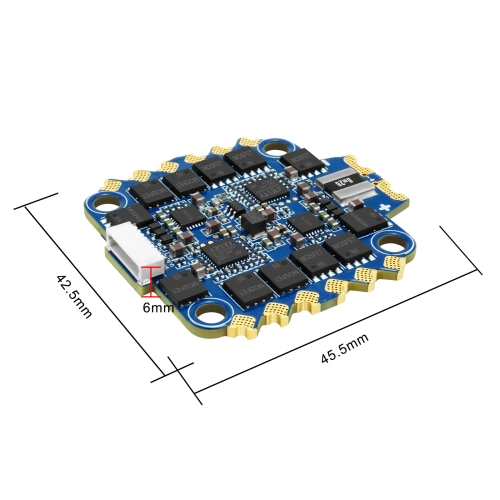

• Product Dimensions: 45.5 × 42.5 × 6 mm

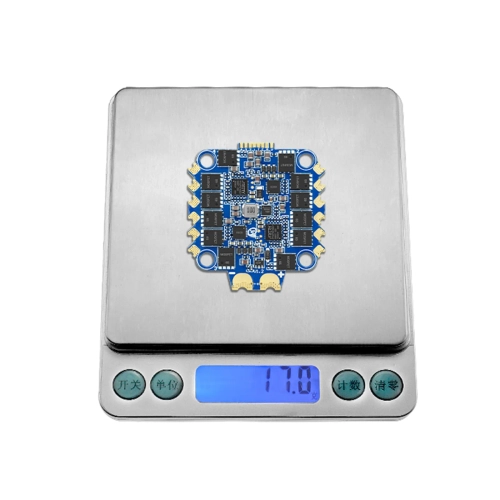

• Product Weight: 17 g

Package Includes

• SEQURE Blueson A2 4-in-1 ESC × 1
• 30AWG 40 mm cable with reverse dual SH1.0-8P connector × 1
• 30AWG 60 mm cable with single SH1.0-8P connector × 1
• 12AWG 100 mm power wires (black/red) × 2
• XT60H-M connector (male, black) × 1
• 35V 680 µF capacitor × 1
• M3 × 8 mm damping grommets (black) × 5

Packaging Information

• Product Size: 45.5 × 42.5 × 6 mm
• Net Weight: 17 g
• Package Size: 90 × 60 × 36 mm
• Package Weight: 65 g
• Outer Carton Package Size: 150 × 100 × 40 mm
• Outer Carton Package Weight: 115 g
