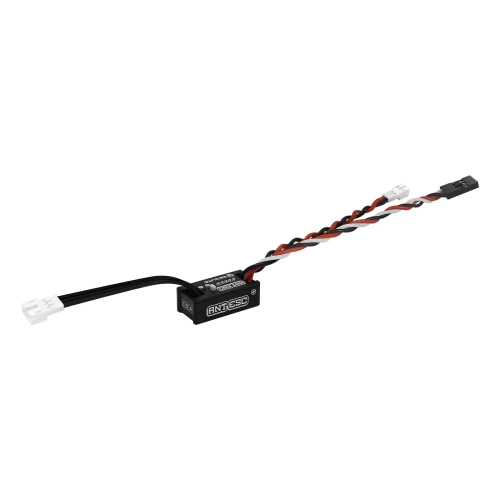

SEQURE ANT ESC 50A for 1/24, 1/18 and 1/16 RC Crawler Cars

The SEQURE ANT ESC 50A is a compact brushless speed controller designed for small-scale RC crawler builds where space, balance and control really matter. Built to work with the 1520 motor, this mini power system is a great fit for 1/24, 1/18 and 1/16 RC crawler models, offering strong performance without upsetting your vehicle’s original weight distribution or center of gravity.

Its sealed design, glue-filled PCB protection and aluminum heatsink housing help deliver reliable water-resistant and dust-resistant protection for demanding off-road use. High-quality components such as precision bearings, a hardened motor shaft, reinforced outer rotor, flexible silicone wires, high-temperature-resistant magnets and enameled wire support efficient power delivery, lower energy loss and dependable operation.

The upgraded electronic switch replaces a traditional mechanical switch for easier one-button control, faster response and longer service life. You also get smart parameter tuning via mobile phone or computer, making it easy to adjust motor timing, braking force, throttle mode, low-voltage protection, overheat protection and more to match your driving style and terrain.

Key Features

• Designed for 1/24, 1/18 and 1/16 RC crawler cars
• Compact size helps preserve vehicle balance and center of gravity
• Sealed construction with glue-filled PCB for improved water and dust resistance
• Aluminum heatsink housing for better protection and heat dissipation
• Upgraded electronic power switch with one-button operation
• Programmable settings via phone or computer
• Built-in 6V / 3A BEC for stable output and strong steering servo support
• Supports multiple signal protocols including DShot, PWM, Oneshot and Multishot
• Plug and play with included battery adapter cables for wider compatibility
• RGB LED lighting and current measurement supported

ESC Specifications – ANT ESC

• Input voltage: DC 7V–13V (2–3S LiPo)
• Continuous current: 50A
• Peak current: 100A
• Firmware: ESCape32
• Signal protocol: DShot (all), PWM, Oneshot, Multishot, etc.
• Parameter programming: Supported
• Current sensing: Supported
• RGB LED lighting: Supported
• BEC: 6V / 3A continuous
• Electronic switch: Short press to power on, long press to power off

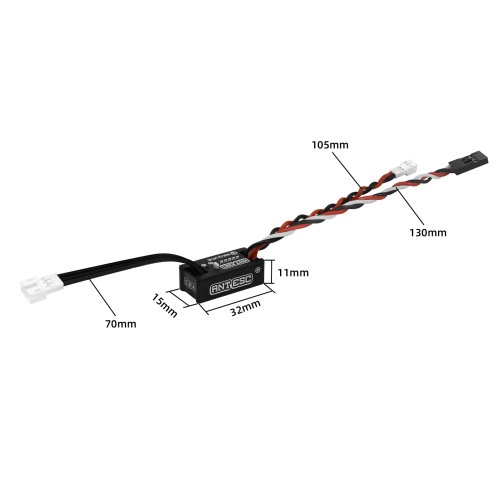

• Wire lengths: Power wire 105 mm, motor wire 70 mm, signal wire 130 mm
• Dimensions: 32 × 15 × 11 mm (without wires)

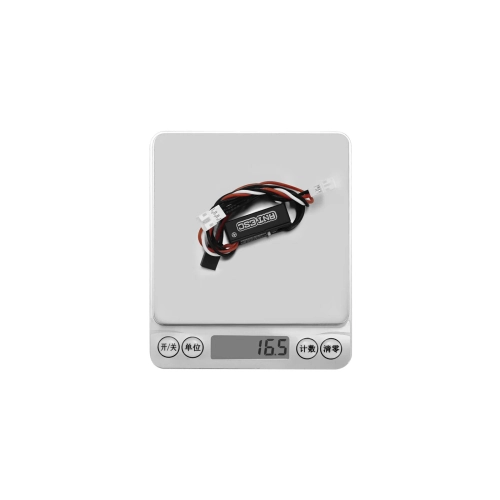

• Weight: 16.5 g (with wires)
• Application: 1/12, 1/16, 1/18, 1/24 models

Motor Specifications – Model 1520

• Operating voltage: 2–3S LiPo
• Slots / poles: 9N12P
• Output shaft diameter: 2.0 mm
• Output shaft length: 9 mm
• KV rating: 3500KV
• Motor wire: 20AWG, 100 mm, PH2.0-3P male connector
• Mounting hole spacing: M2 threads, 9 mm / 10 mm / 12.5 mm spacing
• Dimensions: 15.8 × 20.7 mm (without wires)
• Weight: 16.8 g (with wires)
• Application: 1/16, 1/18, 1/24 models

What’s Included

• ANT ESC ×1
• PH2.0 to JST cable ×1
• PH2.0 to MX2.0 cable ×1
• 3M tape ×1
• Cable ties ×2

Packaging Information

• Product dimensions: 32 × 15 × 11 mm
• Net product weight: 16.5 g
• Package size: 55 × 55 × 35 mm
• Weight with packaging: 34.5 g
• Outer carton size: 155 × 105 × 40 mm
• Weight with outer carton: 75 g
