SEQURE ANT ESC & 1520 Motor Combo for 1/24, 1/18, 1/16 RC Crawler Car

SEQURE ANT ESC and 1520 Motor Combo for 1/24, 1/18 and 1/16 RC Crawler Cars

Upgrade your mini crawler with the SEQURE ANT ESC + 1520 brushless motor combo — a compact external power system designed specifically for 1/24, 1/18 and 1/16 scale RC crawler models. Its ultra-small size makes it a great fit for smaller chassis without upsetting the vehicle’s original balance or center of gravity.

This hobby-grade combo is built for drivers who want smooth control, efficient power delivery and flexible tuning options in a compact package. The sealed design, quality internal components and smart parameter adjustment make it a solid choice for demanding trail and crawling setups.

Key features:

• Compact brushless ESC and motor combo designed for 1/24, 1/18 and 1/16 RC crawlers
• Mini size helps preserve chassis balance and low center of gravity
• Sealed construction with glued PCB protection and aluminum heat-sink housing for water-resistant and dust-resistant performance
• High-quality bearings, hardened motor shaft and reinforced outer rotor for durability
• High-temperature resistant magnets and enameled wire for efficient power conversion and lower energy loss
• Flexible silicone wires for easier installation in tight builds
• Upgraded electronic switch design for quick one-button power-on and longer service life than traditional mechanical switches
• Smart parameter tuning via mobile phone or computer
• Adjustable settings include motor timing, brake strength, throttle mode, low-voltage protection and overheat protection
• Built-in 6V / 3A BEC provides stable output for steering servo performance
• Plug-and-play setup with included battery adapter leads for better compatibility with different models

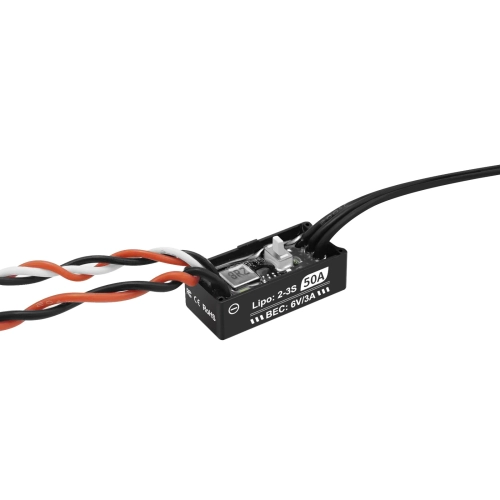

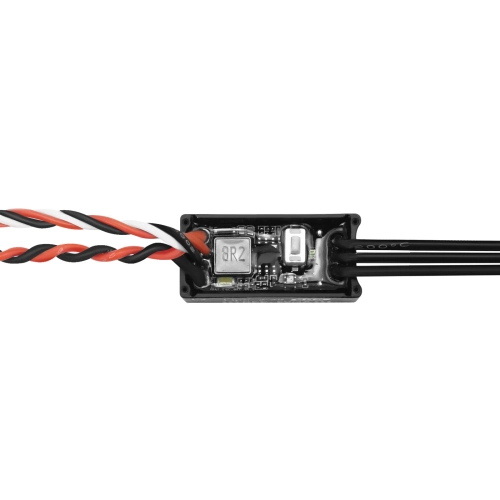

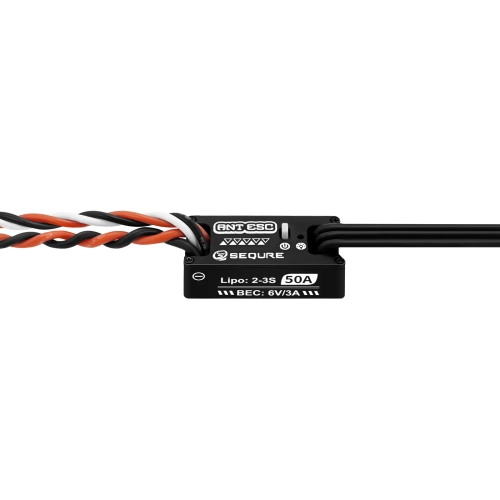

ESC Specifications – ANT ESC

• Input voltage: DC 7V–13V (2–3S LiPo)
• Continuous current: 50A (with good cooling)
• Peak current: 100A (with good cooling)
• Firmware: ESCape32
• Signal protocol: DShot (all versions), PWM, Oneshot, Multishot, etc.
• Parameter programming: Supported
• Current sensing: Supported
• RGB LED lighting: Supported
• BEC: 6V / 3A continuous
• Electronic switch: Short press to power on, long press to power off

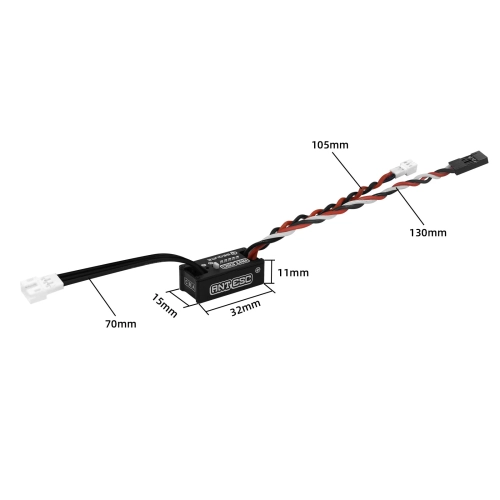

• Wire lengths: Power wire 105 mm, motor wire 70 mm, signal wire 130 mm
• Dimensions: 32 × 15 × 11 mm (without wires)

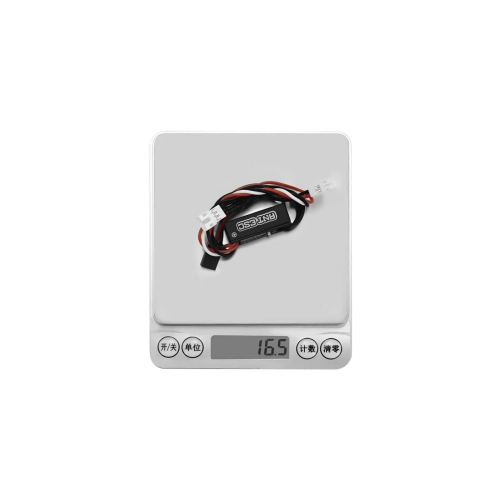

• Weight: 16.5 g (with wires)
• Application: 1/12, 1/16, 1/18, 1/24 models

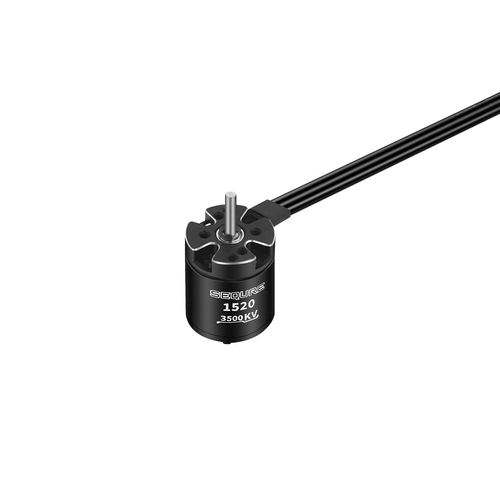

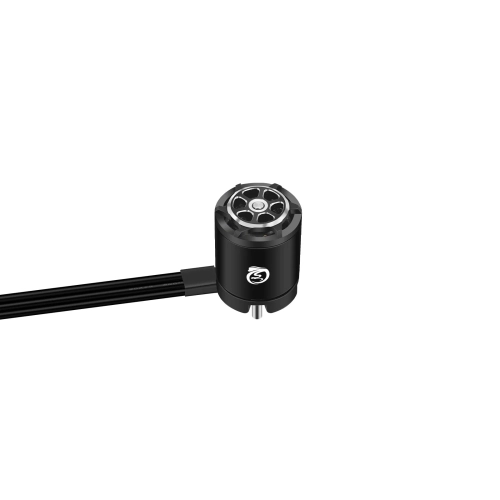

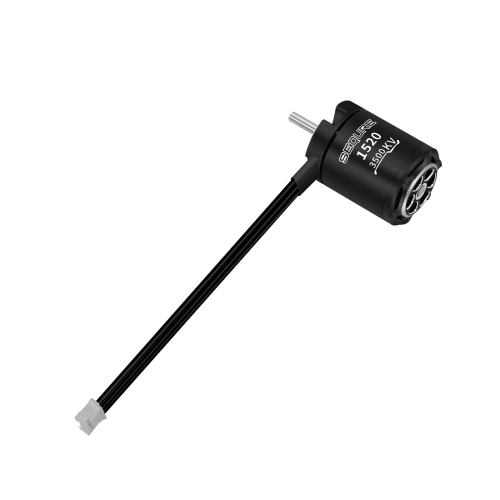

Motor Specifications – 1520

• Operating voltage: 2–3S LiPo
• Slots / poles: 9N12P
• Output shaft diameter: 2.0 mm
• Output shaft length: 9 mm
• KV rating: 3500KV
• Motor wire: 20AWG, 100 mm, PH2.0-3P male connector

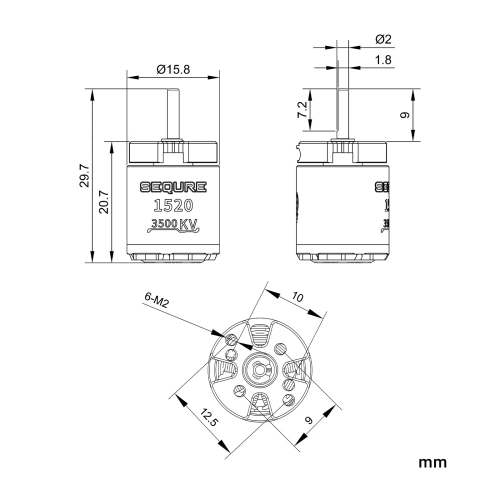

• Mounting hole spacing: M2 threads, 9 mm / 10 mm / 12.5 mm spacing
• Dimensions: 15.8 × 20.7 mm (without wires)

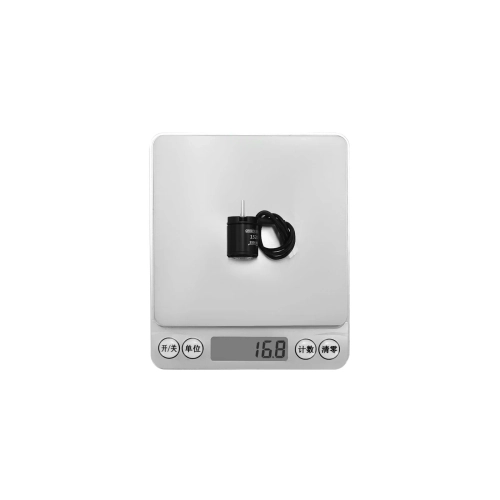

• Weight: 16.8 g (with wires)
• Application: 1/16, 1/18, 1/24 models

What’s Included

• ANT ESC ×1
• PH2.0 to JST cable ×1
• PH2.0 to MX2.0 cable ×1
• 3M tape ×1
• Cable ties ×2
• 1520 motor ×1
• 0.3M 24T pinion gear ×1
• 0.4M 16T pinion gear ×1
• 0.4M 11T pinion gear ×1
• WIFI-LINK ×1

Packaging Information

• Net product weight: 36.2 g
• Package size: 65 × 65 × 40 mm
• Weight with package: 64.5 g
• Outer carton size: 155 × 105 × 40 mm
• Weight with outer carton: 102 g
