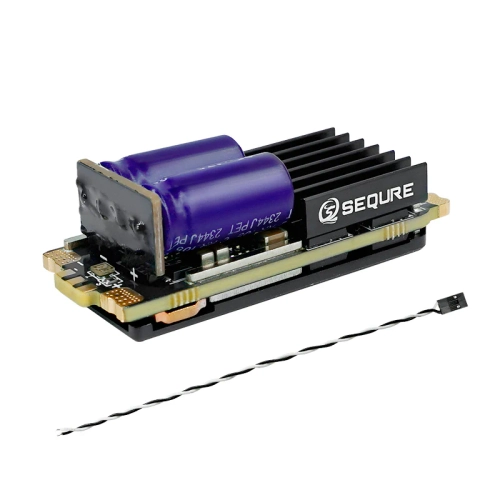

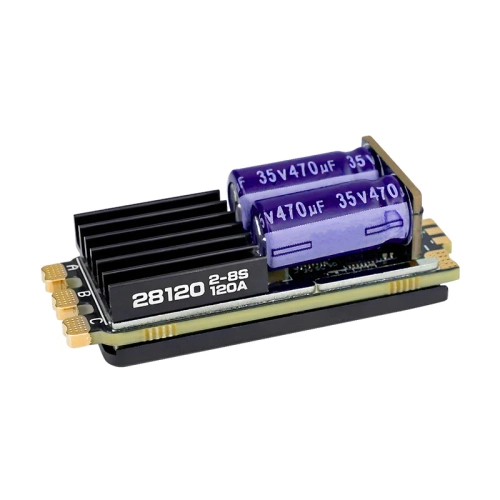

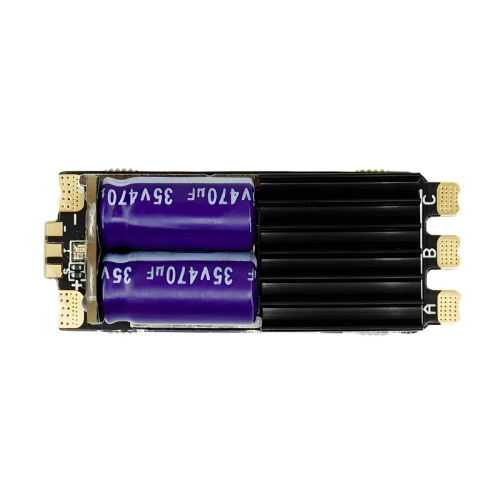

SEQURE SQESC 28120 Brushless ESC 2–8S Power Supply (AM32) + 10A BEC
The SEQURE SQESC 28120 is a powerful and versatile brushless electronic speed controller designed for demanding hobby applications. Built around a high-performance 32-bit STM32G071 processor running at up to 64 MHz, it delivers fast response, stable operation, and broad compatibility with popular control protocols and tuning options. Whether you're building a multirotor drone, RC plane, boat, car, crawler, or helicopter, this ESC is made to handle high current loads with confidence.
Thanks to efficient MOSFETs and a CNC-machined metal heatsink, the SQESC 28120 offers excellent heat dissipation under heavy load, helping maintain reliable continuous performance. The adjustable 10A BEC adds even more flexibility, allowing you to directly power receivers, servos, and other onboard electronics without needing an additional power solution.
Key Features
- High-performance STM32G071 32-bit processor with clock speed up to 64 MHz
- Supports motor PWM frequency up to 128 kHz
- Wide input voltage range: DC 7V–35V (2–8S LiPo)
- Continuous current: 120A with proper cooling
- Peak current: 150A with proper cooling
- Supports AM32, BLHeli_32, and ESCape32 firmware
- Compatible with all DShot protocols, plus PWM, Oneshot, and Multishot
- Supports forward, bidirectional, and brake motor modes
- Advanced protections: low-voltage, over-temperature, rotor lock, and over-current protection
- Automatic throttle signal detection at power-on
- Visual parameter tuning tool for easy setup and adjustment
- Adjustable motor timing, throttle calibration, current sensing, motor direction, and telemetry settings
- Built-in RGB LEDs with customizable color settings
- Integrated adjustable 10A BEC for powering external devices directly
Why Choose the SQESC 28120?
If you need a reliable high-current ESC for hobby-grade builds, the SQESC 28120 is a great all-around choice. It combines strong power handling, flexible firmware support, modern signal compatibility, and a built-in adjustable BEC in one compact package. This means fewer extra components, cleaner installation, and more setup options for advanced users who want to fine-tune performance.
Product Specifications
| Model | SQESC 28120 |
|---|---|
| Processor | STM32G071 |
| Input Voltage | DC 7V–35V (2–8S LiPo) |
| Continuous Current | 120A |
| Peak Current | 150A |
| Supported Firmware | BLHeli_32, AM32, ESCape32 |
| BEC | Adjustable 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A Adjustable 5V/10A, 6V/10A, 7.2V/10A, 8.2V/10A, 12V/10A |
| Signal Protocols | All DShot protocols, PWM, Oneshot, Multishot, etc. |
| Programming Parameter Adjustment | Supported |
| Throttle Calibration | Supported |
| Timing Adjustment | Supported |
| Current Sensing | Supported |
| Telemetry Output | Supported |
| Motor Rotation Direction Setting | Supported |
| RGB LED Lighting | Supported |
| Power Cable | 14AWG |
| Recommended Applications | Suitable for multirotor drones, RC airplanes, agricultural spraying aircraft, RC boats, RC cars, crawlers, and 500-size helicopters |

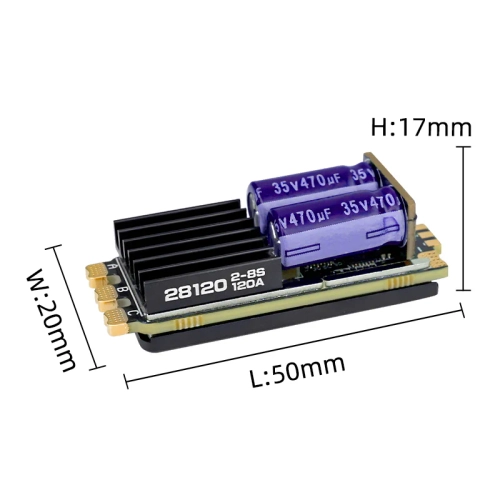

Overall Dimensions
| Versions | 28120 (BLHeli_32) + BEC, 28120 (AM32) + BEC, 28120 (ESCape32) + BEC |
|---|---|
| Net Weight | 52 g |
| Package Dimensions | 150 x 100 x 30 mm |
| Package Weight | 59 g |
| Outer Carton Dimensions | 200 x 110 x 40 mm |
| Outer Carton Weight | 104 g |
Package Includes
- SEQURE SQESC 28120 set ×1
Specification SEQURE 28120 ESC 2-8S 120A ( AM32 ) + BEC 10A
