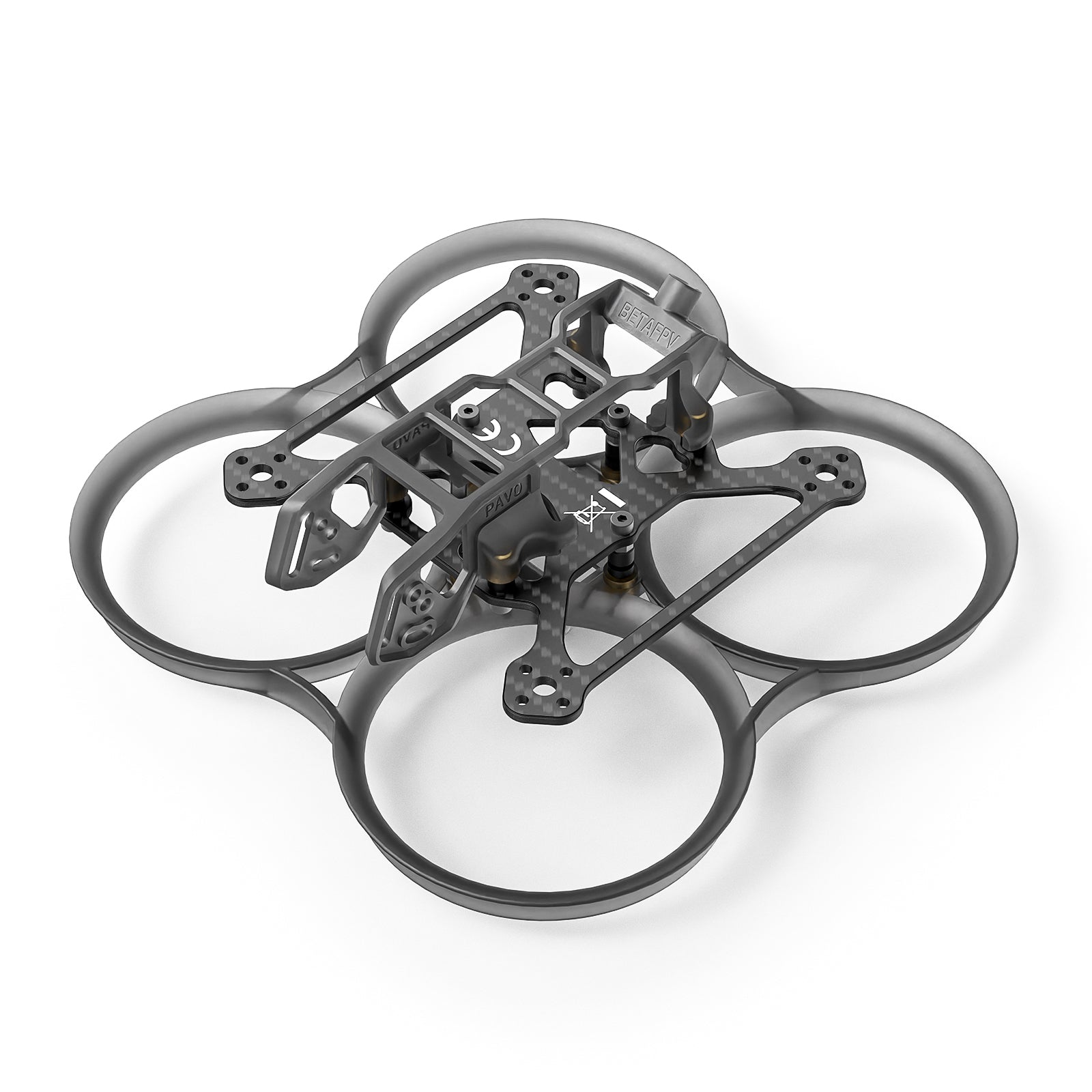

BETAFPV Pavo20 Pro Whoop frame with HD VTX bracket – transparent gray
A 2.2-inch Cinewhoop frame

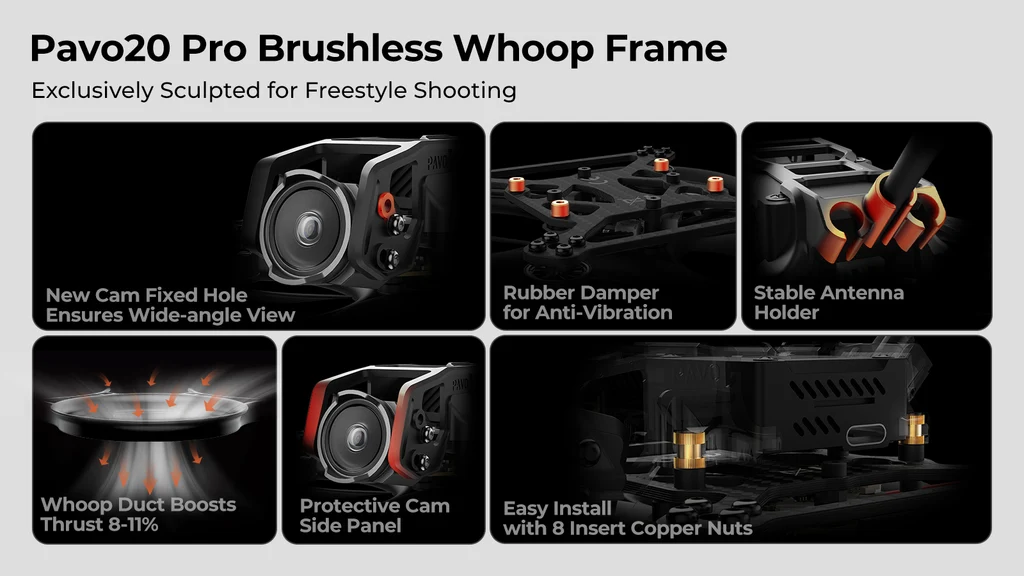

BETAFPV Pavo20 Pro Brushless Whoop Frame is designed for compact 2.2-inch FPV builds with a 93.7 mm wheelbase. PA12/PP construction and a reinforced propeller duct support demanding freestyle flying and video recording. The source states a thrust increase of 8–11% relative to ductless configurations.
DJI O3 video mount and vibration damping
An integrated HD VTX bracket supports DJI O3 Air Unit and compatible Caddx Vista / RunCam Link systems. The camera mount supports 19/20 mm spacing and compatible ND filters. Rubber dampers help reduce vibration and the jello effect; battery straps and non-slip pads improve battery retention.
Frame kit, not a complete drone
The kit includes the frame, HD VTX bracket and mounting accessories listed below. Motors, propellers, flight controller, camera, battery and digital video transmitter must be purchased separately.

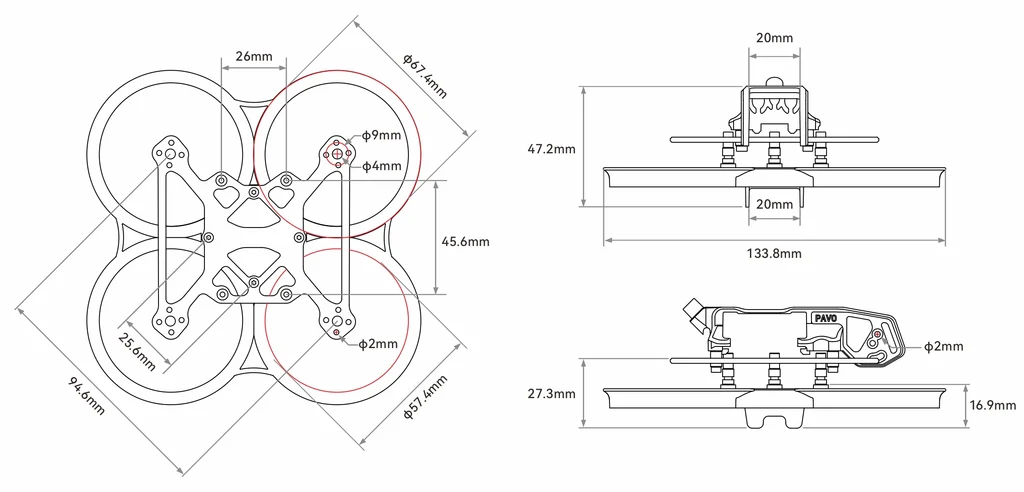

Technical specifications
| Manufacturer | BETAFPV |
| Model | Pavo20 Pro Brushless Whoop Frame |
| Variant | With HD VTX / DJI O3 Air Unit bracket |
| Color | Transparent gray |
| Intended use | 2.2-inch Cinewhoop FPV drones |
| Wheelbase | 93,7 mm |
| Construction material | PA12 / PP |
| Top plate thickness | 2 mm |
| Frame weight with O3 bracket | 33,3 g |
| Whoop duct weight | 17,8 g |
| O3 HD VTX bracket weight | 4,6 g |
| Camera mounting spacing | 19 / 20 mm |
| FC mounting hole spacing | 26 × 26 mm |
| Motor mounting pattern | 4 × M2, Ø9 mm mounting pattern |
| Battery slot width | 20 mm |
| Compatible HD VTX systems | DJI O3 Air Unit, Caddx Vista, RunCam Link |
| Camera filter support | Yes, compatible ND filters |
Package contents
- Pavo20 Pro frame top plate – 1 pc.
- VTX mounting plate 20 × 20 mm – 1 pc.
- Pavo20 propeller duct – 1 pc.
- DJI O3 / HD VTX bracket – 1 pc.
- 130 mm battery strap – 1 pc.
- Non-slip battery pads – 2 pcs.
- 5.8 GHz antenna components – 2 pcs.
- M2 nuts – 8 pcs.
- Rubber dampers – 10 pcs.
- M2 × 10 mm screws – 6 pcs.
- M2 × 4 mm screws – 6 pcs.
- M2 × 14 mm screws – 4 pcs.
- M2 × 15 mm screws – 4 pcs.
