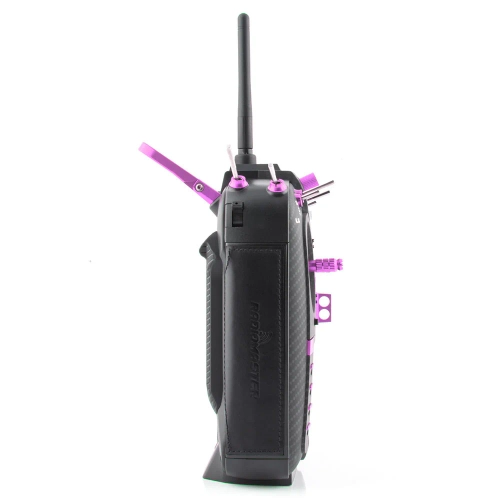

RadioMaster TX16S MKII MAX Joshua Bardwell Edition
Characteristics
- Improved internal circuitry and optimized power supply.
- New charging circuit with integrated reverse polarity protection.
- The optimized charging IC now allows for an internal USB-C charging current of up to 2.2A.
- A rear-mounted audio jack provides a headphone output.
- Gimbal V4.0 improved centering and temperature stability (same circuit as AG01).
- Optional high/low rear handles included for better ergonomics.
- Improved S1/S2 knobs with distinct center detents.
- Improved LS/RS sliders with a smoother feel and better center hooks.
- Redesigned battery cover for better access to the battery.
- Upgraded body shell with improved fit and finish.
- Trainer jack changed to a standard 3.5mm TRS jack.
- Added rear DIY slot for personalized mods.
- Improved internal plastics for better durability.
Specification
- Item: TX16S Mark II Max (Joshua Bardwell Edition)
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400 GHz-2.480 GHz
- Transmitter Module: Internal ELRS (SX1280)
- SD card: default 256MB, maximum 8GB
- Antenna gain: 2db (adjustable transmit power)
- Working current: 400mA
- Operating voltage: 6.6-8.4V DC
- Radio software: EdgeTX
- Module software: ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on receiver)
- Display: 4.3 inch TFT color touch display with 480*272 resolution
- Gimbal: V4.0 Hall sensor with aluminum cover
- Modular bay: JR compatible modular bay
- Update method: Supports USB-C online/offline SD card update
EdgeTX and OpenTX support
EdgeTX is installed by default (touchscreen enabled).
*Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.
Indoor gimbals V4.0
Standard version with V4.0 indoor gimbals, same chipset as AG01, optimized Hall sensor circuit, improves center point positioning and temperature stability. Stick travel, self-centering and stick tension can now be adjusted externally.
The set includes flat and raised handles
Both raised and flat versions of the rear grips are included, allowing you to customize the style of your TX16s MKII right out of the box.
External module bay
TX16s natively supports Team Black Sheep MicroTX modules in CRSF mode with LUA scripts. Best of all, the internal 4-in-1 TX16 multi-protocol module allows you to leave MicroTX installed and switch between internal RF and Crossfire via software, without having to replace modules.
Improved design
- Reworked faceplate with improved fit and finish
- Improved S1/S2 knobs with center detents
4.3-inch IPS Color Display - The TX16s is equipped with a bright and clear 4.3-inch IPS color display, allowing for easy and convenient model setup and operation with adjustable brightness to adapt to any conditions.
- Improved LS/RS sliders with a smoother feel and better center hooks.
- New 3.5mm audio jack - Rear-mounted audio jack minimizes RF interference from external modules and adds headphone audio functionality.
- Redesigned battery cover, easier to remove.
- Added rear DIY slot for personalized mods.
Radio review
Parcel includes
- 1 * TX16S Mark II Max Radio Controller
- 1*18650 tray
- 1 * USB-C cable
- 1 * Screen Protector
- 1 * LED Gimbal Light Mod Kit (White)
- 1 * Pair of Flat Handles
- 1 * pair of raised handles ( installed on the radio by default)
- 1 * TX16S key ring
