RadioMaster TX16S MKII MAX AG01 Gimbal 4-in-1 RED Radio Controller

RadioMaster TX16S MKII MAX AG01 Gimbal 4-in-1 RED equipment

Characteristics

• Improved internal circuitry and optimized power supply.
• New charging circuit with integrated reverse polarity protection.
• The optimized charging IC now allows for an internal USB-C charging current of up to 2.2A.
• A rear-mounted audio jack provides a headphone output.
• Gimbal V4.0 improved centering and temperature stability (same circuit as AG01).
• Optional high/low rear handles are available to improve ergonomics.
• Improved S1/S2 knobs with distinct center detents.
• Improved LS/RS sliders with a smoother feel and better center hooks.
• Redesigned battery cover for better access to the battery.
• Upgraded body shell with improved fit and finish.
• Trainer jack changed to a standard 3.5mm TRS jack.
• Added rear DIY slot for personalized mods.
• Improved internal plastics for better durability.

Specification

• Items: TX16S Mark II Max
• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400 GHz-2.480 GHz
• Transmitter Module: Option 1: Internal 4 in 1 Multi-Protocol Module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS Module (SX1280)
• SD card: default 256MB, maximum 8GB
• Antenna gain: 2db (adjustable transmit power)
• Working current: 400mA
• Operating voltage: 6.6-8.4V DC
• Radio software: EdgeTX
• Module Firmware: Multi-Protocol Module (4IN1) -OR- ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on receiver)
• Display: 4.3 inch TFT color touch display with 480*272 resolution
• Gimbal: Option 1: V4.0 Hall sensor with aluminum cover; Option 2: AG01 CNC Hall Sensor
• Modular bay: JR compatible modular bay
• Update method: Supports USB-C online/offline SD card update

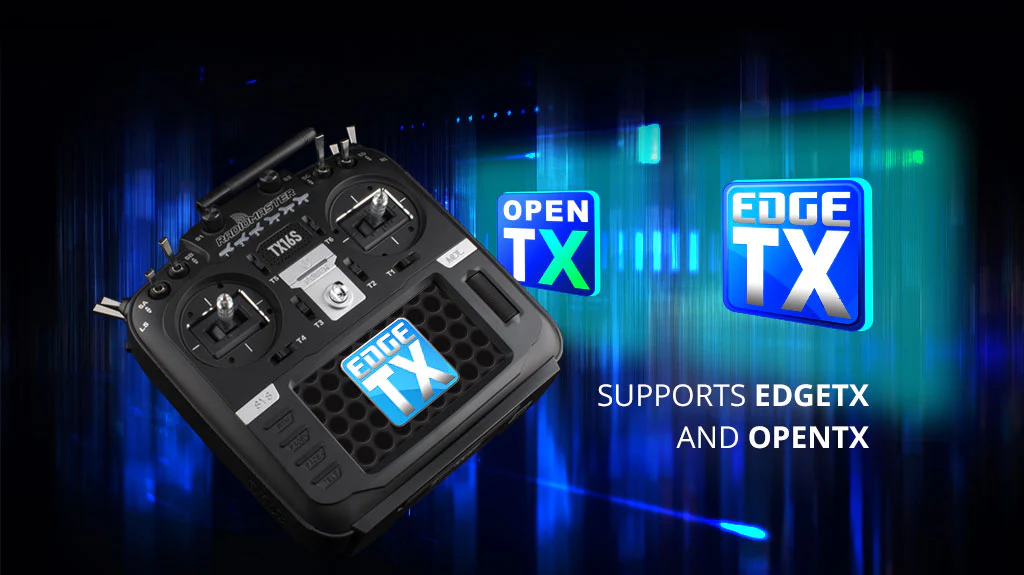

EdgeTX and OpenTX support

EdgeTX is installed by default (touchscreen enabled).

*Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.

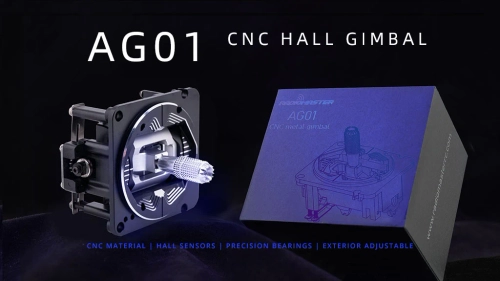

GIMBALE AG01

AG01 Gimbal is fully CNC milled for the highest precision, with four ball bearings for a smooth and precise feel. Equipped with front-accessible tension and stroke adjustments for easy fine-tuning.

The set includes flat and raised handles

Both raised and flat versions of the rear grips are included, allowing you to customize the style of your TX16s MKII right out of the box.

External module bay

TX16s natively supports Team Black Sheep MicroTX modules in CRSF mode with LUA scripts. Best of all, the internal 4-in-1 TX16 multi-protocol module allows you to leave MicroTX installed and switch between internal RF and Crossfire via software, without having to replace modules.

Improved design

• Reworked faceplate with improved fit and finish
• Improved S1/S2 knobs with center detents

• 4.3-inch IPS Color Display - The TX16s is equipped with a bright and clear 4.3-inch IPS color display, allowing for easy and convenient model setup and operation with adjustable brightness to adapt to any conditions.

• Improved LS/RS sliders with a smoother feel and better center hooks.

• New 3.5mm audio jack - Rear-mounted audio jack minimizes RF interference from external modules and adds headphone audio functionality.
• Redesigned battery cover, easier to remove.
• Added rear DIY slot for personalized mods.
