RadioMaster Ranger Nano 2.4GHZ ExpressLRS RF module

Producer:RadioMaster
EAN:5280146191403
SKU:29456

Gross price:53,00 €

Cena netto:
43,10 €
Size
universal
Express checkout 1-Click(without registration)
Available
Available
Free and fast delivery
30 days for free returns
Available stationary (Gdynia, PL)
RadioMaster Ranger Nano 2.4GHZ ExpressLRS RF module
RadioMaster Ranger Nano 2.4GHZ ExpressLRS RF module
Set:Basic
Version:Ranger Nano
universal
Sprawdź ofertę wynajmu
Wynajmij od 353 zł netto / mc

• Oferta dla klienta biznesowego

• Płacisz tylko za korzystanie

• Umowa na 12 miesięcy

• Faktura VAT

wynajmij
Set
Version
RadioMaster Ranger Nano 2.4GHZ ExpressLRS RF module
53,00 €

RadioMaster Ranger Nano 2.4GHZ ExpressLRS RF module

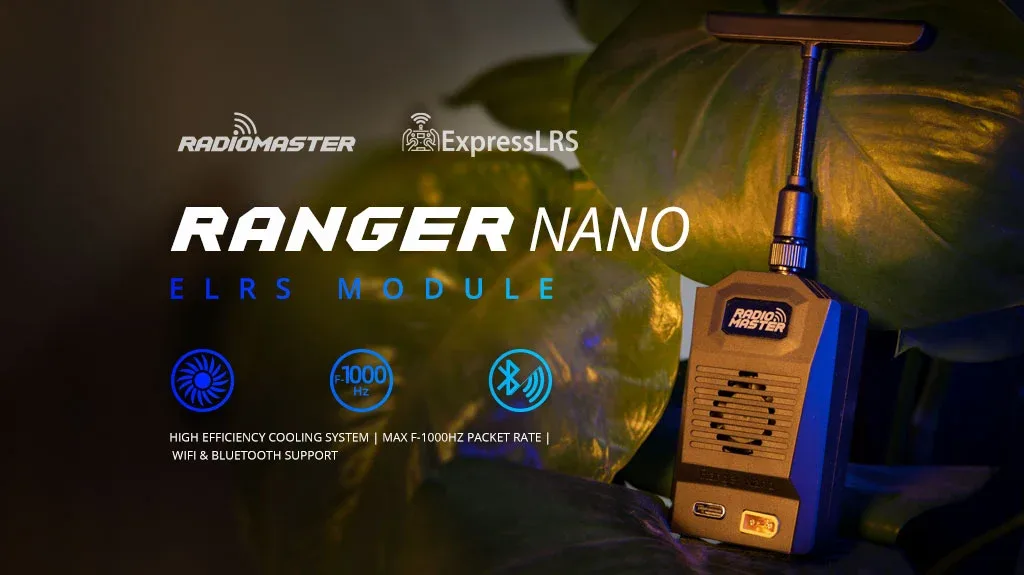

Equipped with an F-1000 Hz refresh rate and a high-efficiency cooling system, the Ranger Nano ELRS 2.4 GHz module represents state-of-the-art ELRS technology. Connect the module to a compatible radio (RadioMaster Zorro and more) to enjoy everything ELRS has to offer.

The included T-shaped antenna is designed for maximum signal coverage.

Ranger Nano 2.4 GHz ELRS module

Characteristics

  • Highly efficient cooling system
  • Wi-Fi and Bluetooth support
  • Packet rate up to F-1000 Hz
  • T-type antenna included
  • Thanks to the Nano connector, it supports Zorro radio

Specification

  • Item: Ranger Nano
  • Regulatory domain: ISM2400
  • MCU: ESP32 (main), ESP8285 (aux, as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency range: 2400MHz - 2480MHz
  • Maximum packet rate: 500 Hz/F-1000 Hz (F-1000 Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25 Hz
  • RF output power: default 100mW
  • Wi-Fi Support: Yes
  • Bluetooth support: Yes
  • XT30 Supply voltage: DC 6V - 16.8V
  • Weight: 48g (with antenna) / 39g (without antenna)

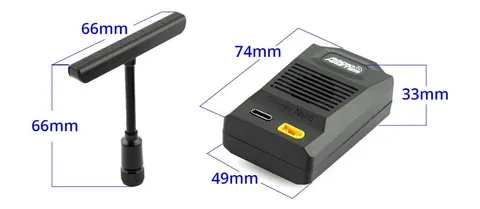

  • Dimensions: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Size

Ranger Nano 2.4 GHz ELRS module

Parcel includes

  • 1 * Ranger Nano Module
  • 1 * T antenna

Specification RadioMaster Ranger Nano 2.4GHZ ExpressLRS RF module

Brand
RadioMaster
Symbol
HP0157.0035-LBT
Producer code
5280146191403
Warranty
12 months
