RadioMaster Nomad Dual 1W Gemini Xrossband ELRS Module

RadioMaster Nomad Dual 1-Watt Gemini Xrossband ELRS Module

Introducing the RadioMaster Nomad: the next evolution in RF ExpressLRS design! The Nomad is equipped with two third-generation Semtech LR1121 transceivers, enabling operation in both 2.4 GHz and 868/900 MHz bands using the advanced Gemini Xrossband protocol. This technology allows the transmitter to simultaneously send packets on both bands, reducing the risk of packet loss due to interference.

With dual 1-watt dual-band transceivers, the Nomad offers exceptional range and revolutionary interference rejection in demanding environments, ensuring improved performance and reliability. The Nomad comes with a micro module and nano adapter, ensuring compatibility with most of today's radio stations.

Whether you're pushing the boundaries of range or flying in crowded environments, the Nomad provides you with reliability and the ability to explore new horizons.

The DBR4 ExpressLRS receiver works perfectly with the Nomad, offering seamless compatibility. Together, they push the boundaries of traditional performance, delivering unmatched reliability and Gemini-X efficiency.

Presentation Video

Features

• Compatible with all existing ExpressLRS 2.4 GHz and 900 MHz receivers (see compatibility table below)
• Compatible with ExpressLRS 2.4 GHz + 900 MHz Dual Band (Gem-X) receivers
• Dual 1W transceivers for both bands
• Unmatched reliability with dual-band ELRS Gemini Xrossband
• ExpressLRS Gemini 2.4 GHz
• ExpressLRS Gemini 900 MHz
• Advanced cooling system ensuring optimal operating temperature

Specifications

• Product: Nomad Dual Band Module with Micro Adapter
• Frequency Range: 2400 MHz - 2479 MHz / 903 MHz - 927 MHz
• MCU: ESP32 (main), ESP32c3 (auxiliary, as ESP backpack)
• RF Chip: Semtech LR1121 x 2
• Maximum Packet Rate: 500Hz (1000Hz in the upcoming ExpressLRS V3.5 version)
• Minimum Receiver Refresh Rate: 50Hz
• Modular Adapters: Micro standard 5-pin & Nano standard 8-pin
• WiFi and Bluetooth Support
• Built-in RGB strip
• XT30 Power Supply: DC 6V - 16.8V
• Weight: 87.20g (with antenna) / 71.10g (without antenna)
• Dimensions: 80x45x40mm (without antenna)

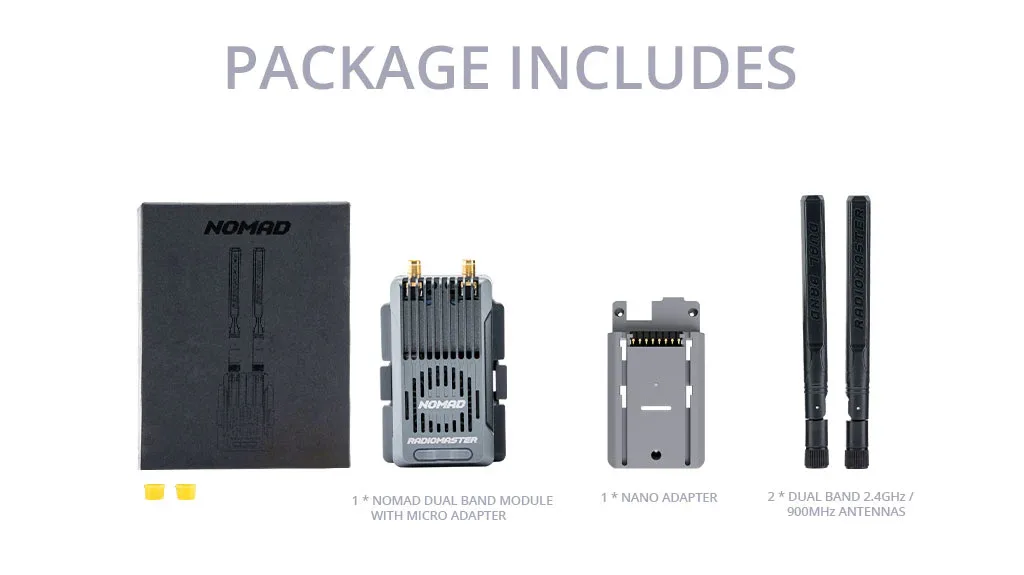

Package Contents

• 1 * Nomad Dual Band Module with Micro Adapter
• 2 * Dual Band 2.4GHz / 900MHz Antennas
• 1 * Nano Adapter
• 1 * Instruction Card
