RadioMaster Bandit 915mHZ ExpressLRS RF module

RadioMaster Bandit 915mHZ ExpressLRS RF module

After extensive research and collaboration with the ExpressLRS team, we are excited to introduce the all-new Bandit ExpressLRS RF module. This state-of-the-art module is the culmination of our efforts to provide unmatched performance and reliability for long-range drone and UAV applications.

Characteristics

• Output power up to 1 W
• Packet rate up to 200 Hz
• Optimized circuit for very low power consumption
• Built-in TCXO oscillator
• Low noise, high comfort
• High contrast OLED display
• Durable, brown CNC housing
• Amazing RGB lighting effects
• Highly efficient cooling system
• Wi-Fi and Bluetooth support
• Built-in ExpressLRS backpack
• Built-in accelerometer
• Directional navigation key and customizable shortcut buttons
• Micro and Nano adapters included
• The set includes a Moxon antenna and a T 915/868 MHz antenna
• Futaba CRSF cable included
• UART cable included

Technical data

• Article: Bandit ExpressLRS radio module
• Regulatory domain: FCC915
• MCU: ESP32 (main), ESP8285 (aux, as ESP backpack)
• RF chip: SEMTECH SX1276
• Refresh rate Min/Max: 25Hz/200Hz
• RF output power: 1000 mW/30 dBm
• Module bay adapters: standard Micro 5pin socket and standard Nano 8pin socket
• Built-in RGB lights
• Built-in OLED screen
• GRAM sensor support: Yes
• XT30 supply voltage: DC 6V ~ 16.8V
• Weight: 155 grams (with antenna)
• Dimension: 90*51*24mm

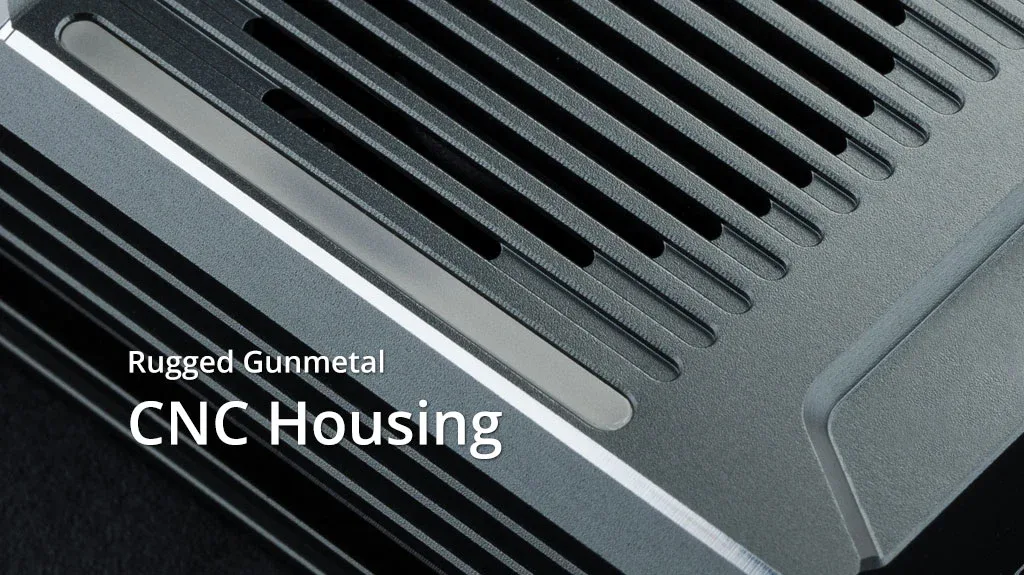

Rugged construction for lasting excellence

Bandit ExpressLRS isn't just about performance; it's also built to last. The durable CNC aluminum casing not only exudes a sleek and modern aesthetic, but also serves as a heat sink, effectively dissipating heat and maintaining optimal operating temperature even in the most demanding conditions.

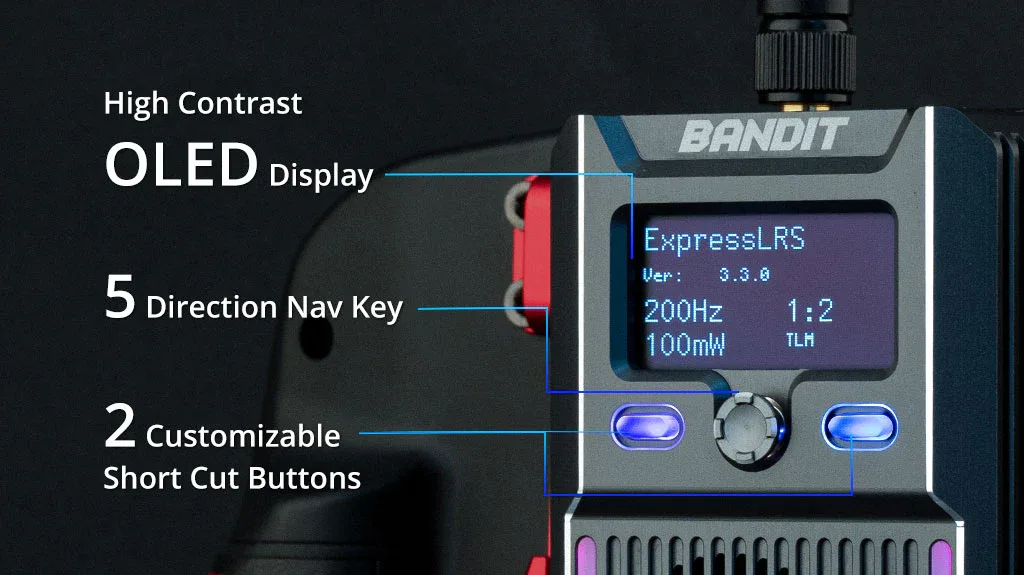

Intuitive controls at your fingertips

The Bandit ExpressLRS features an OLED display, five-way navigation key, and customizable shortcut buttons for instant access to all the necessary controls. Easily adjust the settings and tailor the module's behavior to your specific needs, ensuring an unparalleled flight experience.

Versatile antenna options for a variety of applications

The Bandit ExpressLRS is equipped with a RadioMaster T antenna for general-purpose flights and a RadioMaster Moxon antenna for long-range directional applications. This versatility allows the configuration to be tailored to any flight scenario, from everyday recreational flights to professional drone and UAV operations.

The perfect solution for demanding applications

Whether you are an experienced drone enthusiast or a professional UAV operator, the Bandit ExpressLRS radio module is the perfect choice for demanding applications. Its unrivaled performance, rugged design, intuitive controls and versatile antenna options make it an indispensable tool for those seeking the best in long-range drone and UAV technology.

How and when to use a Moxon antenna or T antenna

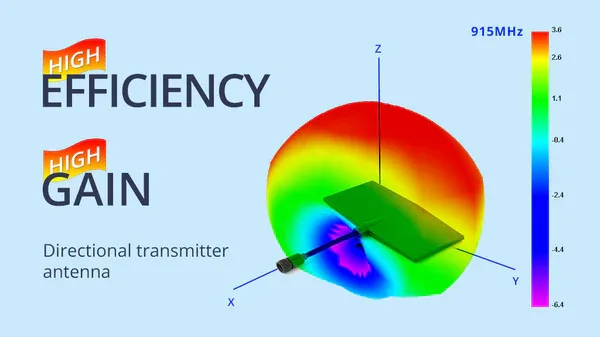

MOXON antenna

The Moxon directional antenna is designed for long range and has a narrower field of operation. It is important that the Moxon antenna points in the general direction of the drone.

Antenna polarization: vertical/horizontal polarization.

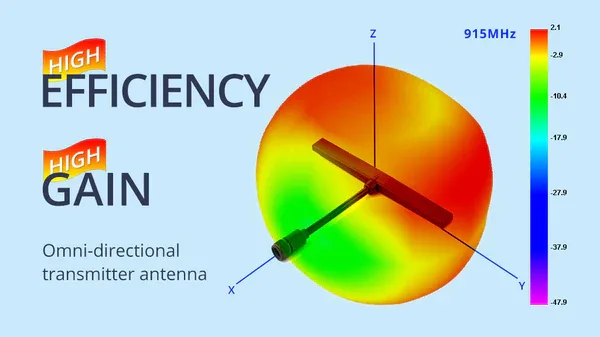

T antenna

The T antenna is an omnidirectional antenna. It is intended for short and medium distances. Suitable for most conditions.

Antenna polarization: vertical/horizontal polarization

How to use Futaba CRSF cable

1. Make sure Futaba radio software supports CRSF function.
2. Follow Futaba's instructions to select the servo test port on CRSF.
3. Connect the Bandit using a CRSF cable.
4. Connect the XT30 2s-4s lipo battery to the Bandit.

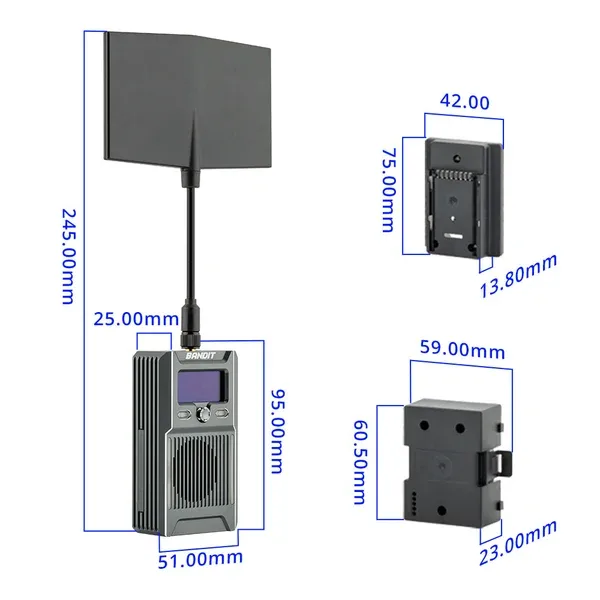

Dimensions

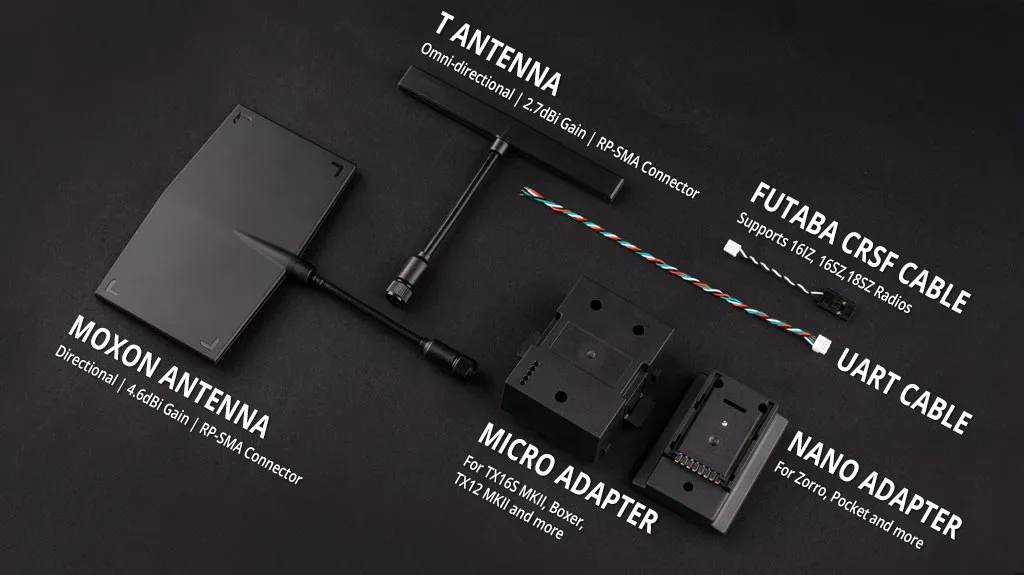

Parcel includes

• 1 * Bandit ExpressLRS RF Module
• 1 * T antenna
• 1 * Moxon Antenna
• 1 * Micro Adapter
• 1 * Nano adapter
• 1 * Transparent Protective Cover
• 1 * UART Cable
• 1 * Futaba CRSF Cable
• 1 * 1.55mm Allen key
• 6*M2*6 screws
• 1*Manual
