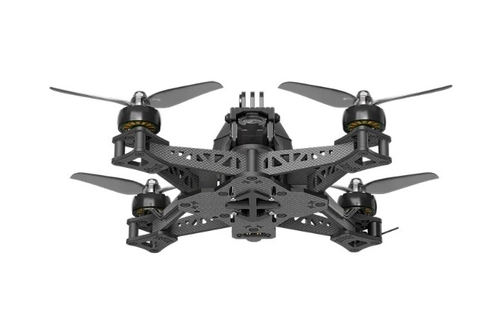

Racing drone iFlight Afterburner 5 HD O3 Air Unit 6S BNF 6S (DJI) - DJI O3 Air Unit

IFlight racing drone Afterburner 5 HD O3 Air Unit 6S BNF 6S (DJI) - DJI O3 Air Unit

Afterburner - 5 inch performance from 2RAW and iFlight. Afterburner is designed for professional pilots who use FPV drones for film work. Drone is designed with aerodynamics and balance in mind when flying.

Features:

Smallest footprint

The Afterburner has a 20% smaller footprint than traditional 5-inch freestyle frames, allowing for easier transport, as well as greater agility and less drag, which means better all-around performance.

Aero coating

Aeroshell controls airflow around and inside the drone. As the drone's speed increases, the aerodynamic coating acts as an air splitter, preventing air from hitting the flat top plate. The case also helps protect electronics from dirt and moisture, so you can be more confident in critical situations.

Advanced truss arms

The star design combined with trusses provides high rigidity while keeping weight low and excellent balance, providing exceptional results when it comes to filming.

Bottom-mounted faucet

Inspired by FPV racing, we took the approach of mounting the battery from the bottom, which allows the battery to put up the minimum possible resistance and completely clear the top of the drone, allowing the GoPro to be mounted. Afterburner was built for the professional pilot. The central battery also allows the CG to stay close to the center of the body for better agility in the air.

No props in sight thanks to GoPro

GoPro's 16:9 has no probs in view from 5 degrees all the way up to 60 degrees.

Air unit DJI O3 HD Low-latency digital transmission

Video transmission range of up to 10 km - enjoy clear and smooth real-time video on your goggles, even in environments with interference.

Stabilized 4K video with an ultra-wide angle of 155°

Combined with high image quality, it provides exceptional visual effects that keep viewers in suspense.

Technical data:

• Product name: Afterburner 5 O3 6S HD
• Geometry: True-X
• FC: BLITZ F7 flight controller
• Controller: BLITZ E55 4-W-1 2-6S 55A ESC
• Video transmission: Air unit DJI O3
• Frame: 210 mm wheelbase
• Motor: XING2 2207 1750KV motors
• Support: GEMFAN propellers 5.1X3.6X3
• Weight: 472±7g (without battery)
• Dimensions (L. × width. × height.): 148x148x64mm
• Maximum speed: 160 km/h
• Maximum takeoff altitude: 7000 m
• Maximum hover time: approx. 11 minutes with 6S Lipo 1400 mAh battery with no load
• Operating temperature range: -10° to 40° C
• Antennas: Single antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video transmission:

• Product name: air unit DJI O3
• Weight: approx. 36.4 grams (with headband)
• Communication bandwidth: max. 40 MHz
• Field of view (single screen): 155°
• Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
• End-to-end delay

With goggles DJI FPV V2:

• Video transmission quality 810p/120fps: Latency is less than 28ms.
• Video transmission quality 810p/60fps: Latency is less than 40 ms.

With Goggles DJI Goggles 2:

• 1080p/100fps video transmission quality: latency is only 30 ms.
• 1080p/60fps video transmission quality: latency is only 40 ms.
• Maximum video transmission rate: 50 Mbps
• Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
• Operating temperature range: -10° to 40° C (14° to 104° F)
• Input power supply: 7,4-26,4 V
• Audio transmission: not applicable
