Pilotix T384 6.8 mm FPV Thermal Imaging Camera
588,50 €

PILOTIX / 384 / THERMAL CAMERA

Pilotix Thermal T384 FPV 6,8 mm Thermal Camera

The Pilotix Thermal T384 FPV thermal camera is designed for drone applications. The lens 6,8 mm and the wavelength range 8–14 μm are used to detect thermal signatures.

The image resolution is 384×288 pixels. The structure weighs 23 g.

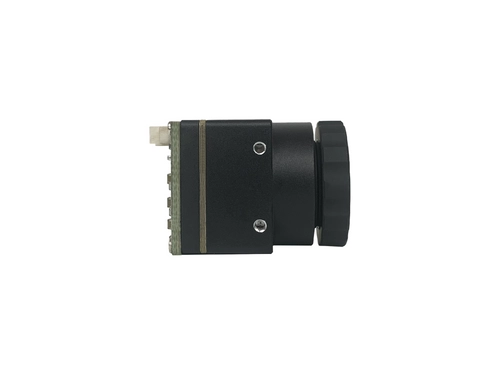

Product photo: Pilotix Thermal T384 FPV 6,8 mm Thermal Camera

Key information

Sensor type
Vanadium oxide (VOx) microbolometer
Maximum image size
384x288 pixels
Pixel size
12 μm
Wavelength range
8~14 μm
NETD
≤40 mK (@25°C, F#1.0)
Field of view
H≈37,42° × V≈28,58° × D≈46,02°
Lens
6,8 mm
Operating temperature
-40°C to +60°C

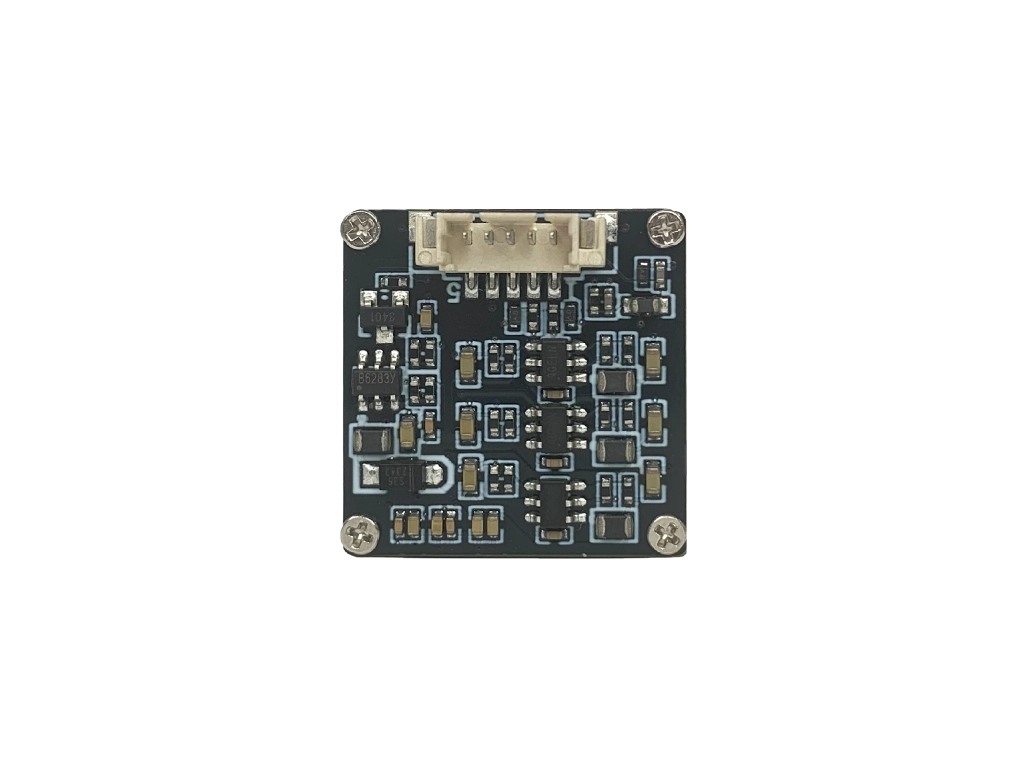

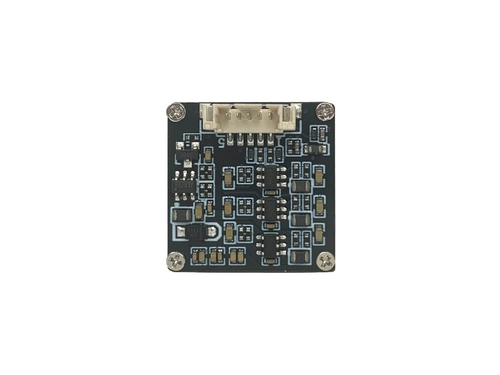

Product photo: Pilotix Thermal T384 FPV 6,8 mm Thermal Camera

IMAGING

Sensor and field of view

The camera uses a vanadium oxide (VOx) microbolometer, and the pixel size is 12 μm. NETD is ≤40 mK (@25°C, F#1.0), and the field of view is H≈37,42° × V≈28,58° × D≈46,02°.

OPERATING CONDITIONS

Power supply and environmental resistance

The camera operates at temperatures of -40°C to +60°C and humidity levels of <90% RH. It requires a DC voltage of 5~12 V and has a power consumption of ≤0,8 W. The storage temperature is specified as -45°C to +75°C, and storage humidity as <90% RH.

Product photo: Pilotix Thermal T384 FPV 6,8 mm Thermal Camera

TECHNICAL SPECIFICATIONS

Technical specifications

Sensor typeVanadium oxide (VOx) microbolometer
Maximum image size384x288 pixels
Pixel size12 μm
Wavelength range8~14 μm
NETD≤40 mK (@25°C, F#1.0)
Field of viewH≈37,42° × V≈28,58° × D≈46,02°
Lens6,8 mm
Operating temperature-40°C to +60°C
Operating humidity<90% RH
Storage temperature-45°C to +75°C
Storage humidity<90% RH
Weight23 g
Dimensions21 mm x 21 mm x 38 mm
Power consumption≤0,8 W
DC power supply5~12 V
Manufacturer's code6624
EAN5061099735834

KIT CONTENTS

What's included

  • 1x Pilotix Thermal T384 FPV camera (6.8mm)

Specification Pilotix T384 6.8 mm FPV Thermal Imaging Camera

Brand
Pilotix
Symbol
6624
Producer code
5061099735834
Warranty
24 months
