PILOTIX / 384 / FPV THERMAL CAMERA

Pilotix T384 4 mm v1.1 FPV Thermal Camera

The Pilotix T384 4 mm v1.1 FPV thermal camera detects infrared heat signatures 8–14 μm. The VOx sensor provides a thermal resolution of 384×288 pixels, and its NETD sensitivity is ≤40 mK (@25°C, F#1.0).

The compact board, measuring 20×20 mm and weighing 23 g , makes integration with lightweight drones easier. The redesigned connectors are located on the back of the camera.

Product photo: Pilotix T384 4 mm v1.1 FPV thermal camera

Key information

Sensor type
VOx microbolometer
Thermal resolution
384×288 pixels
Pixel size
12 μm
Spectral range
8–14 μm
NETD sensitivity
≤40 mK (@25°C, F#1.0)
Lens
4 mm
Field of view
H≈59,98° × V≈46,88°
Operating temperature
-40℃ to +60℃
Product photo: Pilotix T384 4 mm v1.1 FPV thermal camera

DESIGN

4 mm lens and modified connectors

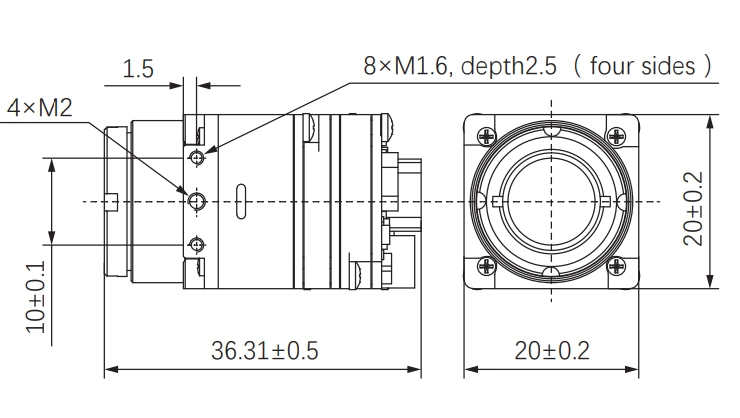

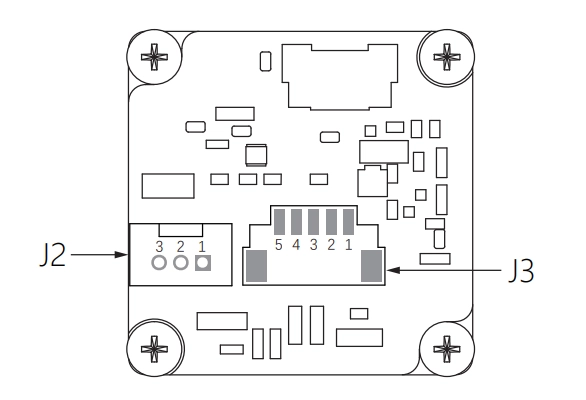

The camera has a lens with a focal length of 4 mm. The J2 connector has 3 pins, and the J3 connector has 5 pins; the modified connector layout makes wiring easier. The device measures 20 × 20 × 38 mm.

POWER SUPPLY AND OPERATING CONDITIONS

DC 5–12 V power supply and automatic refresh

The camera requires a DC 5–12 Vpower supply, and its power consumption is ≤0,8 W. The image is automatically refreshed by a freeze frame every 90 s. The operating temperature ranges from -40℃ to +60℃, and the storage temperature ranges from -45℃ to +75℃; humidity during operation and storage should be below 90% RH.

Product photo: Pilotix T384 4 mm v1.1 FPV thermal camera

TECHNICAL SPECIFICATIONS

Technical specifications

Sensor typeVOx microbolometer
Thermal resolution384×288 pixels
Pixel size12 μm
Spectral range8–14 μm
NETD sensitivity≤40 mK (@25°C, F#1.0)
Lens4 mm
Field of viewH≈59,98° × V≈46,88° × D≈71,20°
Operating temperature-40℃ to +60℃
Storage temperature-45℃ to +75℃
Operating and storage humidity<90% RH
Power supplyDC 5–12 V
Power consumption≤0,8 W
Dimensions20 × 20 × 38 mm
Weight23 g
Freeze-frame refreshevery 90 s
J2 connector3-pin
J3 connector5-pin
Versionv1.1
EAN5061099735865
Manufacturer's symbol8182

KIT CONTENTS

What's included

  • 1× Pilotix T384 v1.1 FPV thermal camera

Specification Pilotix T384 4 mm v1.1 FPV Thermal Camera

Brand
Pilotix
Symbol
8182
Producer code
5061099735865
Warranty
24 months
