Pilotix Edition PT15 Drone Frame
187,70 €

PILOTIX / PT15 / DRONE FRAME

Pilotix Edition PT15 Drone Frame

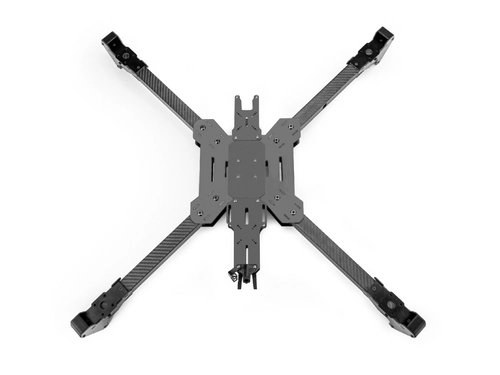

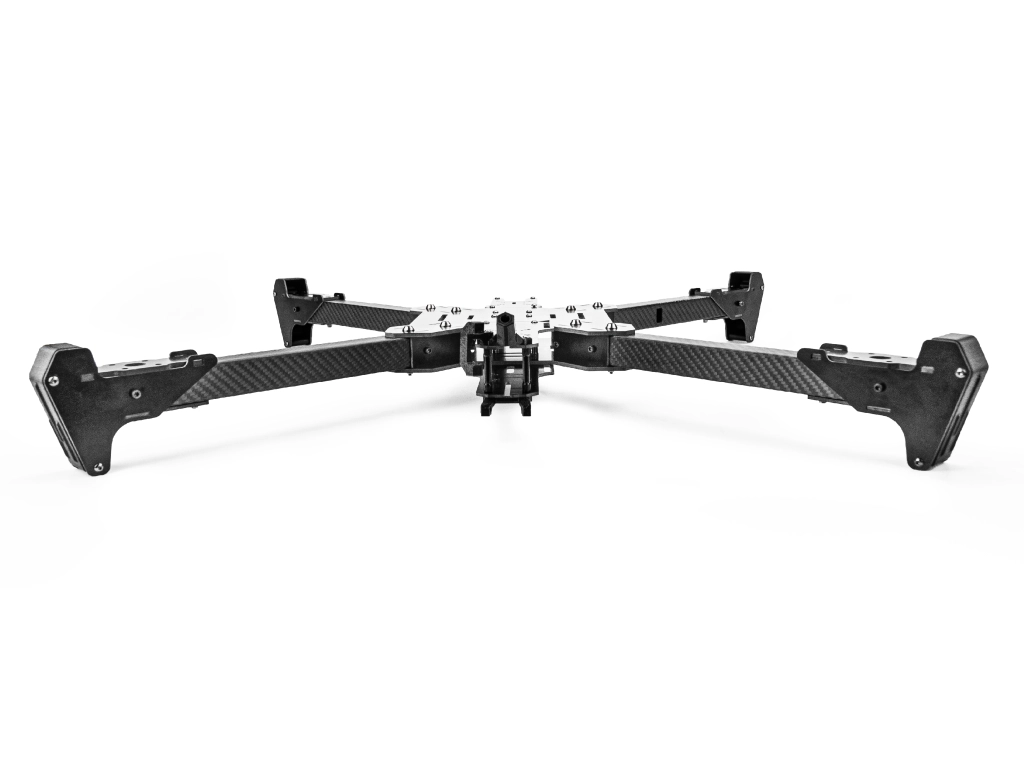

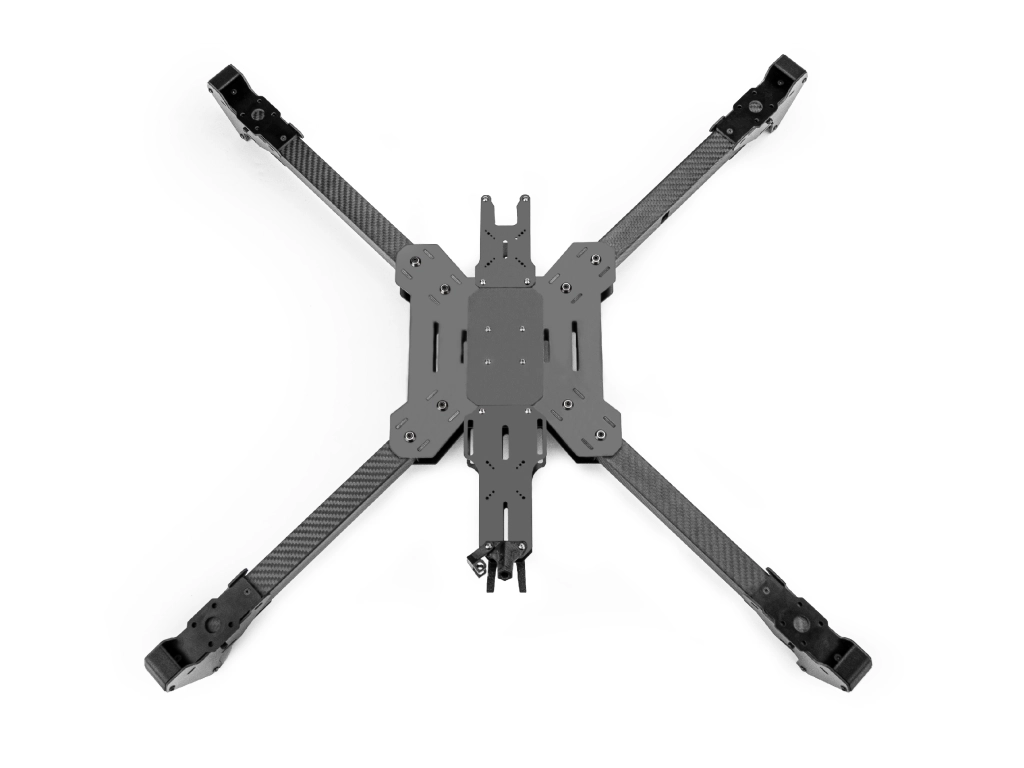

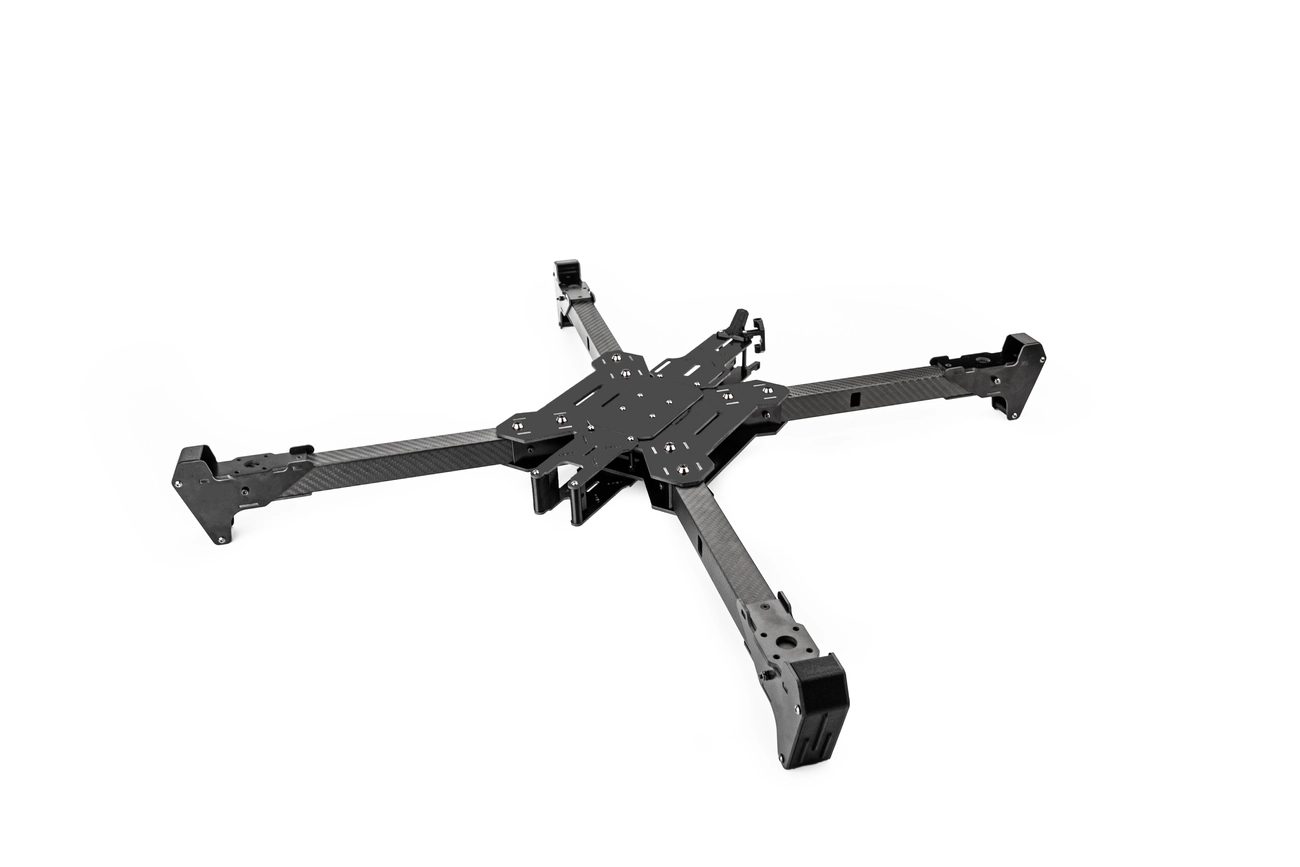

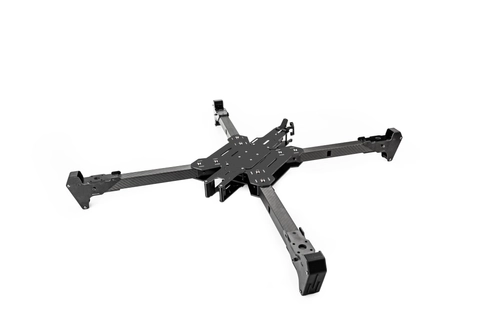

Pilotix PT15 is a 15-inch True X FPV quadcopter frame made of T300 carbon. The wheelbase is 670mm, and the frame weighs 1300g.

The frame has a mounting system compatible with standard flight controller, ESC and VTX configurations. The manufacturer covers it with a 2-year warranty.

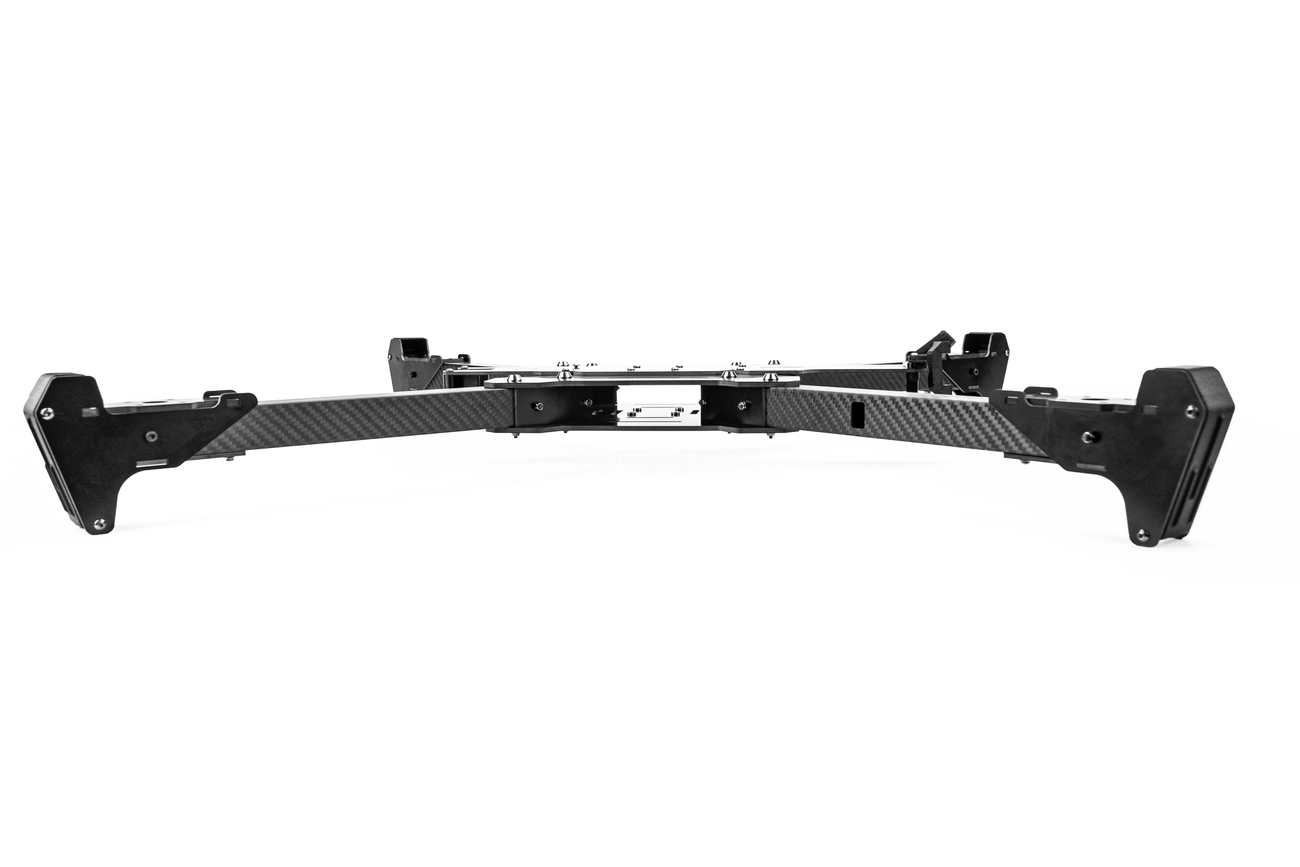

Product image: Pilotix Edition PT15 Drone Frame

Key information

Model
PT15
Frame type
True X quadcopter
Frame size
15"
Frame material
T300 carbon
Wheelbase
670mm
Weight
1300g
Plate dimensions
200 x 200mm
Plate thickness
3,5mm

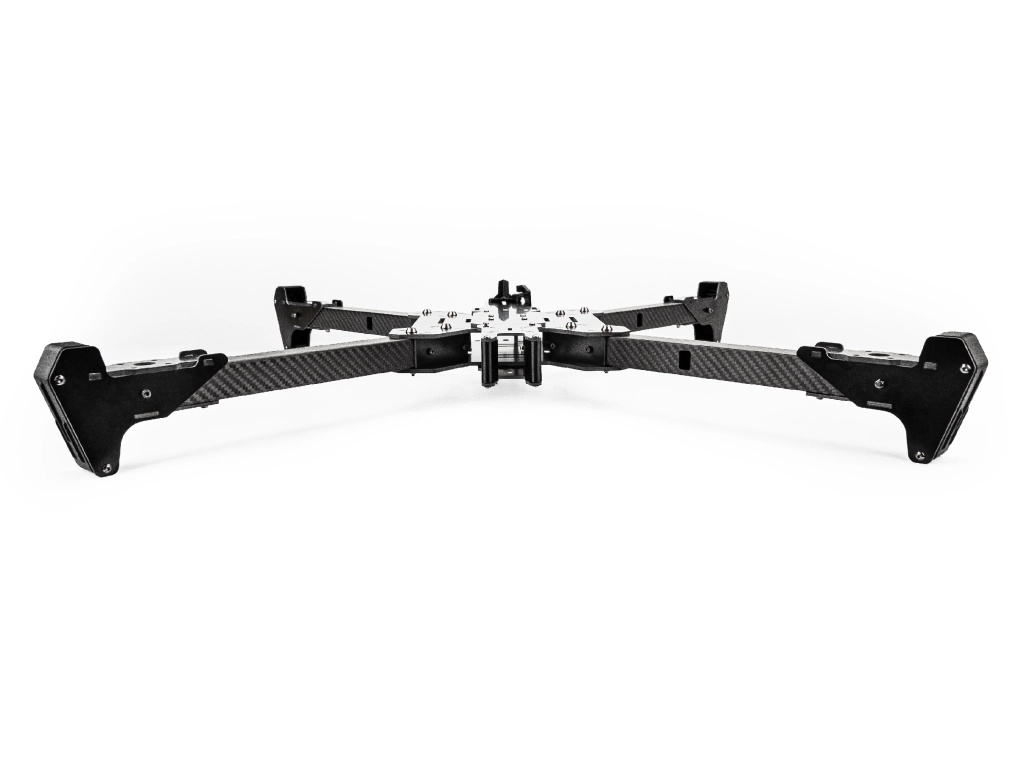

Product image: Pilotix Edition PT15 Drone Frame

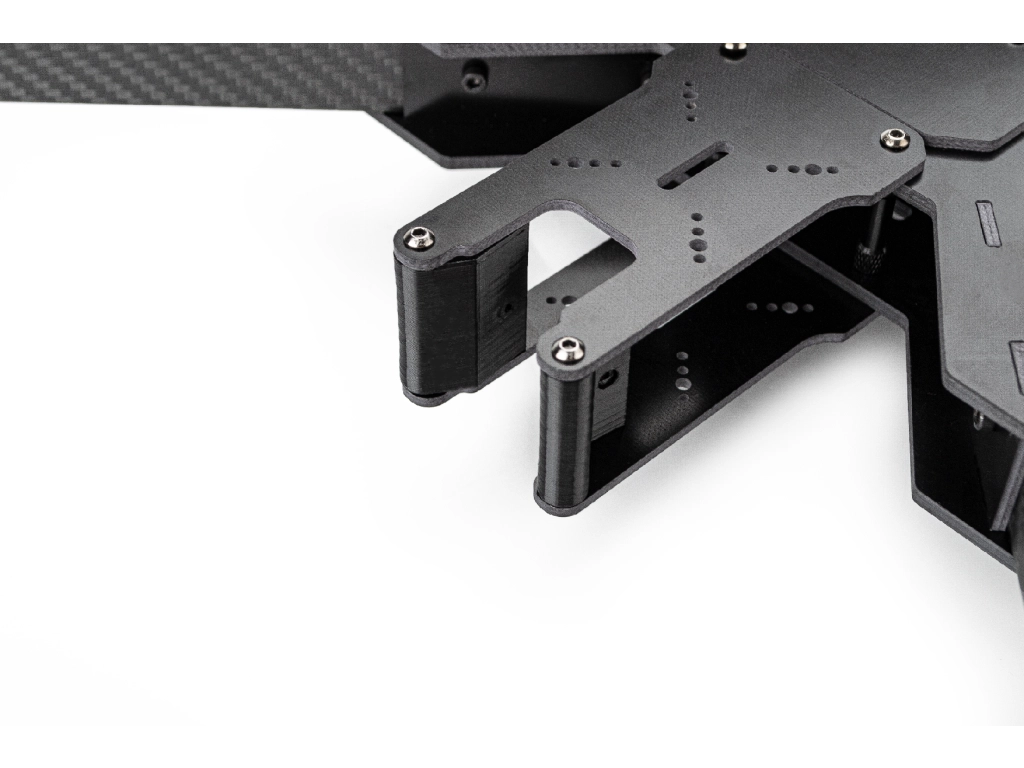

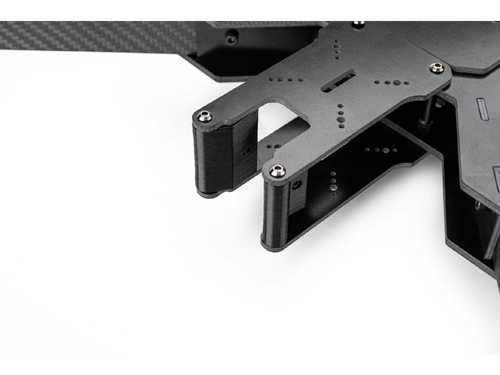

CONSTRUCTION

T300 carbon plates and arms

The top and bottom plates measure 200 x 200mm and are 3,5mm thick. The arms measure 260 x 25 x 25mm.

MOUNTING

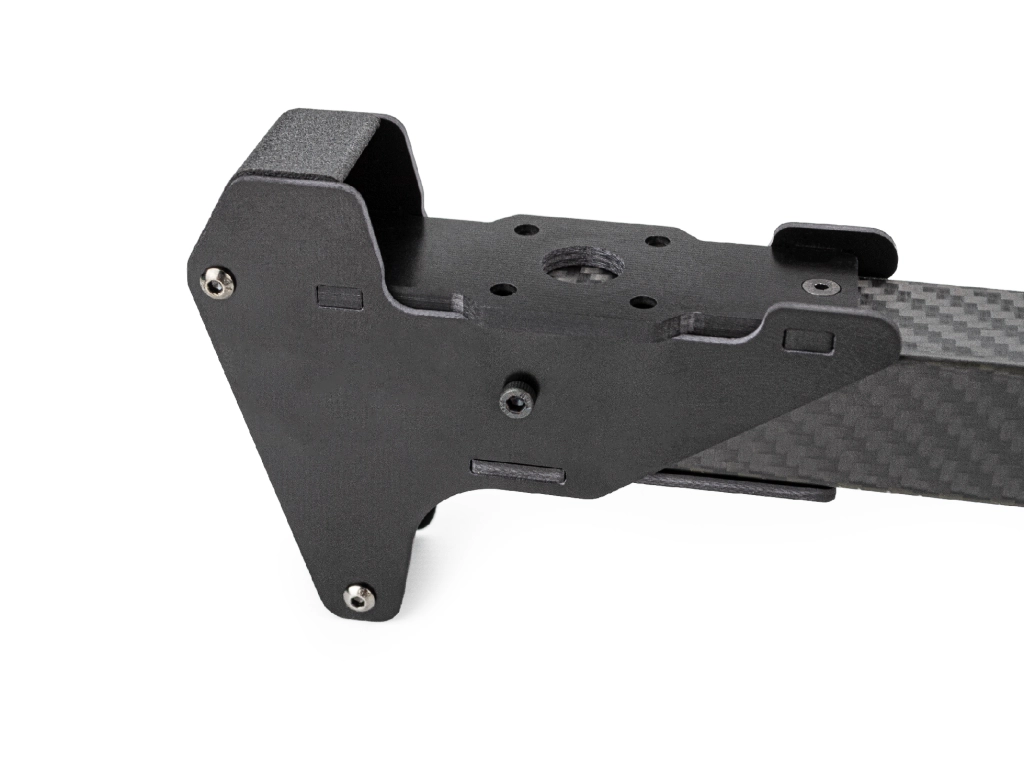

Flight controller and motor mounts

The flight controller and ESC are mounted with a spacing of 30,5 x 30,5 mm (M3), and the motors with a spacing of 19 x 19 mm (M3).

Product image: Pilotix Edition PT15 Drone Frame
Product image: Pilotix Edition PT15 Drone Frame

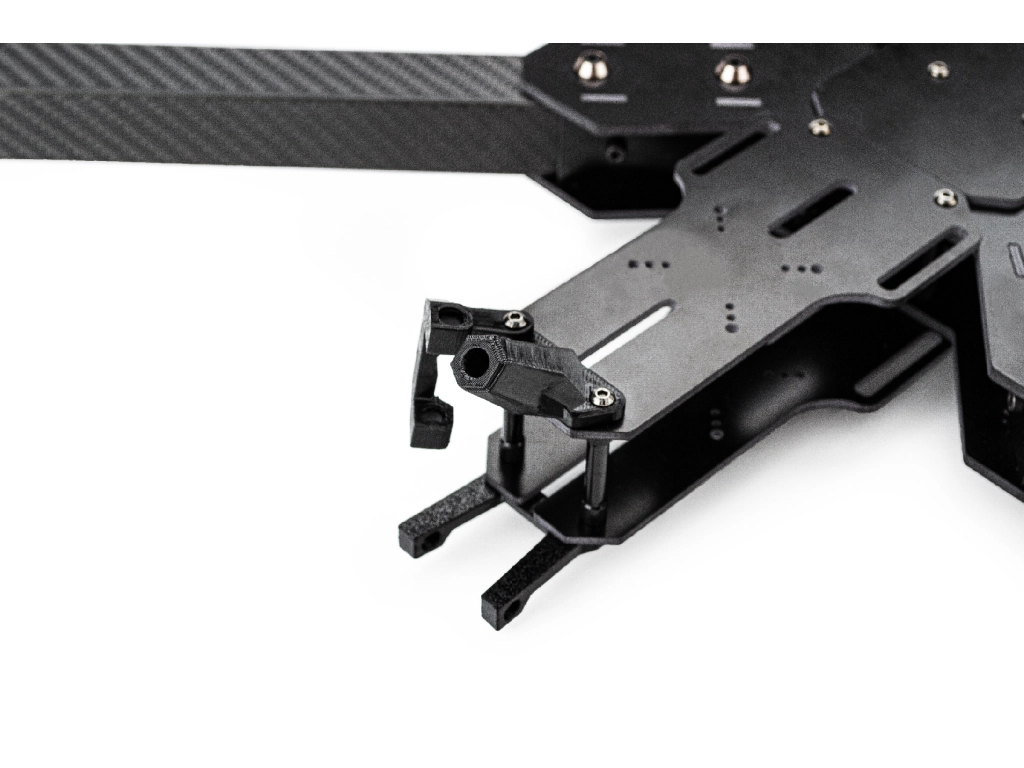

VTX

Three VTX mounting patterns

The VTX mount supports spacing of 30,5x30,5mm, 25x25mm and 20x20mm.

PLATE SPACING

25mm of space between the plates

The mounting distance between the top and middle plates is 25mm.

Product image: Pilotix Edition PT15 Drone Frame

TECHNICAL SPECIFICATIONS

Technical specifications

ModelPT15
SKU5942
EAN5061099735780
Frame typeTrue X quadcopter
Frame size15"
Frame materialT300 carbon
Wheelbase670mm
Weight1300g
Plate dimensions200 x 200mm
Plate thickness3,5mm
Arm dimensions260 x 25 x 25mm
Distance between the top and middle plates25mm
Flight controller and ESC mounting30,5 x 30,5 mm (M3)
VTX mounting30,5 x 30,5 mm, 25 x 25 mm (M2), 20 x 20 mm (M2)
Motor mounting19 x 19 mm (M3)
Warranty2 years
Camera mountingMicro (19 mm)
Motor size4720
Drone typeCinelifter

WHAT'S INCLUDED

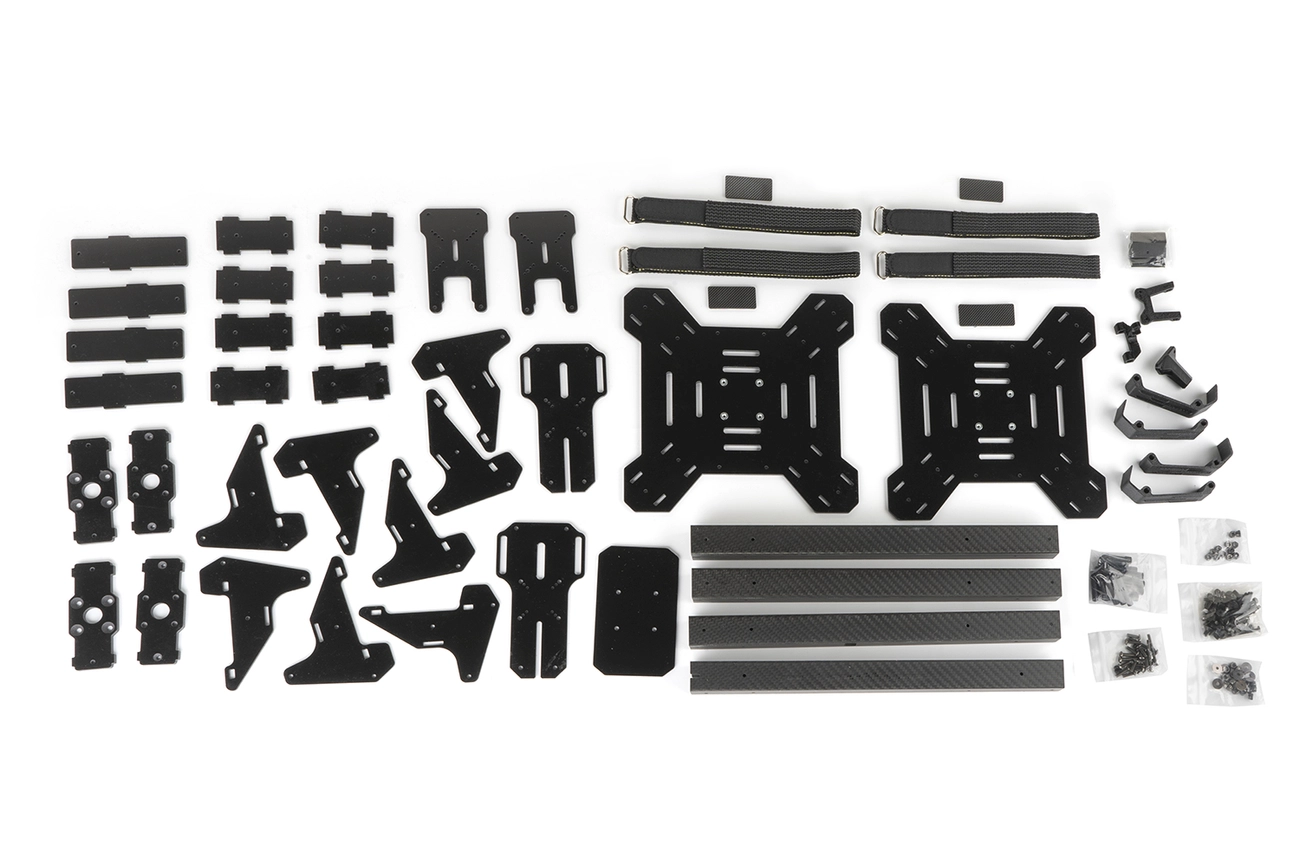

Package contents

  • Frame parts
  • Aluminium standoffs
  • Screws
  • Nuts
  • 3D prints

Specification Pilotix Edition PT15 Drone Frame

Brand
Pilotix
Symbol
5942
Producer code
5061099735780
Warranty
24 months
