Pilotix Edition PT13 Drone Frame

PILOTIX / PT-13 PILOTIX EDITION / DRONE FRAME
Pilotix Edition PT13 Drone Frame

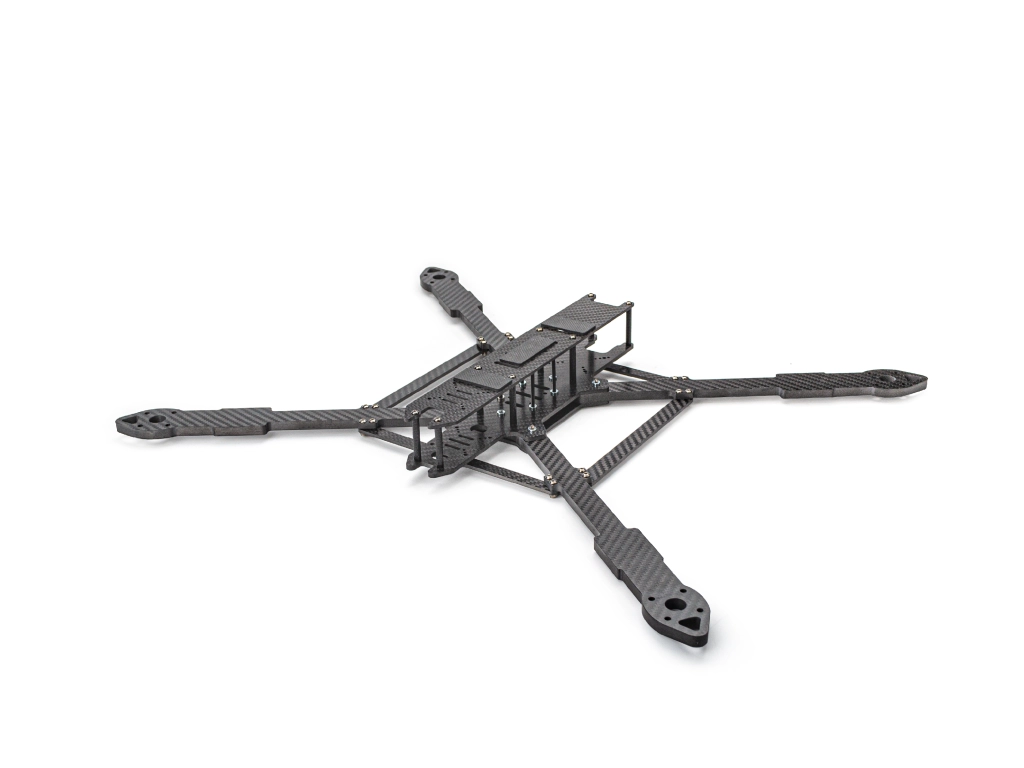

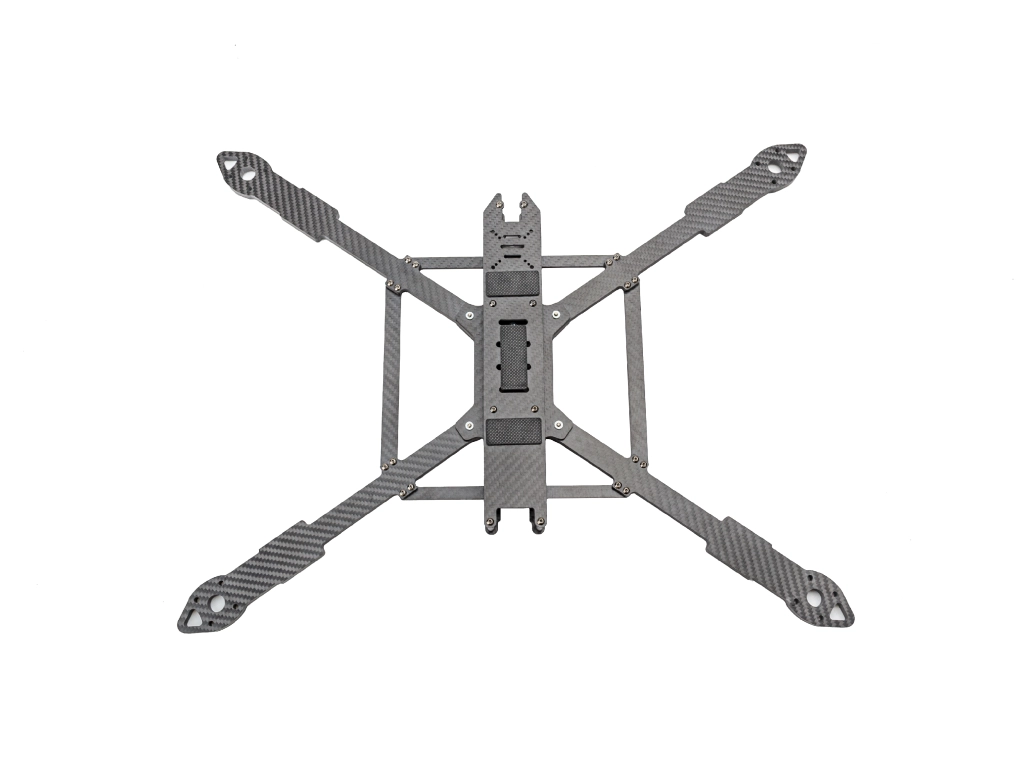

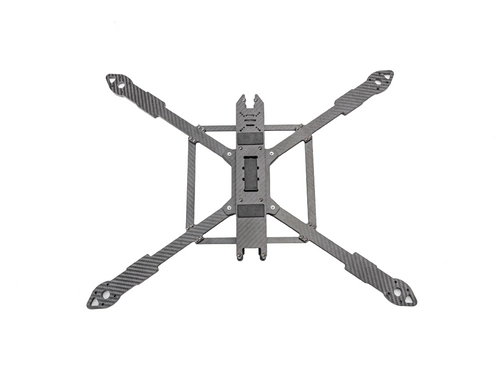

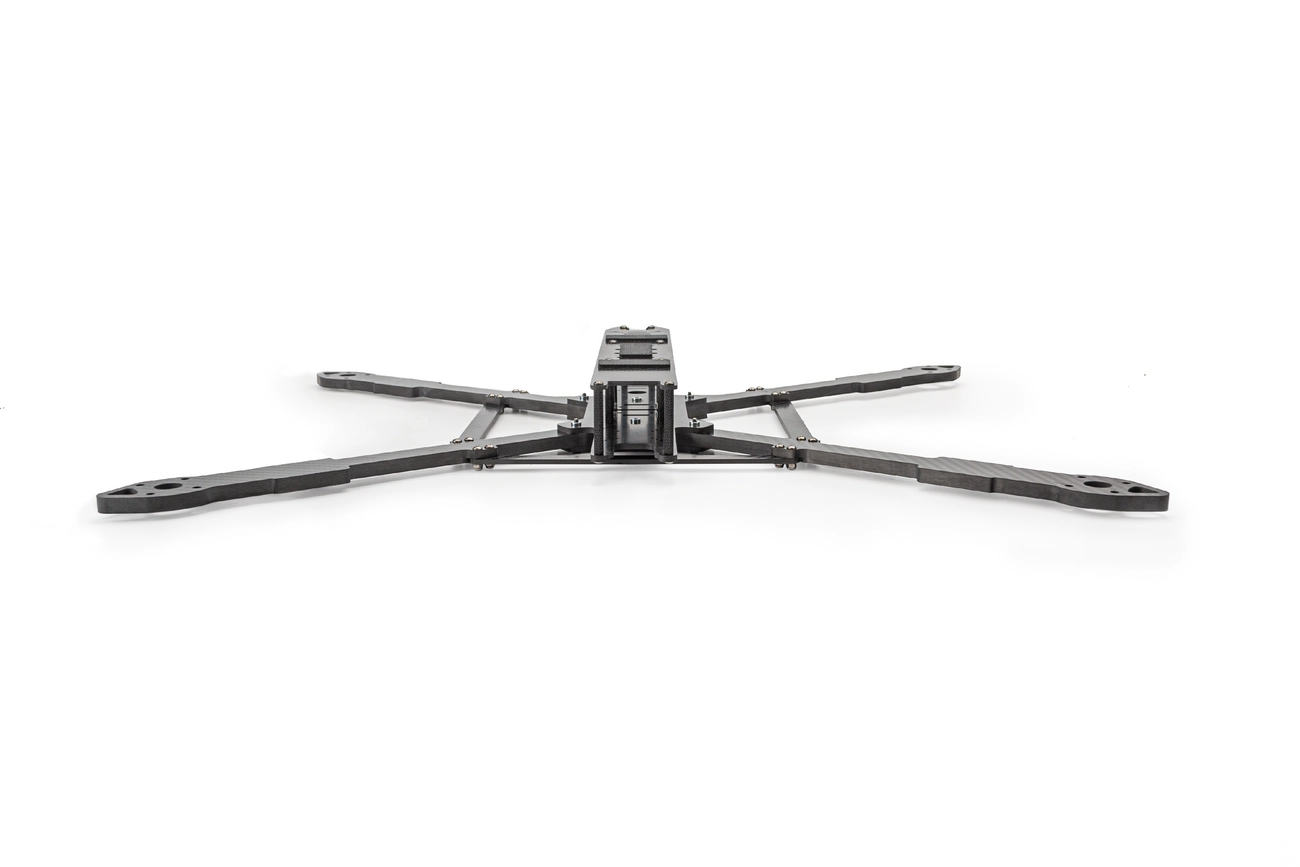

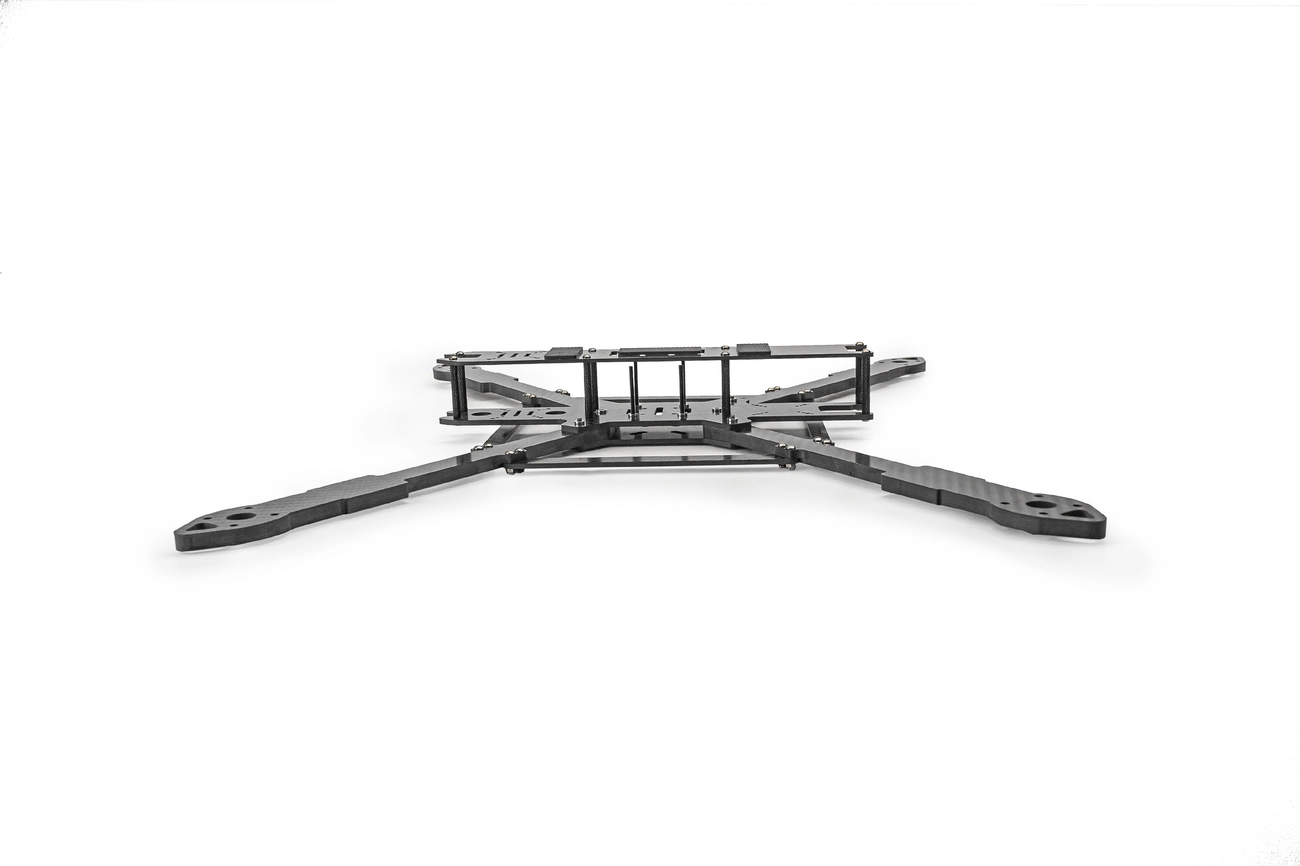

The PT-13 Pilotix Edition frame is designed for missions with heavy payloads. Its durable frame construction reduces unnecessary vibrations and resonance during flight.

Key information

CONSTRUCTION
Dimensions and component mounting

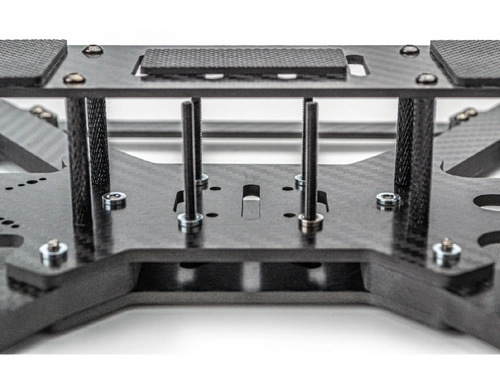

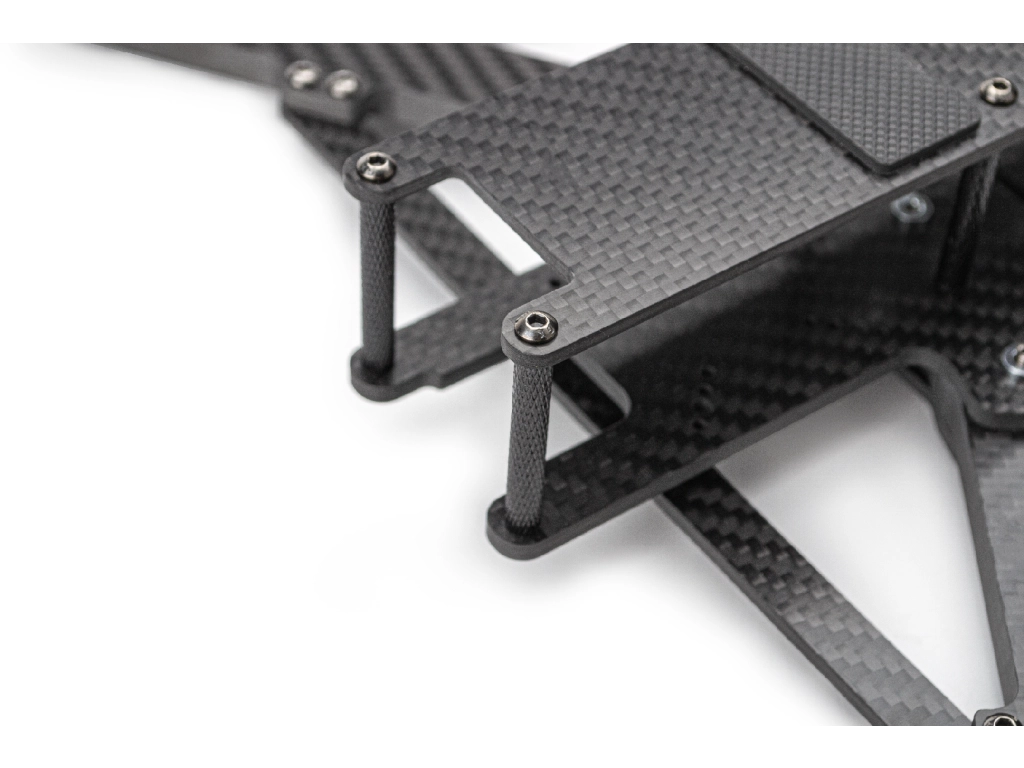

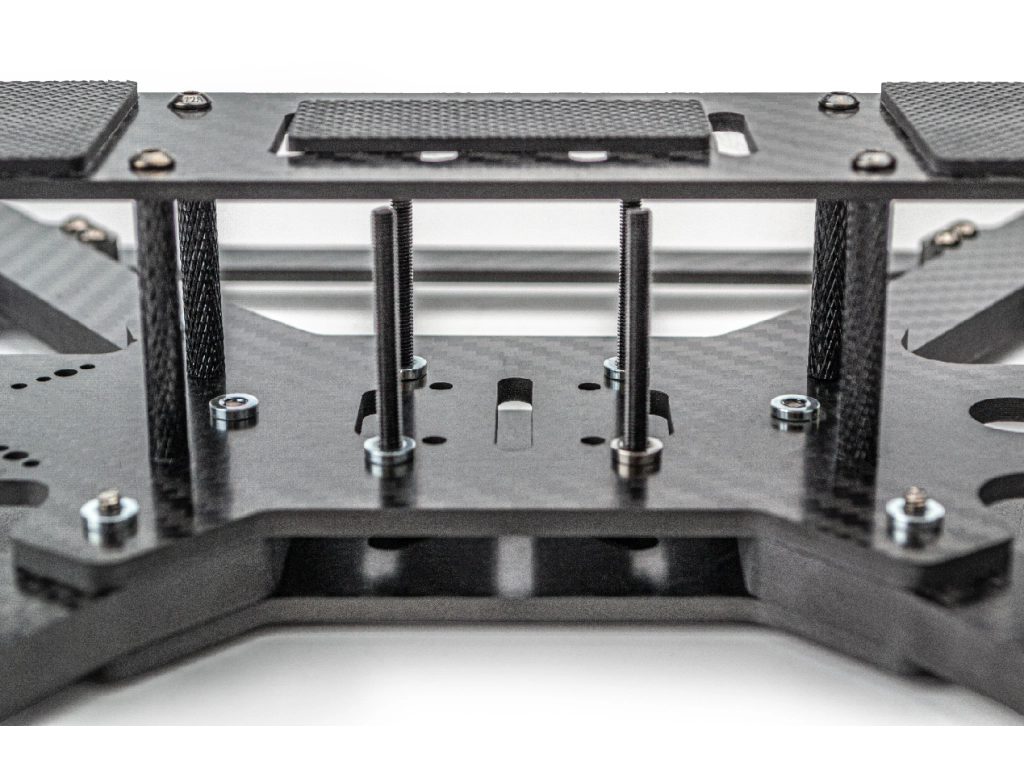

The frame has a 575 mm wheelbase and dimensions of 507x403x52 mm. The arm is 8 mm thick; the top plate is 46 mm wide, 269 mm long and 2,5 mm thick, while the bottom plate is 93 mm wide, 270 mm long and 3,5 mm thick. The FC mounting holes are 30,5 mm, and the camera mount is 19 mm. The frame weighs 0,6 kg.
RECOMMENDED COMPONENTS
Components for building the drone
Recommended components include the F405 V4 ICM42688P / F722 flight controller, AM32 80A 4in1 ESC and 4214-660KV motor. Other components include the Ratel2 Night Version/ Ratel Pro camera, 4.9-6.2Ghz 3W video transmitter, ELRS 915Mhz Diversity receiver, RHCP SMA 160mm antenna, 1309-3 blades propeller and 6S 30000mah Semi Solid Battery.

TECHNICAL SPECIFICATIONS
Technical specifications
| Model | PT-13 Pilotix Edition |
| Wheelbase | 575 mm |
| Dimensions | 507x403x52 mm |
| Arm thickness | 8 mm |
| Top plate width | 46 mm |
| Top plate length | 269 mm |
| Top plate thickness | 2,5 mm |
| Bottom plate width | 93 mm |
| Bottom plate length | 270 mm |
| Bottom plate thickness | 3,5 mm |
| FC mounting holes | 30,5 mm |
| Camera mount | 19 mm |
| Weight | 0,6 kg |
| Recommended flight controller | F405 V4 ICM42688P / F722 |
| Recommended ESC | AM32 80A 4in1 ESC |
| Recommended motor | 4214-660KV |
| Recommended camera | Ratel2 Night Version/ Ratel Pro |
| Recommended video transmitter | 4.9-6.2Ghz 3W |
| Recommended receiver | ELRS 915Mhz Diversity |
| Recommended antenna | RHCP SMA 160mm |
| Recommended propeller | 1309-3 blades |
| Recommended battery | 6S 30000mah Semi Solid Battery |
| EAN | 5061099735797 |
| Manufacturer's symbol | 5944 |

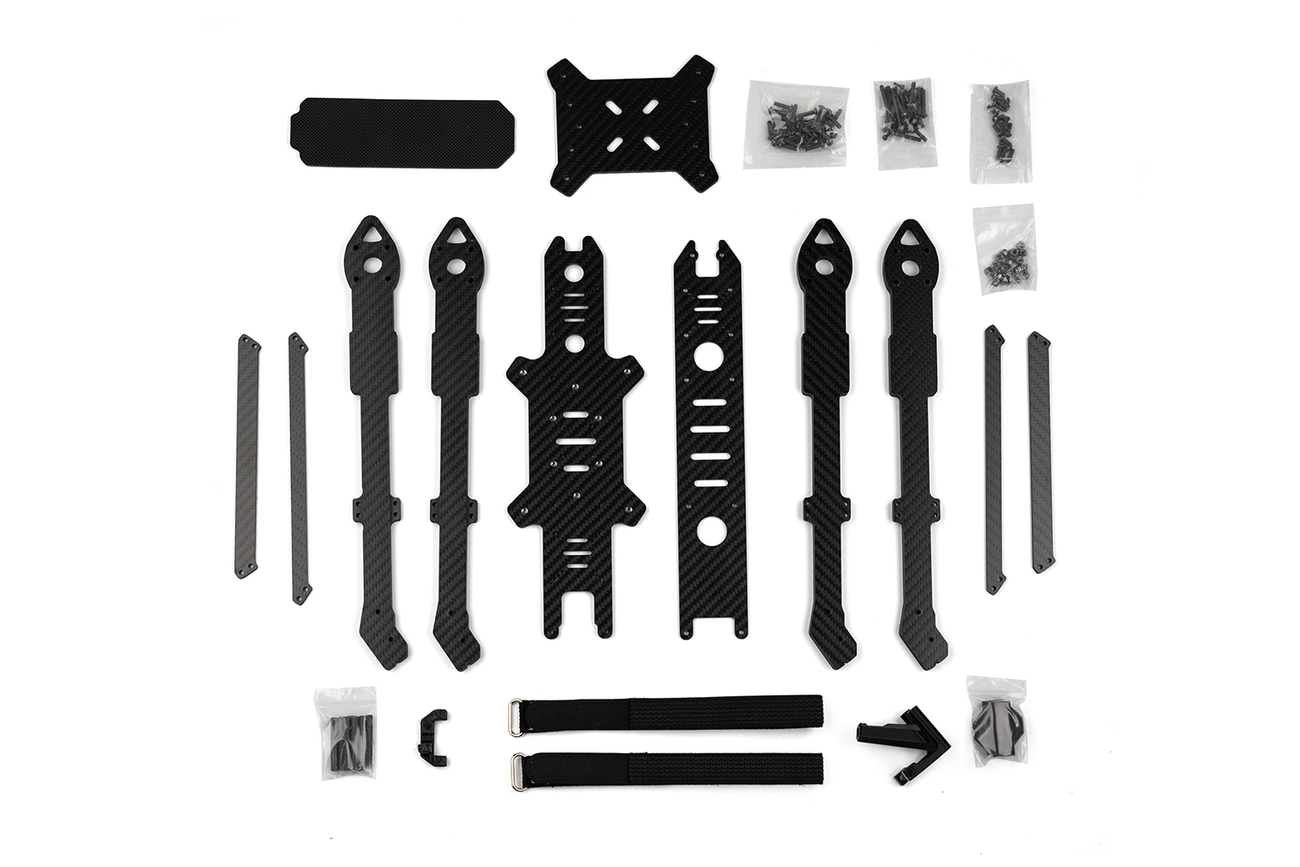

KIT CONTENTS
Package contents
- 1x Pilotix Edition PT-13 frame
- 1x Aluminum standoff set
- 1x Screw set
- 1x Nut set
- 1x Decal set
- 1x PT battery pad
- 2x Battery strap
