Pilotix 4.9–6 GHz Dual RHCP SMA Antenna
15,60 €

PILOTIX / ANTENNA

Pilotix 4,9-6 GHz Dual RHCP SMA Antenna

The Pilotix 4.9–6G Dual RHCP SMA antenna is designed for FPV systems, drones, ground stations, and video transmitters and receivers. It supports the range 4800–6200 MHz, covering the key 5,8 GHz FPV systems.

Polarization RHCP provides better signal penetration and resistance to interference. The ABS housing is durable and lightweight, and the antenna weighs 29 g.

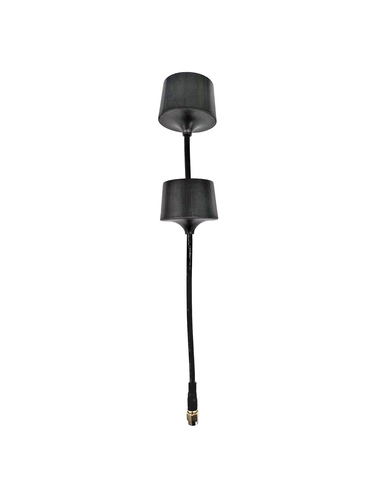

Product photo: Pilotix 4,9-6 GHz Dual RHCP SMA Antenna

Key information

Frequency range
4800–6200 MHz
Polarization
RHCP
Gain
3,5±1 dBi
Impedance
50 ±10 Ω
VSWR
≤2,0
Return loss
≤-10 dB
Connector type
SMA
Antenna base material
ABS

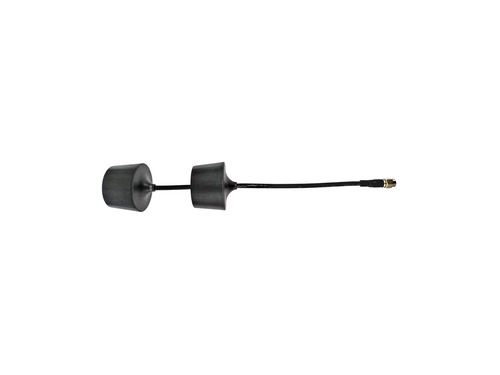

Product photo: Pilotix 4,9-6 GHz Dual RHCP SMA Antenna

SIGNAL PARAMETERS

Low loss and RHCP polarization

The antenna has a gain of 3,5±1 dBi, an impedance of 50 ±10 Ω and RHCP polarization. The VSWR is ≤ 2,0, and the reflection coefficient (Return Loss) is ≤ –10 dB.

DESIGN AND CONNECTOR

ABS housing and SMA connector

The durable ABS housing is suitable for lightweight drones and ground station setups, and the SMA connector allows connection to FPV equipment with this type of connector. The operating temperature ranges from -20℃ to +60℃, and the storage temperature ranges from -20℃ to +70℃.

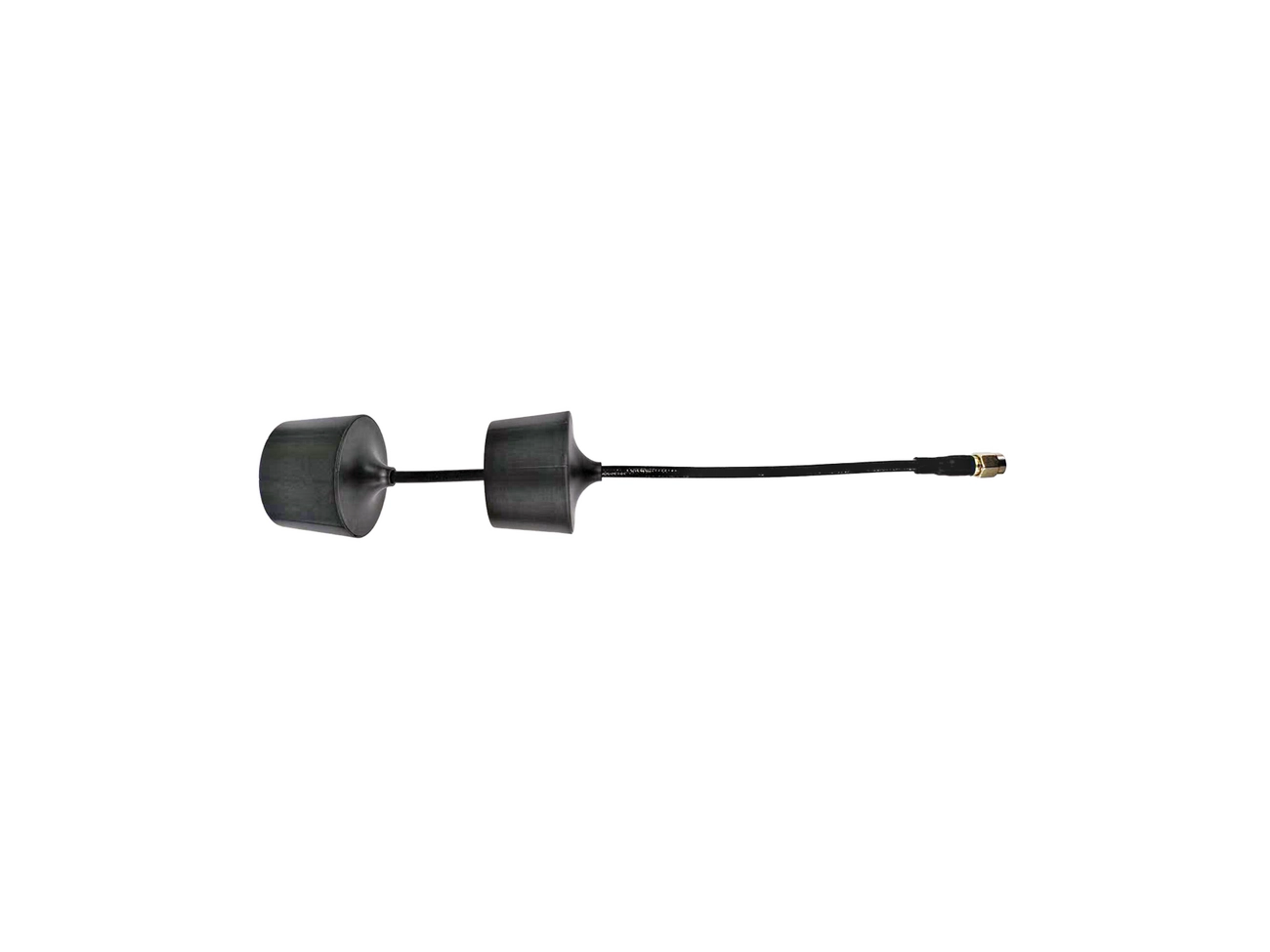

Product photo: Pilotix 4,9-6 GHz Dual RHCP SMA Antenna

TECHNICAL PARAMETERS

Technical specifications

Frequency range4800–6200 MHz
PolarizationRHCP
Gain3,5±1 dBi
Impedance50 ±10 Ω
VSWR≤2,0
Return loss≤-10 dB
Connector typeSMA
Antenna base materialABS
Weight29 g
Operating temperature-20℃-+60℃
Storage temperature-20℃-+70℃
EAN5061099735131
Manufacturer's part number7767

KIT CONTENTS

What's in the box

  • 1x Pilotix 4.9-6G dual RHCP SMA antenna

Specification Pilotix 4.9–6 GHz Dual RHCP SMA Antenna

Brand
Pilotix
Symbol
7767
Producer code
5061099735131
Warranty
24 months
