Pavo Pico brushless whoop frame with HD VTX mount (black)
![Pavo Pico brushless whoop frame with HD VTX mount (black)](https://static3.megadron.pl/hpeciai/181e41e5a6ff699c1b3e0980ed847e1c/pol_il_29860-29860.webp)
Pavo Pico brushless whoop frame with HD VTX mount (black)

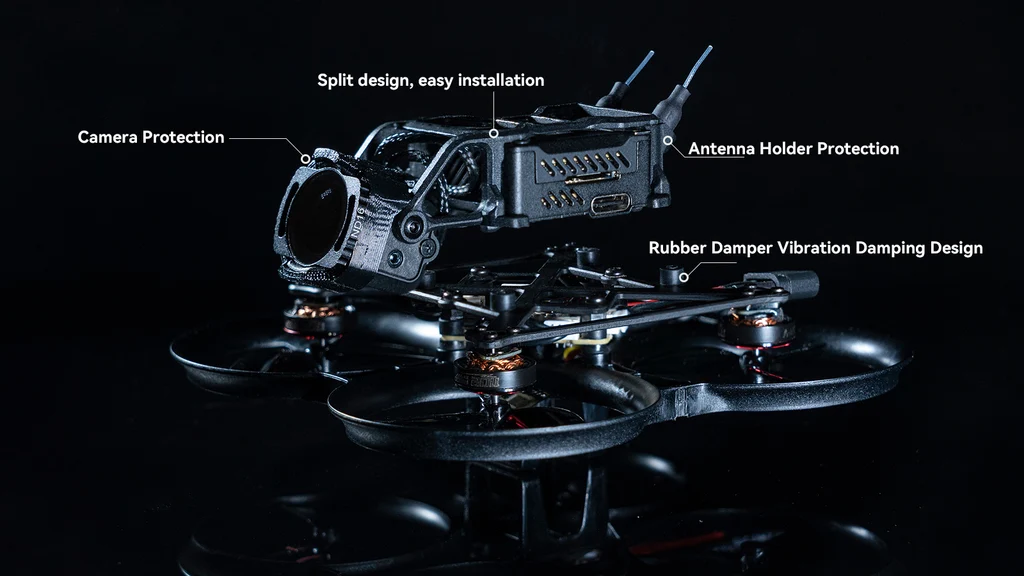

We used ultralight PP material to make the HD VTX mounting bracket, increasing its strength. The antenna mounting socket and frame have been fused together to reduce the risk of damage, and the camera's installation height has been lowered with a protective printed part to limit its moving angle to 30°. In addition, the O3 filter can be used to protect the lens and improve image quality. We have introduced a unique rubber shock absorber damping design, used with GyroFlow stabilization software, which greatly enhances safety and provides a smooth HD image. When tightening die-cast screws, DO NOT over-tighten them to leave room for the rubber shock absorbers to absorb vibrations. This may cause a Jello effect in the video footage.

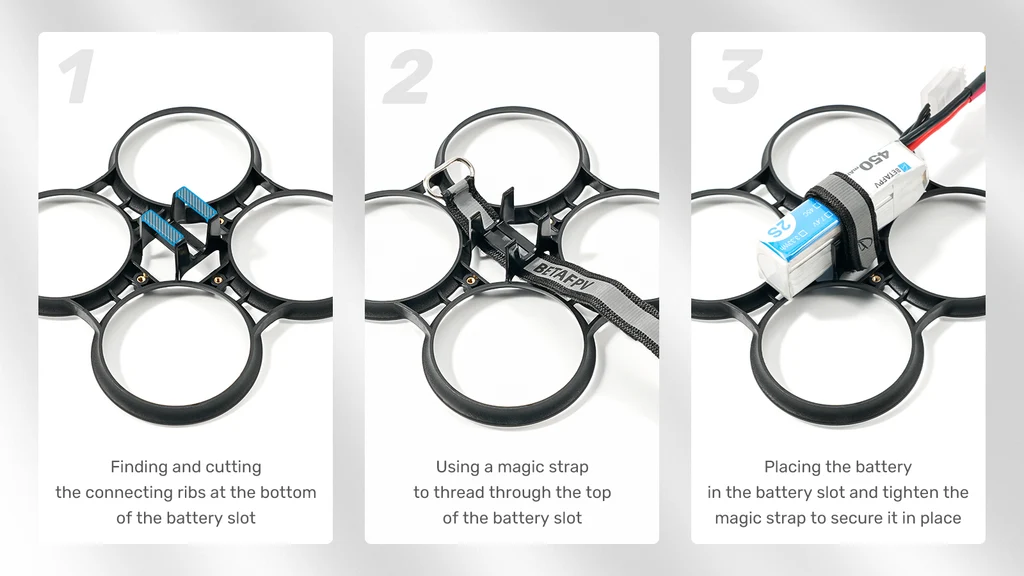

Pilots can further customize their cinewhoop with DIY options such as battery strips or printable components, allowing compatibility with different battery sizes. This allows pilots to customize and upgrade their drone to meet their specific requirements and preferences. The steps are as follows:
Specification
- Item: Pavo Pico brushless whoop frame
- Material: PA12
- Wheelbase: 80.8 mm
- Battery slot size: 16 mm * 12.7 mm
- Distance between camera mounts: 19 mm/20 mm
- Color: Black
- Weight: 13.80 g/11.62 g
- Motor mounting hole position: 3-M1.4-φ6.6mm
- FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3
Included:
- 1 * Pavo Pico - top plate
- 1 * Pavo Pico Whoop Canal
- 1 * FC frame screw set
- 1 * HD VTX bracket screw set
- 1 * 20*20 HD VTX mounting plate
- 2 * O3 HD VTX mounting bracket
- 2 * O3 HD VTX antenna mounting base
- 2 * 5.8g Copper tube antenna
