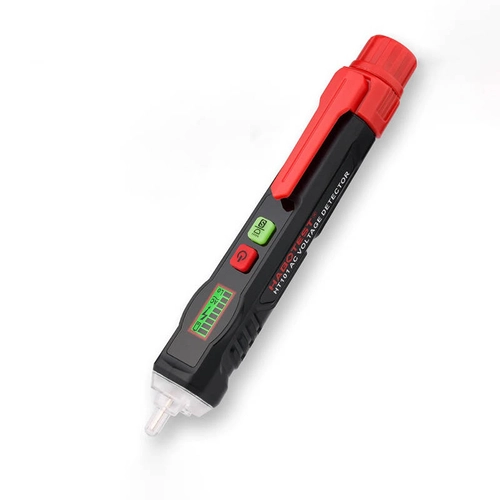

Non-contact voltage and phase tester Habotest HT101
Habotest non-contact voltage (NCV) and phase detector ensures precise measurement and safety of use. Equipped with an LCD display and a sensitivity adjustment button - it is very convenient to use. Featurescheckpointsbreak,aalsodetectactiveandinactivecables.After 3 minutes of inactivity turns off automatically. The built-in LED flashlight will make your work easier. The device is powered by 2 AAA 1.5 V batteries.
Accurate measurement
HT101 enables precise, non-contact measurement. Its sensitivity can be adjusted using the built-in button. The voltage measures in the range of 12-1000V and 48~1000V. The detector also detects breakpoints, so it will work in many applications.
Active and inactive cable detection function
The detector intelligentlydetectsactiveandinactivecables. Itis also equipped with a dual alarm - visual and audible. Simply touch the device to the surface of the cord. The green color of the display and the slow beep means cable inactive.
Designed with user comfort and safety in mind
The clear LCD display will provide you with the most important information. The HT101 also has a built-in LED flashlight. Thanks to it, you can use the device even in dark rooms. You also don't have to worry about the battery draining too quickly if you forget to turn off the detector - after 3 minutes of inactivity it will automatically stop working. In addition, the indicator will notify you when the battery level is low.
Small, handy, easy to transport
The device is compact, portable and convenient to use. Buttons located in easily accessible places allow you to quickly and easily turn the detector on, off and adjust the sensitivity. The built-in clip allows you to attach the HT101 to, for example, clothes, bags or backpacks - its possible transport will therefore be extremely simple.
Specification
| Producer | habotest | |
|---|---|---|
| Model | HT101 | HT100P |
| Voltage detection range | High Sensitivity: AC 12-1000V; Low Sensitivity: AC 48-1000V | High Sensitivity: AC 12-1000V; Low Sensitivity: AC 48-1000V |
| Sampler shape | Round | Elongate |
| Frequency | 50/60Hz | 50/60Hz |
| Alarm type | Sound and light | Sound and light |
| Non-contact phase detection | Yes | Yes |
| Backlight | Double, red and green | Double, red and green |
| Cable activity testing | Yes | Yes |
| Signal intensity display | 4-level bar chart | 4-level bar chart |
| A way to indicate signal intensity | Sound: slow to fast; Backlight: green to red; Bar chart: low to high | Sound: slow to fast; Backlight: green to red; Bar chart: low to high |
| Flashlight | Yes | Yes |
| Automatic shutdown | Yes, after 3 minutes of inactivity | Yes, after 5 minutes of inactivity |
| Low battery indicator | Yes | Yes |
| Power | 2x AAA 1.5V battery | 2x AAA 1.5V battery (included) |
| Libra | Approx. 35g | Approx. 32 hours |
| Dimensions | 157 x 23 x 18.8mm | 157 x 27 x 23mm |
| Security | EN61010-1,-2-030; EN61326-1, CAT III 1000V | EN61010-1,-2-030; EN61326-1, CAT III 1000V |
Specification Non-contact voltage and phase tester Habotest HT101
