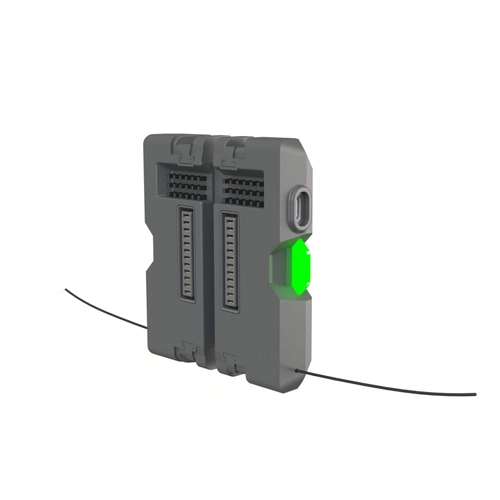

MOC 2511 Kronos external flight termination system for Inspire 3

MOC 2511 Kronos external flight termination system for Inspire 3

FLIGHT TERMINATION SYSTEM (FTS)

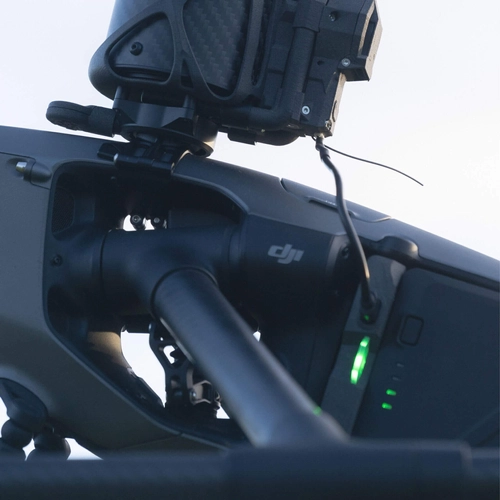

New Kronos M350 plug & play system is designed to allow drone pilots to maximize their focus on their missions. The system can be installed in less than 2 minutes in the space between the drone and the battery. Compatibility with MOC M2511 reduces risks to a minimum, ensuring flight safety.

KEY FEATURES:

• Klick system for manual startup
• Unlimited autonomy
• System developed and tested in accordance with EASA guidelines
• Ultralight design

CONNECTED TO THE PARACHUTE SYSTEM

Our experts will connect the FTS system to the parachute system, and test its efficiency before shipment. When one of the systems is activated, the other will also activate.

PLUG AND PLAY MODULE

FTS systems developed by Dronavia are designed for ergonomic use. The first installation takes less than 10 minutes, and each subsequent installation takes several seconds.

COMPATIBILITY WITH EASA MOC2511

Dronavia is the first manufacturer to deliver MoC Light-UAS compliant system.25 published by EASA, which is necessary for the development of SORA. This essential compliance in the development of SORA (Special Operations Risk Assessment) provides our customers with the best risk management and security measures for their special operations while staying ahead of future European standards. MOC 2511 is sufficient to meet the requirements of Part 9.

DESIGNATING AN AREA WITH GEOCAGING

Zephyr CC & ScaleFlyt Geocaging FTS module allows you to create virtual boundaries of your drone's flight area so you can perform missions in complete peace of mind. Thanks to the compatibility between Geocaging and our FTS systems, if the drone leaves the designated flight area, it will stop the drone by automatically shutting down the engine, ensuring that the drone remains within the boundaries you have set beforehand.

To integrate a geocaching solution into your accessory kit, simply connect the module to your existing FTS system. After pairing, place it on the drone, prepare the flight area, and then transfer the data to the module using a USB dongle.

LONG RANGE, SECURE TRANSMISSION

The long-range communication system between the trigger pilot and the parachute/FTS is based on advanced technology and LoRa modulation. Its range can reach several kilometers under optimal conditions, and the long-range option allows it to exceed 10 kilometers.

The communication protocol is based on 869 MHz frequencies, which are authorization-free (433 and 915 MHz options available). 128-bit encryption ensures that data will not be intercepted, and the user will be warned if communication is disrupted.

SPECIFICATIONS

• Weight: 78 g
• Time of autonomous functionality: Unlimited
• Range: 2 km
• System startup time: 0,27 s
• Dimensions: 7.5 x 9 x 2 cm
• Operating temperature range: -25 ℃ - 40 ℃

Includes:

• Klick RC Trigger
• Micro-USB cable
• Battery pack converter
• Attachment clips to the battery

Included:

• FTS compliant with MOC 2511
• Fixing the system
• Klick RC Trigger
• Micro-USB cable
• Battery pack converter
• Attachment clips to the battery
• Technical documentation for the ULC
• Installation instructions
