C03 FPV micro camera
20,40 €

BETAFPV C03 FPV micro camera – 1200 TVL, 160°

Wide FPV view in a lightweight camera

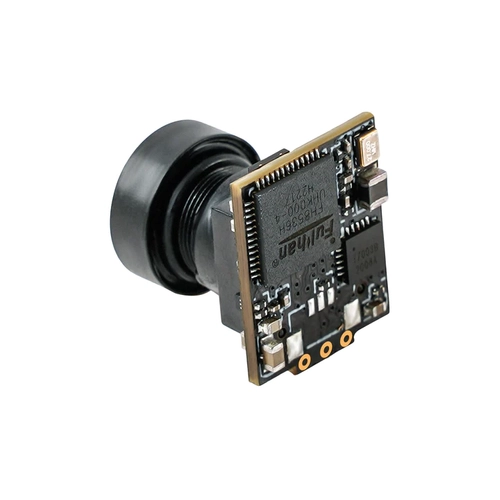

The BETAFPV C03 is a 1.45 g analog camera for compact FPV drones and Micro Whoops. Its 1/3-inch CMOS sensor, 2.1 mm lens and 160° field of view provide a wide live image at 1200 TVL horizontal resolution. Global WDR improves visibility in uneven lighting.

Product image: BETAFPV C03 FPV micro camera – 1200 TVL, 160°
Product image: BETAFPV C03 FPV micro camera – 1200 TVL, 160°

Quick connection and adjustable mounting

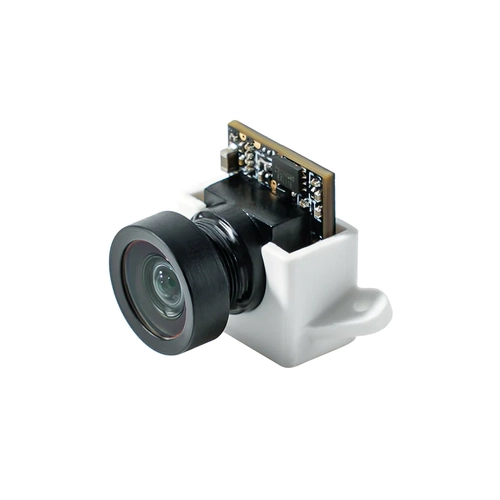

A JST 0.8 mm plug supports simple installation with compatible BETAFPV equipment, including the M03 5.8G VTX and selected flight controllers. Included ABS canopy and 20°/30° camera mounts help adapt the angle. Check connector and 3–5.5 V supply compatibility before installation.

Product image: BETAFPV C03 FPV micro camera – 1200 TVL, 160°

Technical specifications

ManufacturerBETAFPV
ModelC03 FPV Micro Camera
Camera typeAnalog FPV camera
Image sensor1/3-inch CMOS
Horizontal resolution1200 TVL
Video systemNTSC
Aspect ratio4:3
Lens2,1 mm (M7)
Field of view (FOV)160°
Wide dynamic rangeGlobal WDR / automatic D-WDR
Signal-to-noise ratioOver 50 dB
Electronic shutterAutomatic
Automatic gain control (AGC)Automatic
Minimum illumination0,01 lx (F1.2)
Image modeColor
Supply voltageDC 3–5,5 V
Current consumption100 mA at 5 V / 120 mA at 3.3 V
ConnectorJST 0,8 mm
Canopy materialABS
Dimensions according to product diagram11 × 14,1 × 13,5 mm
Net weight1,45 g
BETAFPV product code (SKU)01060022

Package contents

  • BETAFPV C03 FPV micro camera – 1 pc.
  • BETAFPV micro canopy – 1 pc.
  • C02 20° camera mount – 1 pc.
  • C03 20° camera mount – 1 pc.
  • C03 30° camera mount – 1 pc.
  • Decorative elements – 3 pcs.
  • M1.4 × 5 mm screws (silver) – 4 pcs.
  • M1.4 × 4 mm screws (black) – 6 pcs.
